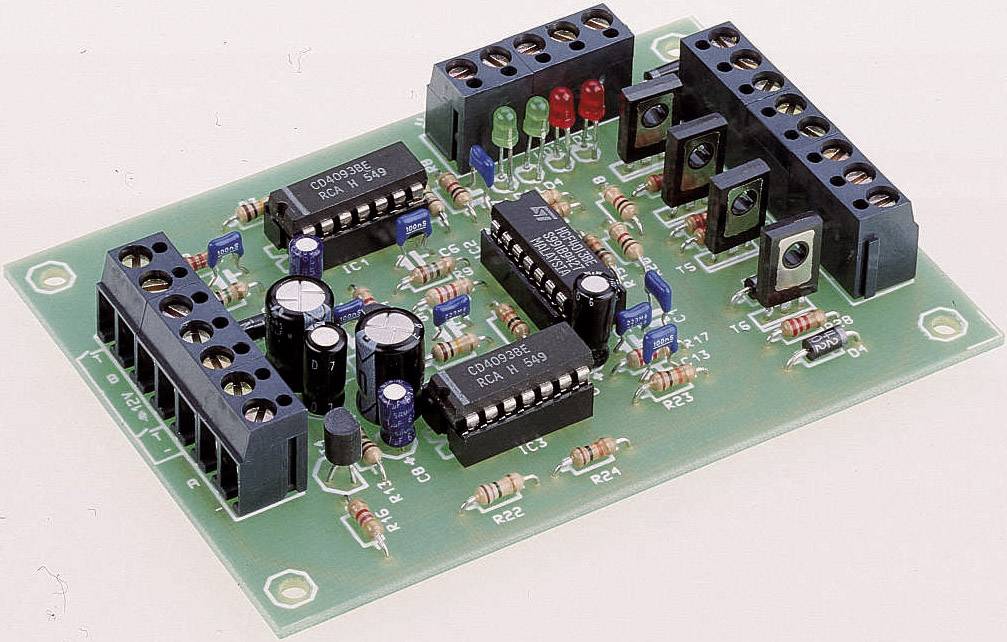

H-Tronic 4016138197594 Single button point control Assembly kit
EAN:
Part number:
Item no:
Total (€ 21.99 / piece)
€ 21.99
incl. VAT
14-day return policy included
Technical specifications
- Product type
Single button point control
- Type
Assembly kit
- Output current
3 A
- Operating voltage
12-20 V DC
- Length
100 mm
- Width
70 mm
- Dim
(L x W) 100 mm x 70 mm
- Age category
15 years and over
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 197599 H-Tronic 4016138197594 Single button point control Assembly kit
Description
With this controller, you can switch the points and any two coil relay with a single button or a reed switch. Since the switching pulse is limited in duration, magnetic drives can be used with and without end stop. The drives capture a specific basic position with switching on. The display of point adjustments (feedback) is done via LEDs. Two points can be controlled with this module.
Features
- Current consumption approx. 6 mA
- Switch voltage approximately 12 - 20 V DC
- Max. Switching current 3 A
- Kit with detailed assembly instructions
Hints
Not recommended for Fleischmann N-drive
