HARTING 09042326832 Edge connector (sockets) Total number of pins 32 No. of rows 2 1 pc(s)

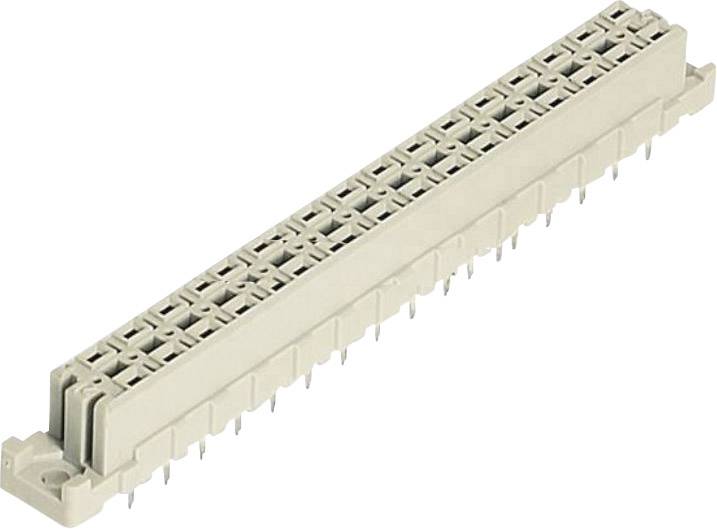

A rectangular, beige electrical connector with multiple ports is visible, used for connecting electronic components.
Image similar
Product type
Edge connector (sockets)
Total no. of pins
32
Connector type
Edge connector, straight
CS
5.08 mm
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Tue 3 Nov
33 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 16.99 / piece)
€ 16.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

HARTING 09042326832 Edge connector (sockets) Total number of pins 32 No. of rows 2 1 pc(s)

  • No. of rows 2
  • Content 1 pc(s)

Our service for you

Technical specifications

Product type

Edge connector (sockets)

Total no. of pins

32

Connector type

Edge connector, straight

Features

+ sleeve

Connector orientation

Perpendicular (to the PCB)

No. of rows

2

CS

5.08 mm

Nominal current

6 A

Nominal current - rounded value

6 A

DIN standard

D

Pins per row

16

Connection

Print

Factory colour

Grey

Case material

PA

Manufacturer part #

09042326832

Content

1 pc(s)

Contact material

Copper alloy

Width

94.9 mm

Height

11.6 mm

Length

10.5 mm

Max. temperature

+125 °C

Min. temperature

-55 °C

Type

09 04 232 6832

Dim

(L x W x H) 10.5 x 94.9 x 11.6 mm

Configuration

(a+c)

Nominal voltage

1550 V

Certification marks

DIN 41612

Number of pins

32

RoHS-compliant

Yes

Contact surface

Gold plated

Connection

Soldering
