Hirschmann Test & Measurement AK 2 B 2540 I ge Safety terminal 4 mm jack connector CAT II 1000 V Yellow
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 6.29
5
6% = € 0.38
€ 5.91
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 6.29 / piece)
€ 8.39
-25 %
€ 6.29
plus VAT.
14-day return policy included
Highlights & Details
safety crocodile clip, clamping range up to 30 mm, 1000 V CAT II
- safety crocodile clip with 4 mm socket, max. clamping of 30 mm, 1000 V / CAT II, 32 A
Technical specifications
- Product type
Safety terminal
- Connection
4 mm jack connector
- Max. clamping range
30 mm
- Factory colour
Yellow
- Nominal voltage
1000 V
- Reading category
CAT II 1000 V
- Length
85 mm
- Max. resistance
10 mΩ
- Content
1 pc(s)
- Nominal current
32 A
- Width
15 mm
- Height
39 mm
- Temperature range
-30 °C to +90 °C °C
- Type
AK 2 B 2540 I ge
- Diameter/connectortype
4 mm safety system
- Nominal current (details)
32 A
- Reading category
CAT II
Documents & Downloads
Datasheet
Datasheet 679257 Hirschmann Test & Measurement AK 2 B 2540 I ge Safety terminal 4 mm jack connector CAT II 1000 V Yellow
User & Safety Instructions
User & Safety Instructions 679257 Hirschmann Test & Measurement AK 2 B 2540 I ge Safety terminal 4 mm jack connector CAT II 1000 V Yellow
Description

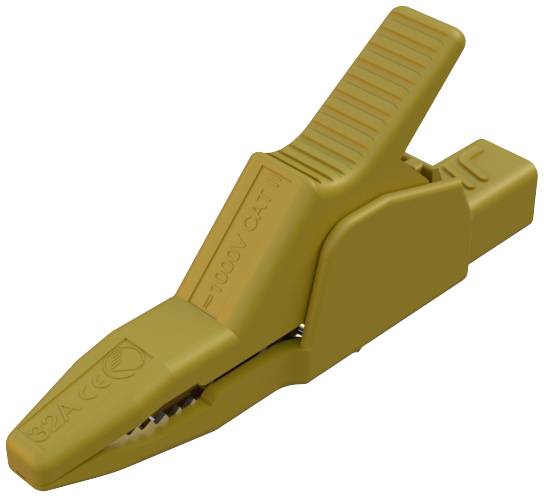

Contact-protected, high-strength, wide-opening alligator clip.
Clamping range up to 30mm bolt diameter.
Solid wire clip, U-shaped and fine wire section.
Nickel-plated brass connecting socket, pluggable with 4 mm safety measuring leads.
Clamping range up to 30mm bolt diameter.
Solid wire clip, U-shaped and fine wire section.
Nickel-plated brass connecting socket, pluggable with 4 mm safety measuring leads.
Features
- Solid wire clip, U-shaped, fine wire face. CE certified.
Scope of delivery
- 1 x safety crocodile clip
