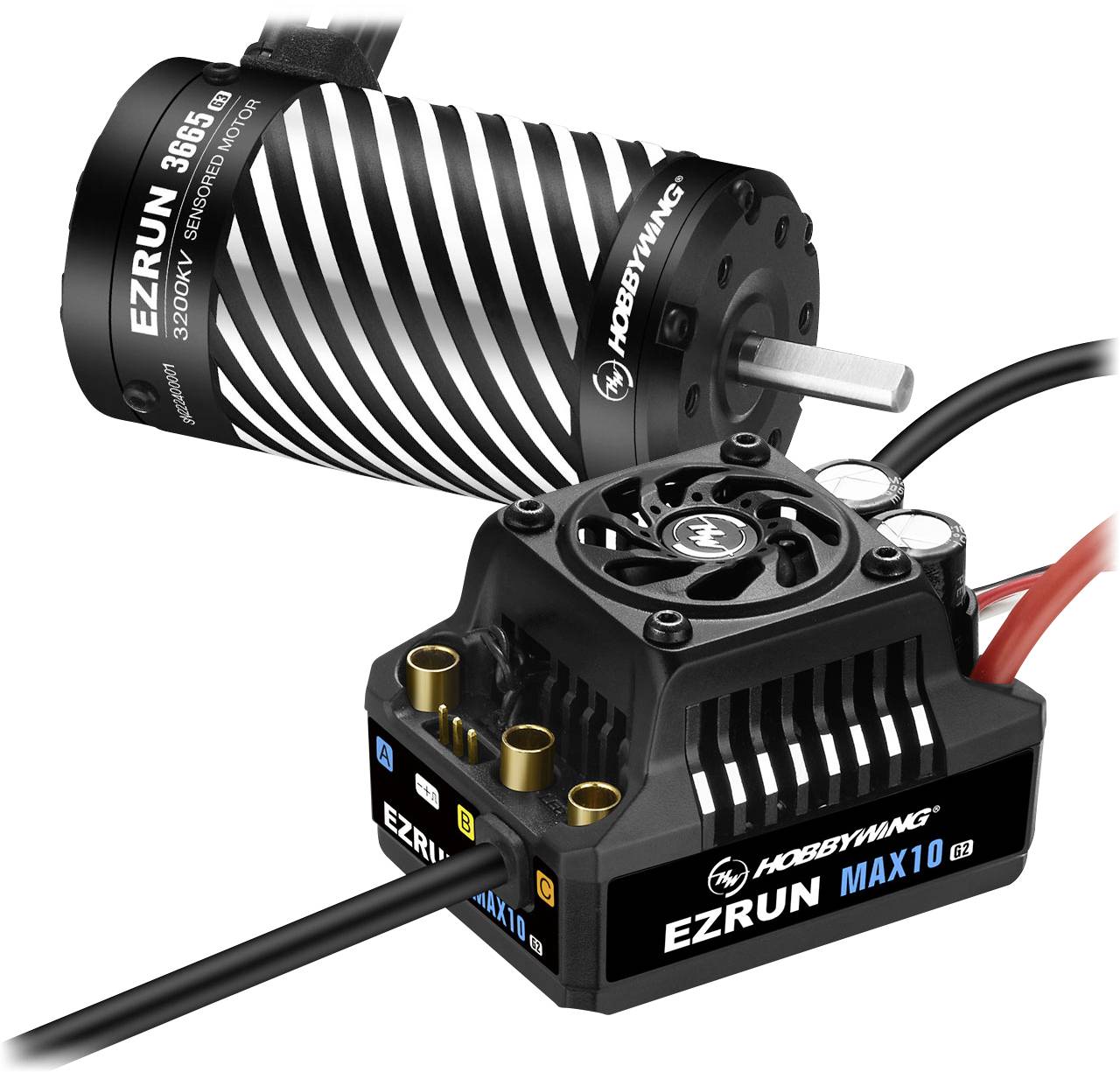

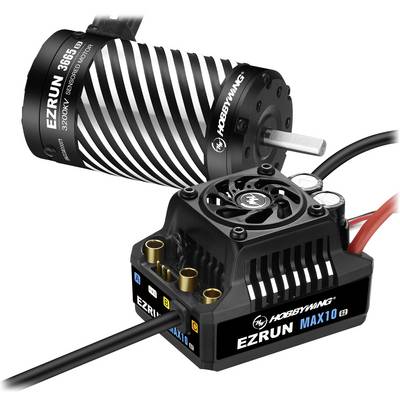

Hobbywing Ezrun MAX10 G2 140A Combo mit 3665SD-3200kV 38020344 Model car brushless motor kit 1:10
EAN:
Part number:
Item no:
Total (€ 169.99 / piece)
€ 169.99
incl. VAT
14-day return policy included
Technical specifications
- Current (continuous/peak): 140A/880A
- BEC 6V/7.4V, 5A
- Motor Limit: 3S LiPo: <= 4000kV (3665 series motor), 4S LiPo: <= 2600 kV (4268 series motor)
- XT60 plug
- Programming: LED programming box, LCD programming box (G2), OTA programming module, separate programming port
- Protection class IP67
- Pole 4
- Controller (LxWxH) 53 x 39.5 x 37.2 mm, 120 g
- Motor (ØxL) 37 x 65.8 mm, 304 g
- 1/10 On-Road/Off-Road Short Course Truck (lightweight)
- Product type
Model car brushless motor kit
- kV (RPM per volt)
3200
- Scale
1:10
- No. of LiPo cells
2-4
- Shaft Ø
5 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3400213 Hobbywing Ezrun MAX10 G2 140A Combo mit 3665SD-3200kV 38020344 Model car brushless motor kit 1:10
Description
The Combo with the second generation of the Ezrun MAX10 controller with 140A is here and brings a variety of innovations and optimizations, which make the driving of 1/10 short course and trucks now even more pleasant. The controller is supported by a 3665SD motor with 3200kV.
In direct comparison with the regular MAX10 combo it becomes clear that the sensor mode with the associated waterproof cable has been extensively revised and now provides a great response while accelerating. The fantastic acceleration with stable output power as well as the beautiful linearity at low speeds are also included in the aspects that have been improved particularly strongly here. In terms of heat development the MAX10 G2 Combo does not make any other comparable product so quickly. This is due, on the one hand, to the optimizations at the design and of course, to the larger capacitors.
The perfect introduction to start directly in the 1/10-area!
This text is machine translated.
In direct comparison with the regular MAX10 combo it becomes clear that the sensor mode with the associated waterproof cable has been extensively revised and now provides a great response while accelerating. The fantastic acceleration with stable output power as well as the beautiful linearity at low speeds are also included in the aspects that have been improved particularly strongly here. In terms of heat development the MAX10 G2 Combo does not make any other comparable product so quickly. This is due, on the one hand, to the optimizations at the design and of course, to the larger capacitors.
The perfect introduction to start directly in the 1/10-area!
This text is machine translated.
Features
- In-built Super-BEC
- Frameless smart fan
- Real-time data and data recording possible
- Includes turbo timing setting
- Improved sensor
- Excellent throttle response
- Even faster at constant power output
- 4-pin rotor for high torque
- Easy to dismantle motor for maintenance work
Scope of delivery

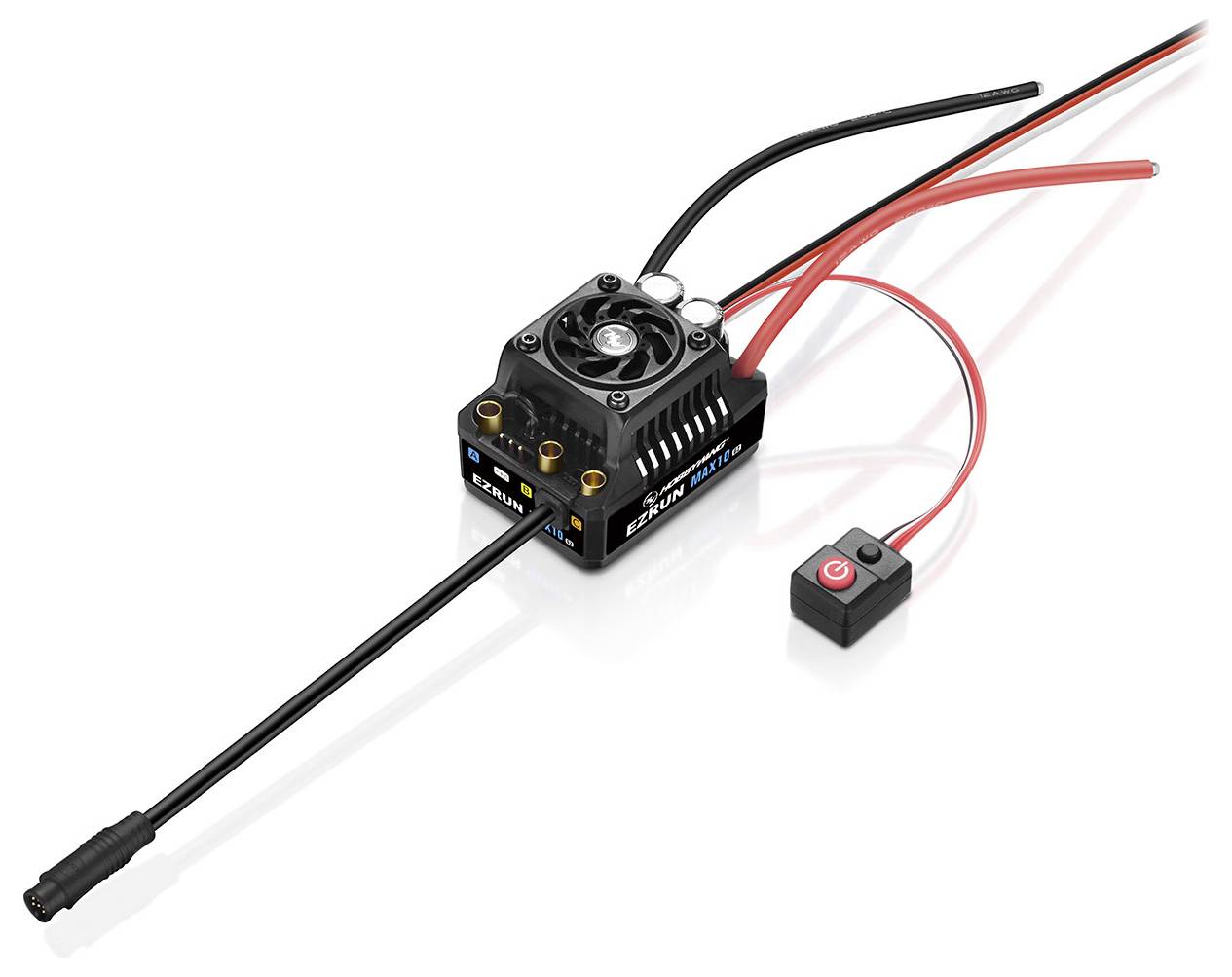

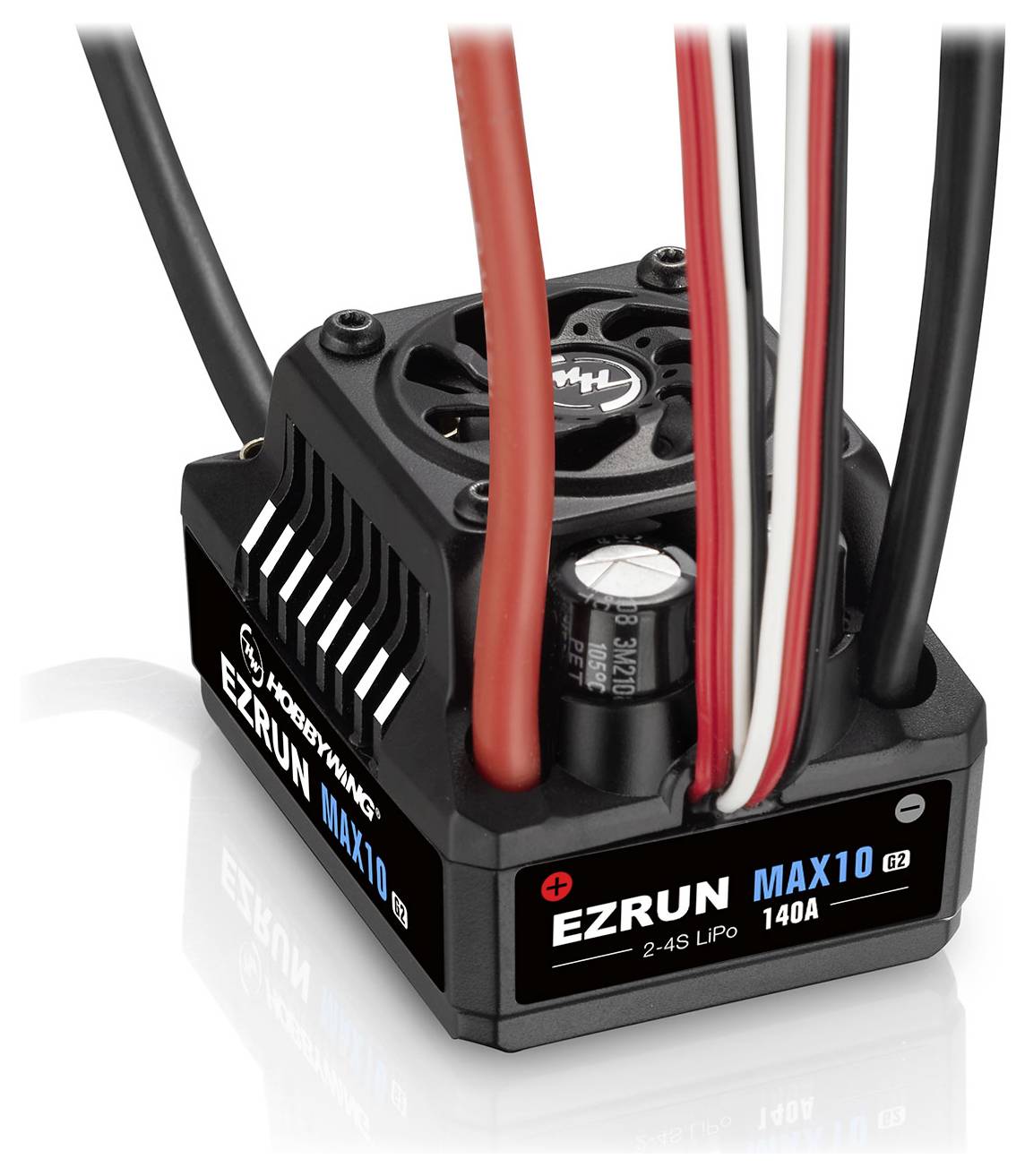

- Ezrun MAX10 G2 controller with 140A

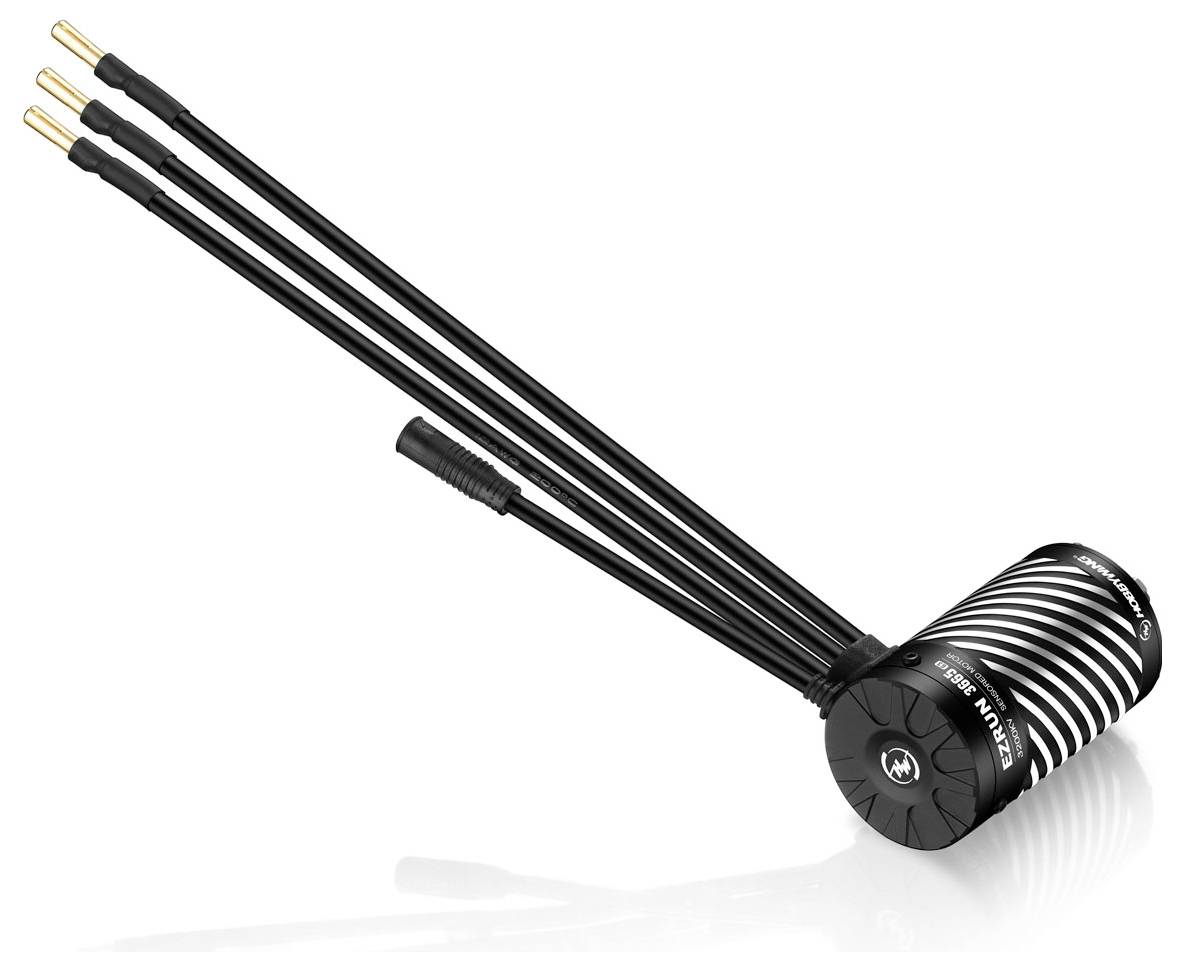

- 3665SD G3 motor with 3200kV
