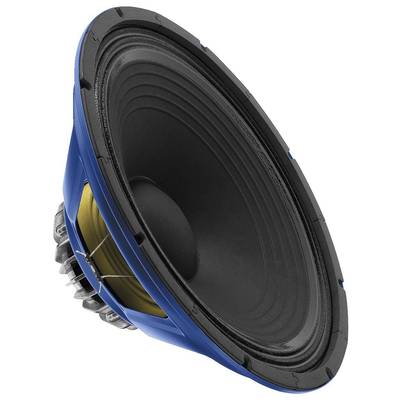

IMG Stageline SP-38/300NEO 15 inch 38 cm Subwoofer 300 W 8 Ω
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 234.99 / piece)
€ 234.99
incl. VAT
14-day return policy included
Highlights & Details
IMG Stage Line SP -38/300 NEO neodymium-PA-WOOFER
- Steel Series of the Blue components from IMG Stage Line
- In this series are speakers with neodymium drive available.
- Thereby, especially in connection with the stable steel baskets the weight advantages of the new magnet systems fully
- This text is machine translated.
Technical specifications
- Impedance (Z): 8 Ohm
- Resonant frequency (fs): 36 Hz
- Max. 3-4000 Hz frequency range: f
- Maximum load-carrying capacity: 600WMAX
- Nominal load (P): 300WRMS
- Avg. Sound pressure (1W/m): 101 dB
- Suspension compliance (cms): 0.28 mm/N
- Moved mass (MMS): 71 g
- Mechanical quality (Qms): 4,13
- Electrical quality (Qes): 0.48
- Total quality (Qts): 0.43
- Equivalent volume (Vas): 265 l
- Dc resistance (Re): 5.4 ohm
- Power factor (BxL): 13.5 Tm
- Schwingspulenind. (Le): 0.75 mH
- Voice coil diameter: 63 mm
- Glass fiber voice coil carrier:
- Linear excursion (Xmax): +/-3.5 mm
- Eff. Cone area (sd): 880 cm2
- Magnet weight: 110 g (neodymium)
- Weight: 2.5 kg
- Product type
Subwoofer
- Speaker size (inch)
15 inch
- Speaker size (cm)
38 cm
- RMS capacity
300 W
- Max. load
600 W
- Min. frequency
36 Hz
- Max. frequency
4000 Hz
- Impedance
8 Ω
- Sound pressure
101 dB
- Recess diameter
354 mm
- Recess depth
162 mm
- Weight
2.5 kg
- Frequency range
36 Hz - 4000 Hz
Documents & Downloads
Datasheet
Datasheet 1332596 IMG Stageline SP-38/300NEO 15 inch 38 cm Subwoofer 300 W 8 Ω
Datasheet 1332596 IMG Stageline SP-38/300NEO 15 inch 38 cm Subwoofer 300 W 8 Ω
User & Safety Instructions
User & Safety Instructions 1332596 IMG Stageline SP-38/300NEO 15 inch 38 cm Subwoofer 300 W 8 Ω
Description
Features
- Neodymium-PA-WOOFER
- Neodymium High-performance drive with verkupferter aluminum voice coil (CCAW)
- Excellent efficiency
- Very good frequency response linearity
- On enclosures from medium-sized unusually deep playback
- Optimum performance together with high-quality horn tweeters provide for volume boxes at the lowest weight
