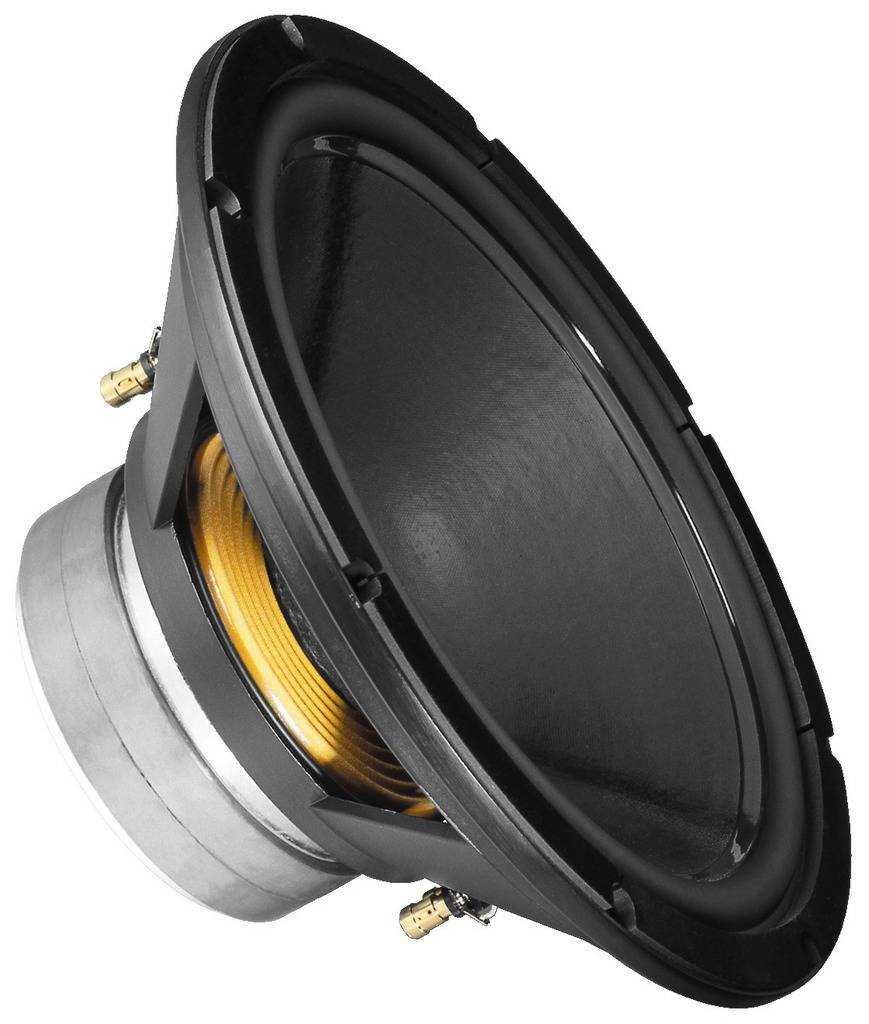

Monacor SPH-380TC 15 inch 38 cm Subwoofer 250 W 4 Ω
EAN:
Part number:
Item no:
Total (€ 409.00 / piece)
€ 409.00
incl. VAT
14-day return policy included
Technical specifications
- Impedance (Z): 2 x 4 Ohm
- Resonant frequency (fs): 21.5 Hz
- Max. Frequency range: f3-800 Hz
- Maximum load-carrying capacity 2 x 400 WMAX
- Nominal load (P): 2 x 250WRMS
- Avg. Sound pressure (1W/m): 89 dB
- Suspension compliance (cms): 0.28 mm/N
- Moved mass (MMS): 199.5 g
- Mechanical quality (Qms): 2.81
- Electrical quality (Qes): 0.31
- Total quality (Qts): 0.28
- Equivalent volume (Vas): 275 l
- Dc resistance (Re): 2x3.6 Ohm/1x7,2 Ohm
- Power factor (BxL): 25.0 Tm
- Schwingspulenind. (Le): 2x1.1 mH/1x4,4 mH
- Voice coil diameter: 75.5 mm
- Voice coil former: Aluminum
- Linear excursion (Xmax): +/-11.1 mm
- Eff. Cone area (sd): 845 cm2
- Magnet weight: 3.7 kg
- Weight: 11 kg.
- Product type
Subwoofer
- Speaker size (inch)
15 inch
- Speaker size (cm)
38 cm
- RMS capacity
250 W
- Max. load
400 W
- Min. frequency
21 Hz
- Max. frequency
800 Hz
- Impedance
4 Ω
- Sound pressure
89 dB
- Weight
11 kg
- Frequency range
21 Hz - 800 Hz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1332702 Monacor SPH-380TC 15 inch 38 cm Subwoofer 250 W 4 Ω
Description
Features
- Subwoofer in double voice coil technology
- The required volume is extremely small from
- Stable complete membrane with new geometry for maximum stiffness and excellent dynamic behavior
- Extremely langhubig
- Rubber surround
- Consuming air gap ventilation
- For universal deep bass applications from the home theater to compact DJ subwoofers
- This text is machine translated.
