Integrated transverse rails, PanelSet SFN, PanelSet SF, H40 B600mm, set of 2 Schneider Electric Content: 1 Set
EAN:
Part number:
Item no:
Product type
Rail
Dim
(W x H) 600 mm x 40 mm
Manufacturer part #
NSYSICR4060
Content
1 Set
Width
600 mm
Datasheet (PDF)
Number
Total (€ 63.86 / piece)
€ 63.86
plus VAT.
Technical specifications
- Suitable for housing width 600 mm
- Suitable for housing depth 600 mm
- Max. load 50 kg
- Product type
Rail
- Dim
(W x H) 600 mm x 40 mm
- Manufacturer part #
NSYSICR4060
- Content
1 Set
- Width
600 mm
- Height
40 mm
- Type
NSYSICR4060
Documents & Downloads
Datasheet
Datasheet 3776482 Integrated transverse rails, PanelSet SFN, PanelSet SF, H40 B600mm, set of 2 Schneider Electric Content: 1 Set
User & Safety Instructions
User & Safety Instructions 3776482 Integrated transverse rails, PanelSet SFN, PanelSet SF, H40 B600mm, set of 2 Schneider Electric Content: 1 Set
Description

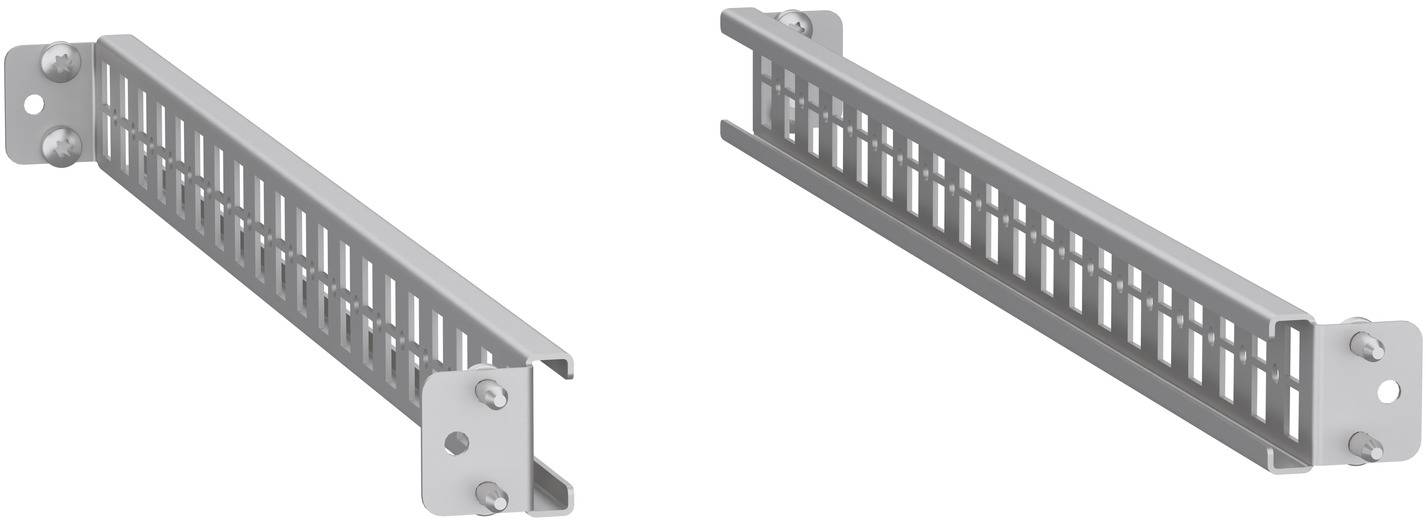

This set of two quick mounting cross rails is suitable for PanelSet SFN, PanelSet SF, PanelSet SM and PanelSet SFX electrical housing. They are used to create structures inside the enclosure. These fastening elements are made of galvanized steel. They have a nominal width of 40 mm and a nominal length of 40 mm. Each row is drilled through every 25 mm with a 5.2 mm diameter hole and 11x13 mm hole. They are fastened using cage nuts or self-tapping screws and can be adjusted with a pitch of 25 mm. The set consists of two cross-rails and fixing elements.
