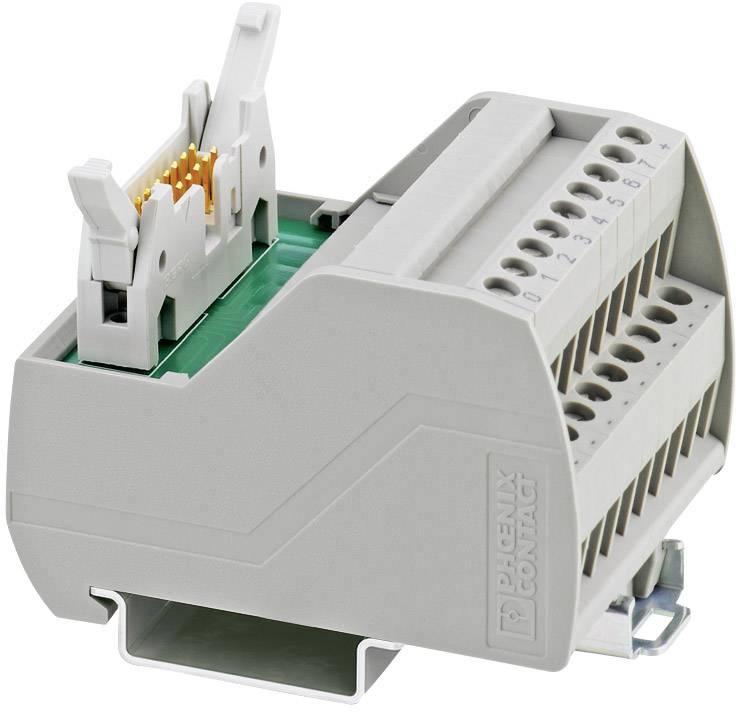

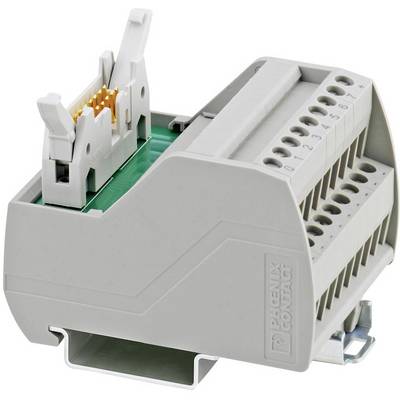

Interface module VIP-2/SC/FLK14/8P/PLC 2322294 Phoenix Contact
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Transfer module
Total no. of pins
14
Stripping length (max.)
8 mm
Dim
(L x W x H) 56 x 50 x 65.5 mm
Datasheet (PDF)
Number
Total (€ 63.86 / piece)
€ 63.86
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Transfer module
- Total no. of pins
14
- Stripping length (max.)
8 mm
- Dim
(L x W x H) 56 x 50 x 65.5 mm
- Connector (field)
Screws
- Connector (control)
IDC/FLK strip
- Content
1 pc(s)
- Number of pins
14
- Width
50 mm
- Height
65.5 mm
- Length
56 mm
- Series
Varioface-VIP
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
4 mm²
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Features
Any orientation
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 788806 Interface module VIP-2/SC/FLK14/8P/PLC 2322294 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 788806 Interface module VIP-2/SC/FLK14/8P/PLC 2322294 Phoenix Contact
Description
VARIOFACE interface module, for 8 channels, each with an additional terminal block per signal for a common plus potential
