IWH 019026 Battery circuit breaker 12 V, 24 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 12.60
3
5% = € 0.63
€ 11.97
5
7% = € 0.88
€ 11.72
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 12.60 / piece)
€ 12.60
plus VAT.
14-day return policy included
Highlights & Details

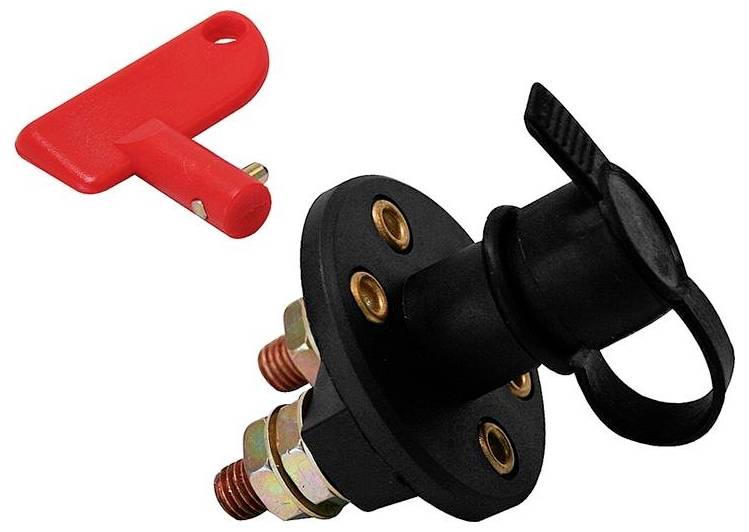

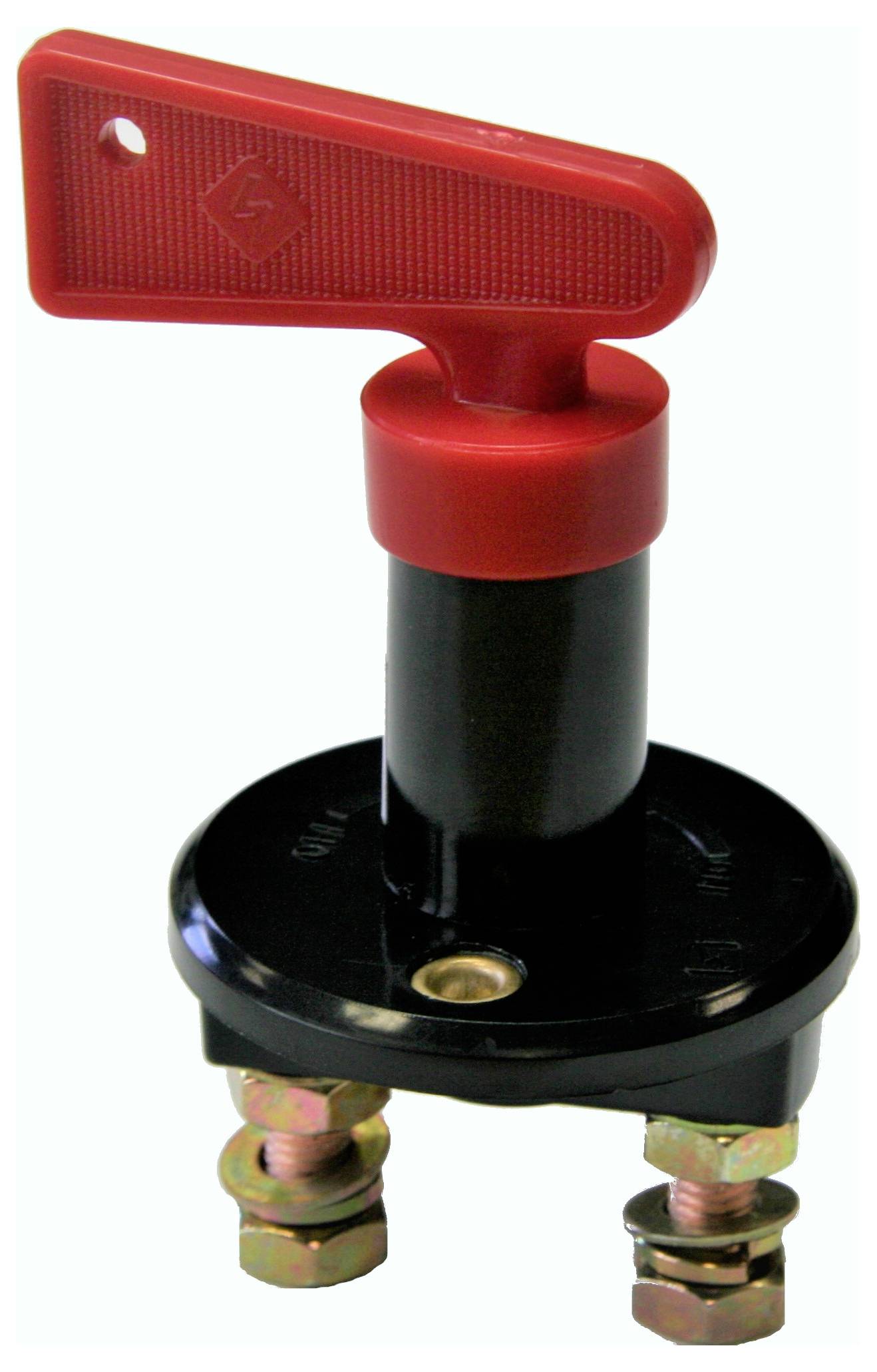

IWH 019026 Battery circuit breaker 12 V, 24 V
- M8 port

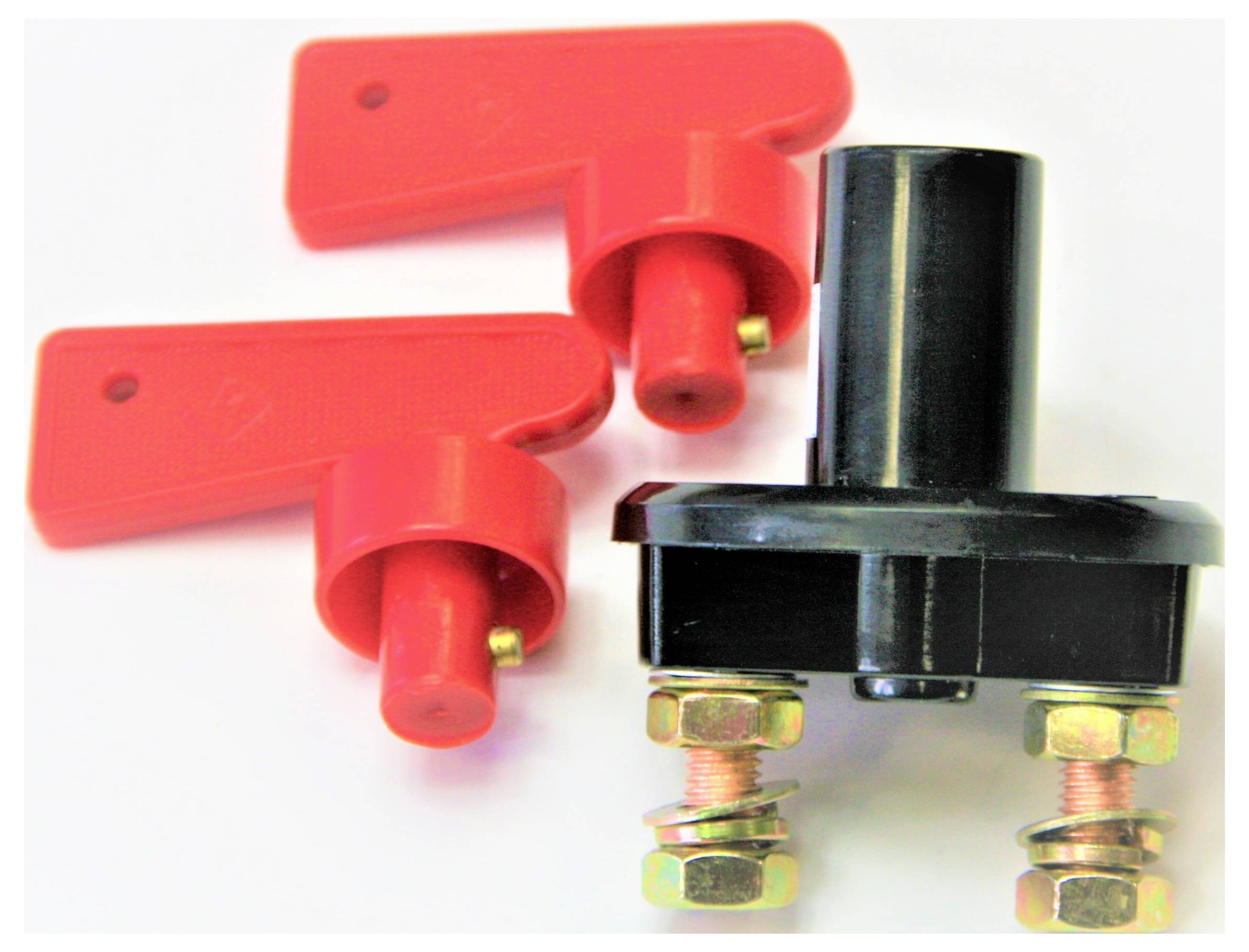

- Removable Key
- Protective cap against pollution

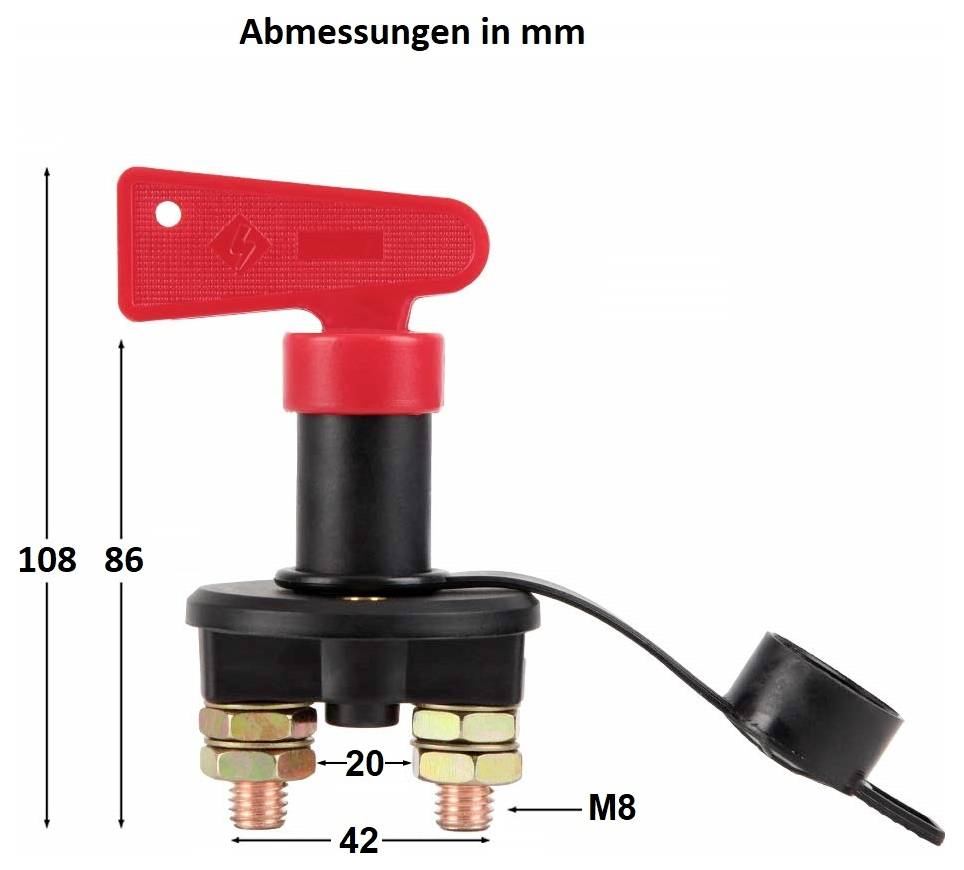

Technical specifications
- Max. Load 500 A (short-term at 12 V)
- 100 A permanent

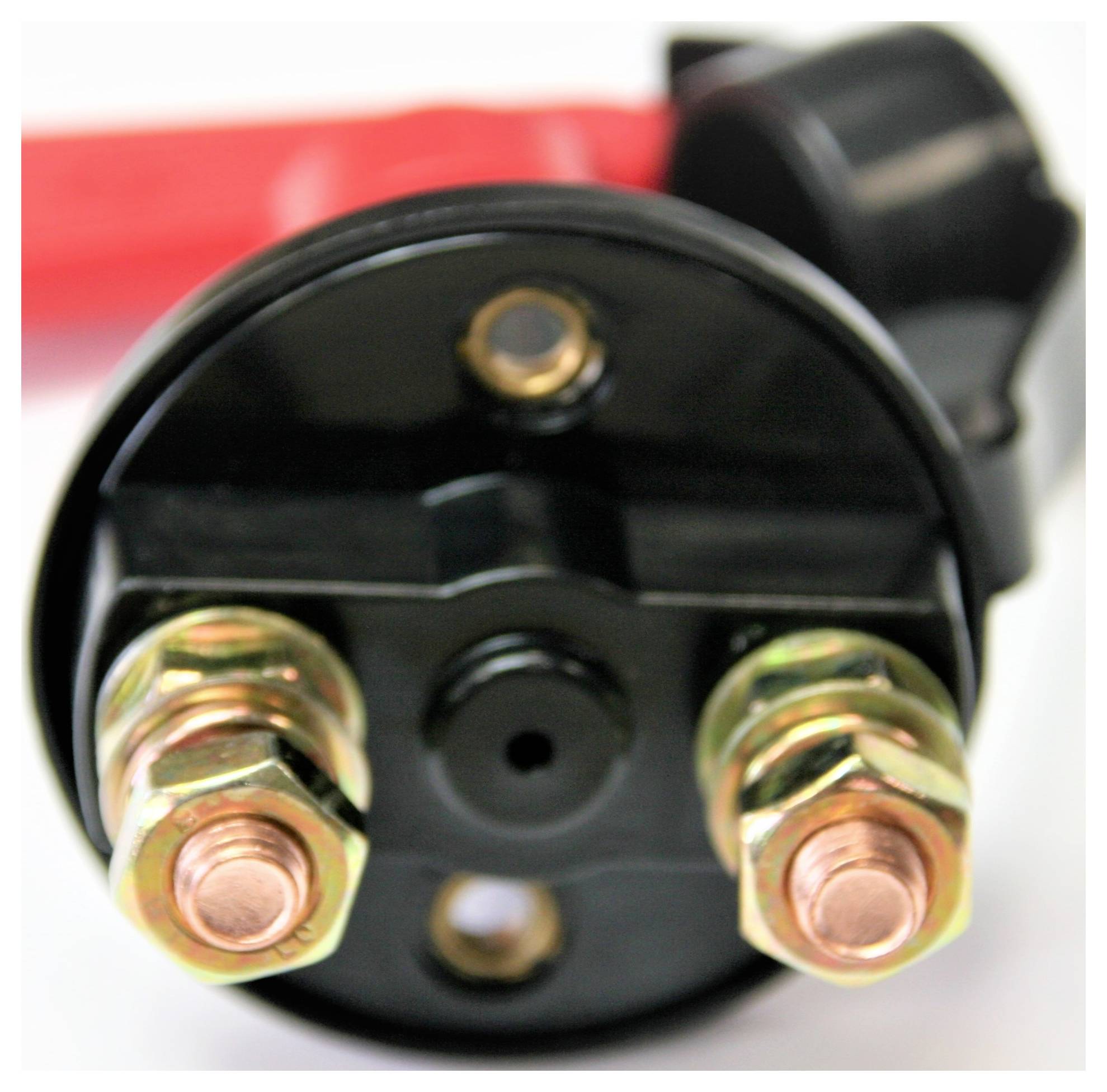

- Connection: M8 copper screws
- Installation depth: Approx. 35 mm
- Distance of the poles: 34 mm
- Total height: (Screw connection to actuator) 110 mm
- Ø mounting plate 60 mm
- Dim
(Ø) 60 mm
- Product type
Battery circuit breaker
- Type
Battery switch
- Operating voltage
12 V
24 V
- Width
11 cm
- Factory colour
Black
Red
- (Ø)
60 mm
- Number of pins
1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 842020 IWH 019026 Battery circuit breaker 12 V, 24 V
User & Safety Instructions
User & Safety Instructions 842020 IWH 019026 Battery circuit breaker 12 V, 24 V
Description
To disconnect the battery from the on-board power supply, for example, mobile homes, caravans, automotive, construction equipment, boats, etc. prevents the unwanted power consumption in unused condition and the discharge of the starter battery for a long time due to creeping currents. Also serves to secure the vehicle against unauthorized use, as a preventive fire protection measure and as emergency-off switch.
