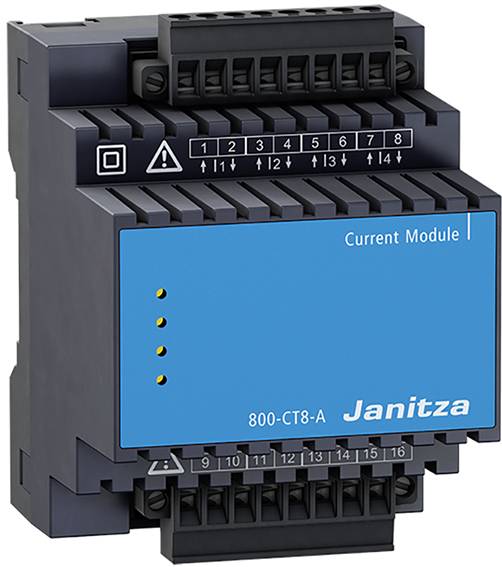

Janitza Modul 800-CT8-A
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 427.73 / piece)
€ 427.73
plus VAT.
Only 8 Piece(s) available
Highlights & Details
Multi-channel current measuring module for operating current
- 8 current measuring inputs, divided into 2 four-blocks
- Nominal current 5A / 1A adjustable
- Current measuring range: 5 mA... 6 A
- Resolution: 0.1mA
- Accessories (included):
- 33.03.378 Installation instructions incl. safety instructions
- 52.31.207 Bus connector Current measuring module
- 10.01.953 End angle
Technical specifications
- Reading type
Power
- Reading range (min.)
5 mA
- Type
Modul 800-CT8-A
- Reading range (max.)
6 A
- Dim
(L x W x H) 76 x 73 x 90 mm
- Weight
0.21 kg
- Factory colour
Multicolour
- Reading category
CAT II 300 V
- Width
73 mm
- Height
90 mm
- Length
76 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2346632 Janitza Modul 800-CT8-A
User & Safety Instructions
User & Safety Instructions 2346632 Janitza Modul 800-CT8-A
Description
Expansion module 800-CT-8-A for UMG 801
