Joy-it VTCH8 Converter 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.51
10
7% = € 0.18
€ 2.33
25
10% = € 0.26
€ 2.25
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.51 / piece)
€ 2.51
plus VAT.
Highlights & Details
8 CHANNEL - BI-DIRECTIONAL VOLTAGE CONVERTER FOR LOGIC LEVEL FROM 1.2 V TO 5.5 V
- 8-channel converter, bidirectional
- Automatic direction detection without additional
- Control pins
- POWER SUPPLY VCCA 1.2–3.6 V, VCCB 1.65–5.5 V.
- Supports data transfer rates of up to 100 Mbit/s.
- OE pin for selective activation/deactivation of channels
Technical specifications
- TXB0108PWR chipset
- Number of channels: 8
- VCCA (A side supply voltage) 1.2 V – 3.6 V (VCCA smaller VCCB)
- VCCB (B side supply voltage) 1.65 V – 5.5 V (VCCB greater than VCCA)
- You can find further details in the data sheet in the download area!
- Packaging type
Piece
- Product type
Converter
- Interfaces
SPI™
- Min. operating voltage
1.2 V
- Max. operating voltage
5.5 V
- Tool type
Converter
- Height
2.50 mm
- Length
28 mm
- Width
18.50 mm
- No. of outputs
8 x
- Weight
3 g
Documents & Downloads
Datasheet
Datasheet 3720967 Joy-it VTCH8 Converter 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3720967 Joy-it VTCH8 Converter 1 pc(s)
Description

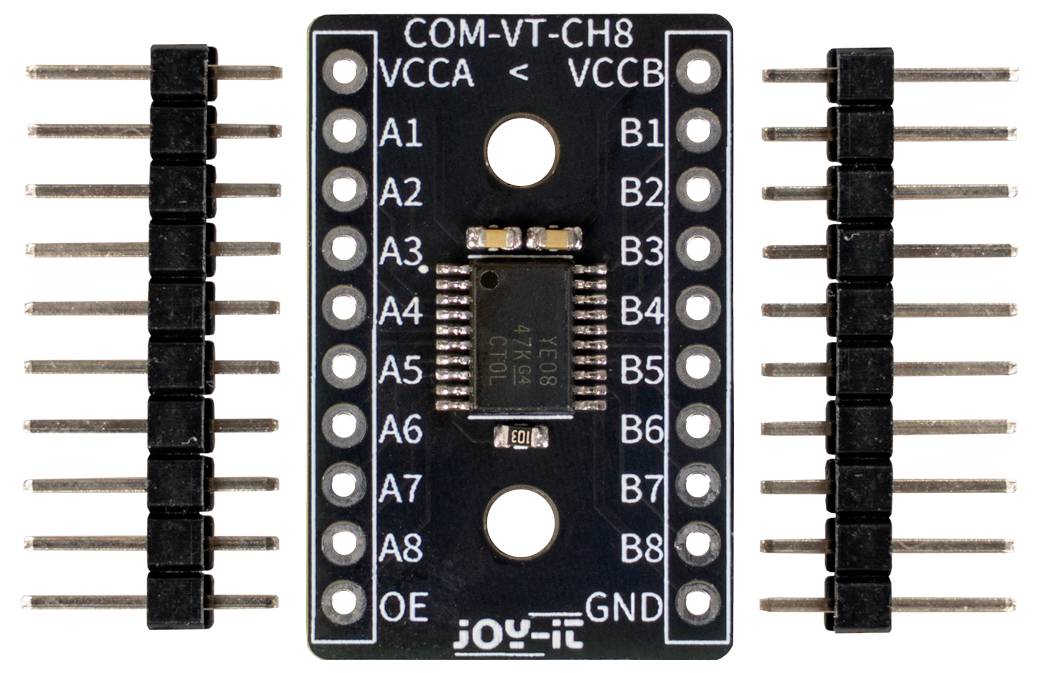

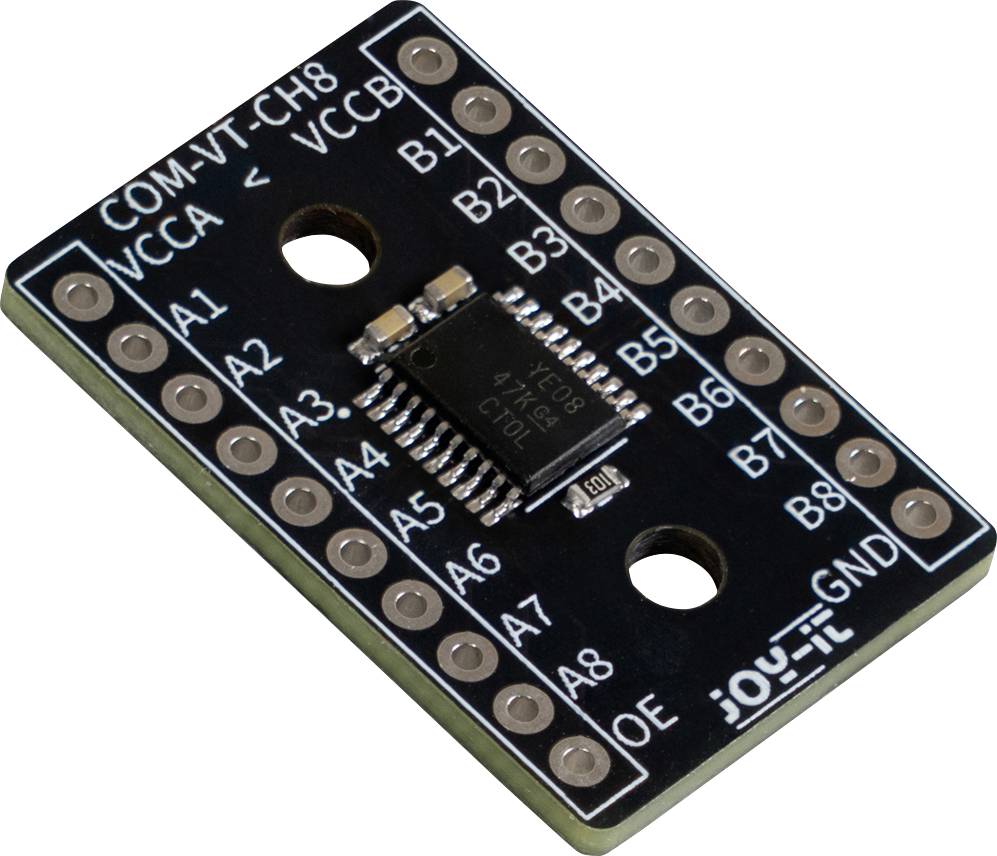

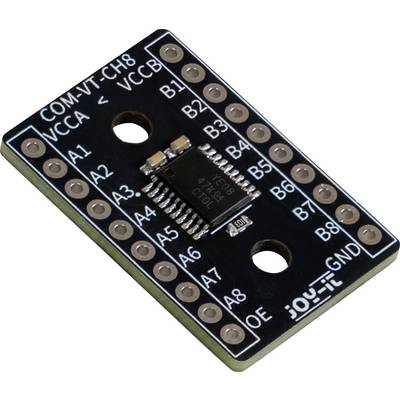

The COM-VT-CH8 is a versatile 8-channel
Bi-directional voltage converter that supports the connection
Between digital systems with different
Logic levels simplified. Thanks to automatic
Direction recognition is not a control signal
required and transparent, trouble-free
Communication is enabled. Hence, suitable
The Ideal for Embedded Systems module,
Development environments, prototypes
Mixed tensions and education projects, at
Signals must flow in both directions.
It supports a supply voltage range
From 1.2 V to 3.6 V on the A side and 1.65 V to 5.5 V.
On the B-side and thus ensures the compatibility
With almost all current logic families. Developer
Can include modern MCUs, FPGAs and sensors
Low power consumption on older models without any problems
Connect peripherals or controllers that are one
5 V logic required. With transfer rates of up to
100 Mbit/s, the COM-VT-CH8 is well suited for fast
Interfaces such as SPI, UART, I²C or GPIO signals.
An integrated OE pin (Output Enable) allows
Simultaneous activation or deactivation
Of all Channels. In combination with the Ioff
It also prevents unwanted support
Reverse current when the power supply is switched off
– An important function in systems with
Low power consumption and battery operation.
The module is also supported for easy integration
Two matching 10-pole connectors
supplied, which are not soldered on, so
Users have full flexibility: You can use for
The use is soldered on a patch board, or
For the direct wiring.
This adaptability makes the COM-VT-CH8
Also for professional prototypes
Use in the laboratory and suitable for training kits.
