Kaiser Nienhaus 317620 Tastor Unisono - Astro Shutter timer
EAN:
Part number:
Item no:
4 Piece(s)
Sales and shipping:
Number
Total (€ 62.18 / piece)
€
Only 4 Piece(s) available
Highlights & Details
Roller shutter timer Tastor UNISOO - Astro
- Versatile roller shutter time switch
- Operating area 50 x 50
- Astro function
Technical specifications
- Max. switching capacity of 500 W
- Power reserve: 2 hours
- Accuracy: <5 seconds / day
- Switch-over delay: Min. 0.5 seconds
- Motor running time 1 - 360 seconds
- Temperature range -10°C to +50°C.
- Product type
Shutter timer
- Function Shutter control
Control panel 50 x 50 mm
Daily program
Weekly program
Random generator
Astro function
- Operating voltage
230 V
IP20
- Factory colour
White
- Dim
- Hub
Not required
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3436498 Kaiser Nienhaus 317620 Tastor Unisono - Astro Shutter timer
Description

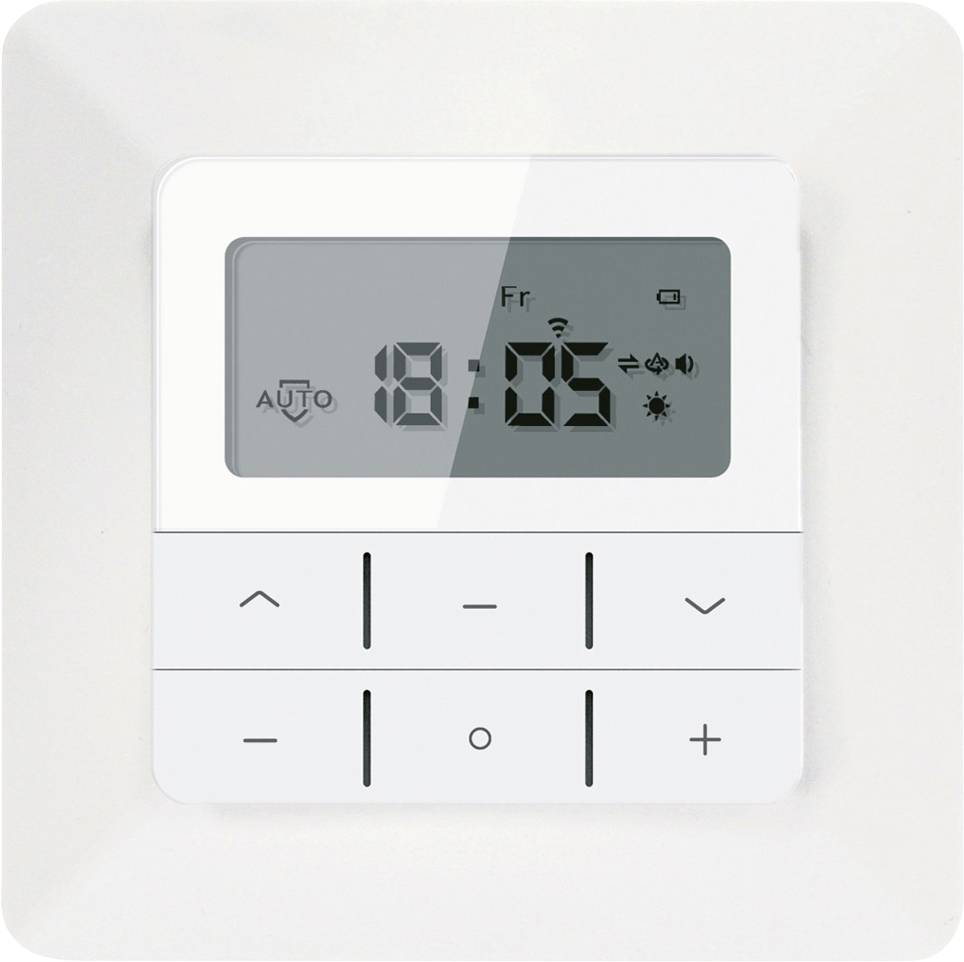

The Tastor Unisono is a versatile roller shutter timer with day, week, and Astro-program, as well as a (de-) activated summer/winter time changeover. The operating area has the 50x50 format and can be integrated in many common switch programs with the help of the respective intermediate frame of the switch manufacturer. The display and the large, white operating buttons provide for a high-quality and yet simple optics. Operation is very easy and menu-driven setting is clearly arranged and easy to understand. The display always shows the current mode of the door (manual, automatic, Astro, random). If you want to activate Raffstors, the Tastor Unisono also has a (de-) activated typing function. Colour: white
This text is machine translated.
This text is machine translated.
Features
- Day and week program and Astro function
- (De-)activatable shutter function with typing operation
- If the button is pressed briefly (<1 second)
- Holiday function (switch times) can be activated
- Vary by ± 30 minutes)
- (de-)activatable, automatic
- Summer and wintertime adjustment
- Operating area 50x50, can be integrated into other switch programs.
Scope of delivery
- Inc. single frame
