Kaiser Nienhaus 336400 Limit switch
EAN:
Part number:
Item no:
Number
Total (€ 174.99 / piece)
€ 174.99
incl. VAT
Only 3 Piece(s) available
Highlights & Details
Limit monitor rain including sensor
- Potential free changeover contact
- Display for switching threshold
- Built-in heater
Technical specifications
- Switch output: 2000 W
- Product type
Limit switch
- Features
Incl. rain sensor
- Operating voltage
230 V
- Mounting type
DIN rail
- Width
64 mm
- Height
34 mm
- Depth
58 mm
- Dim
(W x H x D) 64 x 34 x 58 mm
- Hub
Not required
n.rel.
- Switching capacity
2000 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 646641 Kaiser Nienhaus 336400 Limit switch
Description
The exceeding of the adjusted sensitivity is immediately displayed by the LED. At the same time the relay contact is activated. Depending on the setting, the relay remains active only for either 2 seconds or it will be permanently switched during the rainy period. The fixed delay time of 30s also provides at shortfalls in the short circuit threshold a continuous stable operation condition.
Features
- Adjustable sensitivity and power on characteristics.
Scope of delivery
- Limit monitor

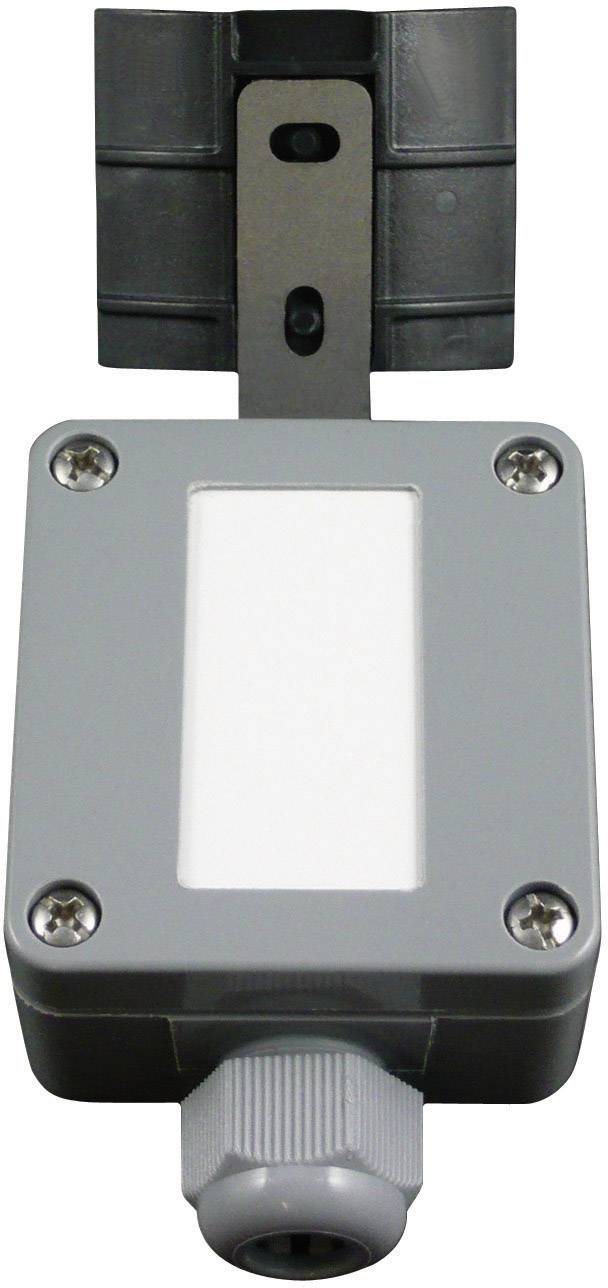

- Rain sensor with heating
- Installation materials
- User manual.
