Name: Kathrein KEL 1310/O Optical LNB LNB feed size: 40 mm White
Brand: Kathrein
SKU: 3479050
Availability: InStock

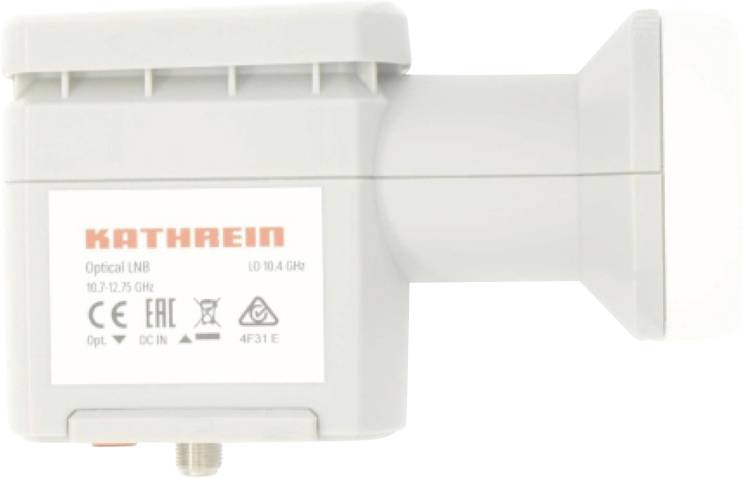

An optical LNB device labeled 'KATHREIN', showing frequency range details and certification symbols on a white rectangular label.

Datasheet (PDF)

Fast track dispatch on Fri 23 Oct

6 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 395.00 / piece)

€ 395.00

incl. VAT

Only 6 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

KEL 1310/O Optical Food System

Unique product on the market: The KEL 1310/O is highlighted as the only optical LNB on the market.
Optical peak connection: The system has an optical output through an FC/APC connector and operates at a wavelength of 1310 nm. It supplies an optical output power of type. +4 dBm.
Built-in signal stabilization: The integrated AGC (Automatic Gain Control) control ensures stable performance. It offers a typical amplification of 55 dB.
High compatibility: The optical feed system is suitable for satellite antennas with a 40 mm LNB recording, such as the Kathrein antennas KEA 650/750/850/1000. It processes input frequencies from 10.70 – 12.75 GHz and provides output frequencies from 300 – 2350 MHz

Technical specifications

Wavelength: 1310 nm input frequency: 10.70 – 12.75 GHz
Output frequency 300 - 2350 MHz
Optical output power: Type +4 dBm
Supply voltage 10–20 V.
Power consumption: max. 4 W

Product type: Optical LNB

No. of outputs: 1 x

Satellites: 1

LNB feed size: 40 mm

Factory colour: White

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3479050 Kathrein KEL 1310/O Optical LNB LNB feed size: 40 mm White

User & Safety Instructions

User & Safety Instructions 3479050 Kathrein KEL 1310/O Optical LNB LNB feed size: 40 mm White

Description

Kathrein KEL 1310/O: You can rely on the only optical LNB in the market.

Revolutionize your SAT ZF distribution technology with a Kathrein KEL 1310/O (order no. 201500005), the only optical LNB in the market.

This feed system converts the satellite signal directly into an optical signal (1310 nm wavelength) and provides the highest stability thanks to integrated AGC control and a typical 55 dB amplification.

The optical connection is made securely via the FC/APC connection. The KEL 1310/O is compatible with popular Kathrein antennas with 40-mm LNB recording.

KEL 1310/O – The innovative, professional solution for optical signal distribution.
