Name: Keystone Electronics 1029 Battery tray 1x 2/3 AA Through-hole (L x W x H) 43 x 18 x 15 mm
Brand: Keystone Electronics
SKU: 651295
Availability: InStock

A black plastic battery holder for a single battery, with positive and negative terminal connections at the ends.

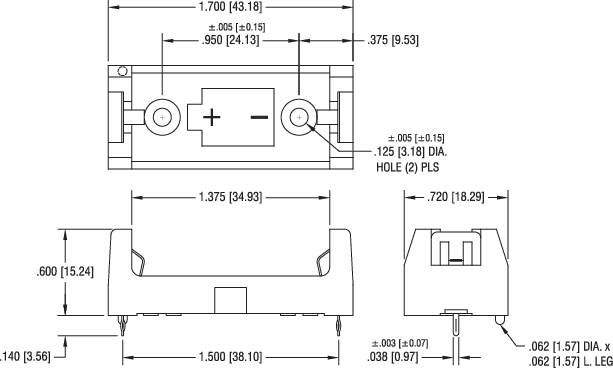

Technical drawing of an electrical component with dimensions in inches. Shows front, side, and top views with electrical connections.

1/2

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

50 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 2.49 / piece)

€ 2.49

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

BATTERY PIN-HOLDER F. 2/3 AA CELL

Chemical resistant plastic
Light and sturdy

Technical specifications

Temperature range -50 to +145 °C

Product type: Battery tray

Connector: Through-hole

Dim: (L x W x H) 43 x 18 x 15 mm

Suitable for battery size: 2/3 AA

Pin spacing: 29.46 mm

No. of cells: 1

Length: 43 mm

Width: 18 mm

Height: 15 mm

Material (details): Plastic

Factory colour: Black

Type: L for 2/3 Mignon

Suitable for: 2/3 AA-Cell
