Buy Keystone Electronics 92 Single contact 1x AA, A, CR 2 Through-hole (W x H) 12 mm x 15 mm

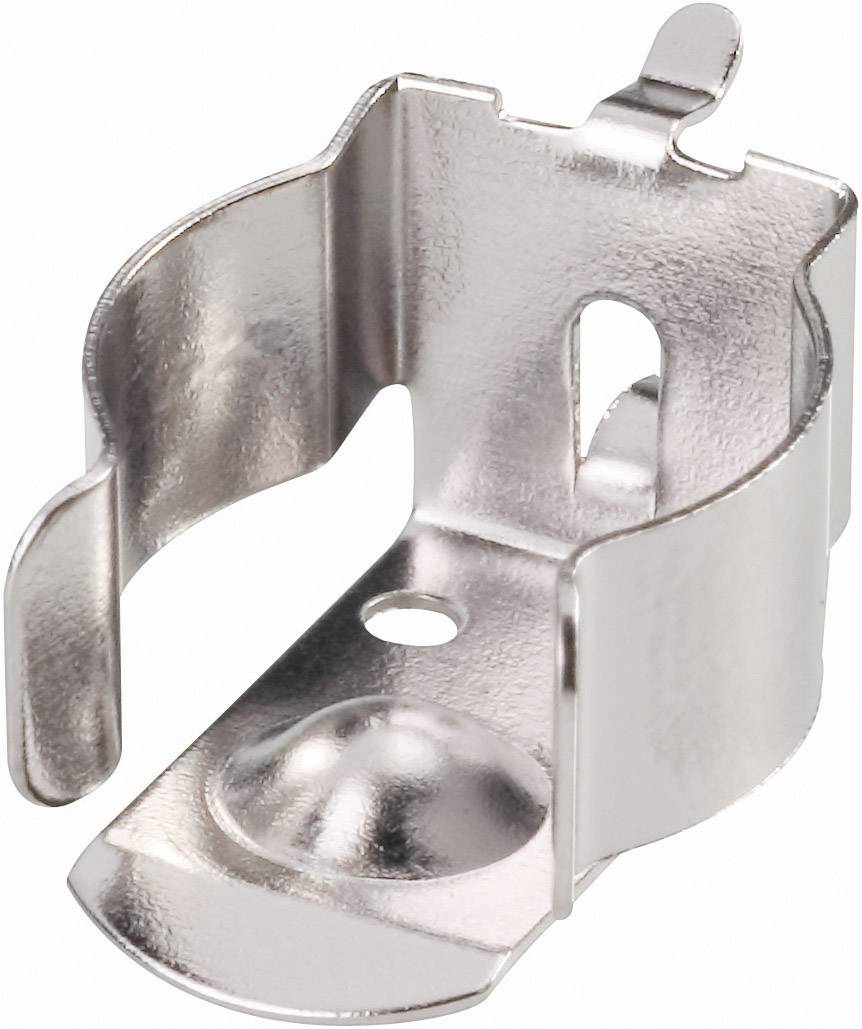

A silver metal clip with a circular base and two side arms, for fastening objects to a surface.

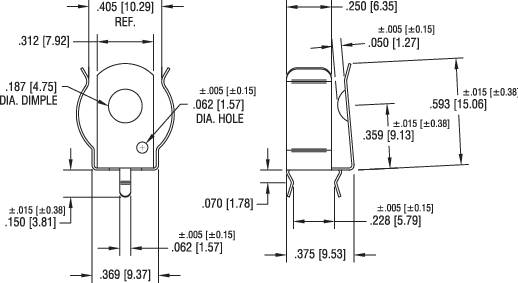

Technical drawing of an electronic component with dimensions in inches and millimetres, showing top and side views.

1/2

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 0.71 / piece)

€ 0.71

plus VAT.

Report legal concerns

Highlights & Details

Single contact for AA and AAA cells

Spring steel
This text is machine translated.

Technical specifications

Product type: Single contact

Connector: Through-hole

Dim: (W x H) 12 mm x 15 mm

Suitable for battery size: AA
A
CR 2

Pin spacing: 5.79 mm

No. of cells: 1

Width: 12 mm

Height: 15 mm

Material (details): Spring steel

Factory colour: Silver

Type: Single contact for PCB

Suitable for: AA cells
