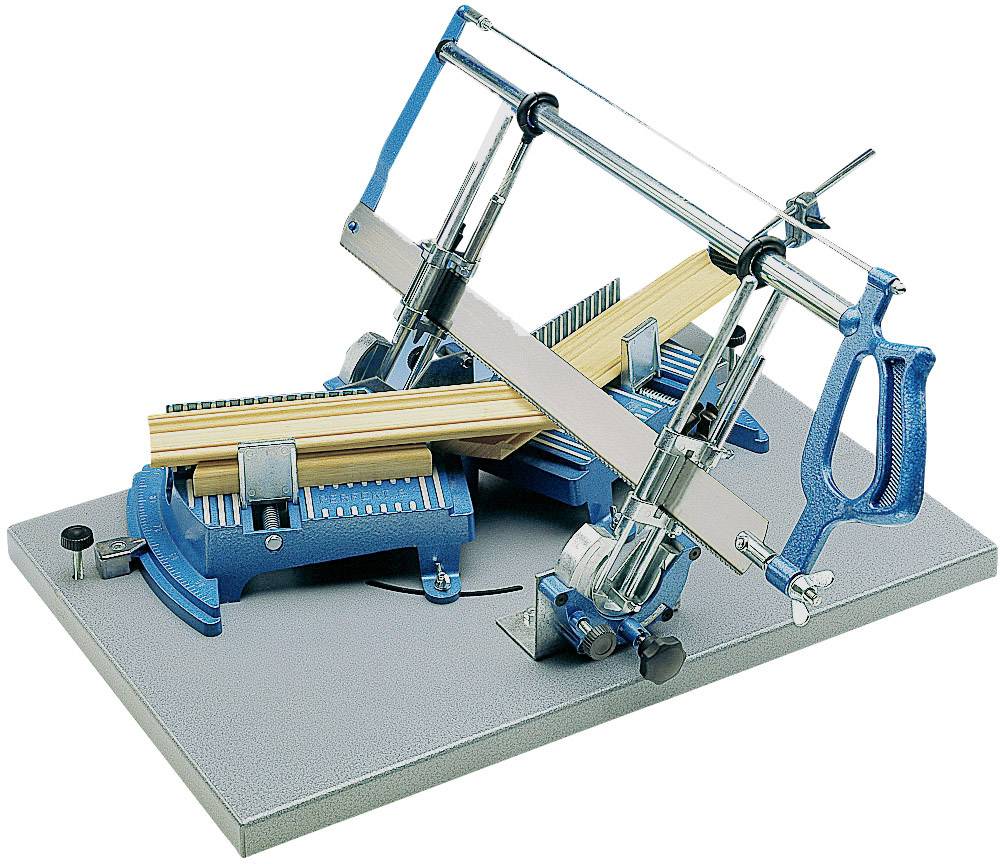

Küpper Perfect S 3030 Mitre saw
EAN:
Part number:
Item no:
Number
Total (€ 138.65 / piece)
€ 138.65
plus VAT.
Only 4 Piece(s) available
Technical specifications
- Table length: 600 mm
- Angle with increments vertical: at 90°/45°/30°
- angle with increments, horizontal: at 90°/45°/36°/30°/22.5°.
- Product type
Mitre saw
- Saw blade length
620 mm
- Material (handle)
Metal
- Content
1 pc(s)
- Cutting depth
(90/45°): 160/120 mm, vertically at 45°: 105 mm
- Cutting width
190 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1492127 Küpper Perfect S 3030 Mitre saw
Description
Each mitre angle is possible! Unwinkligkeiten, e.g. in the process of ceiling and skirting boards, with adjustable bevel accept & on saw table. Both strips when cutting on top of each other, so you will get a precise angle cut. The saw table can also be used for clamping of cut materials for gluing.
Features
- Table made of aluminum die-cast

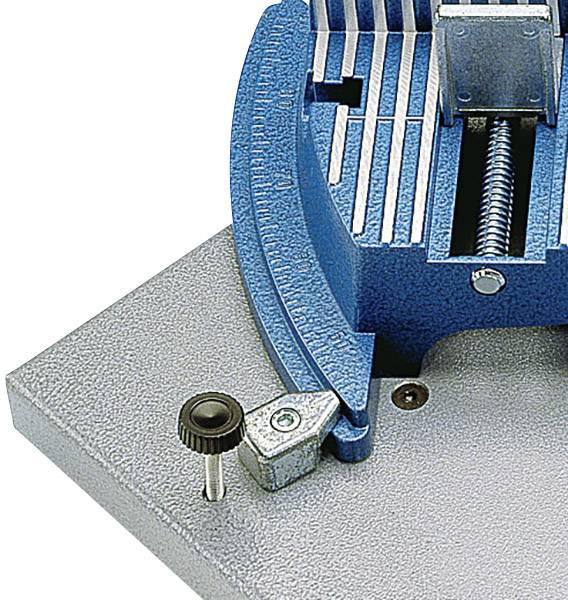

- angle with locking nut infinitely adjustable
- Cut depth adjustment
- With adjustable length stop
- With two material clamps
- Partially mounted.
Scope of delivery
- With Universal saw blade for wood, metal and plastic (teeth hardened, 14 teeth/").
Hints
This text is machine translated.
