Buy kwb 248665 HSS-Co Twist drill bit 6.5 mm Total length 101 mm M35 DIN 338 Cylinder shank 1 pc(s) | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

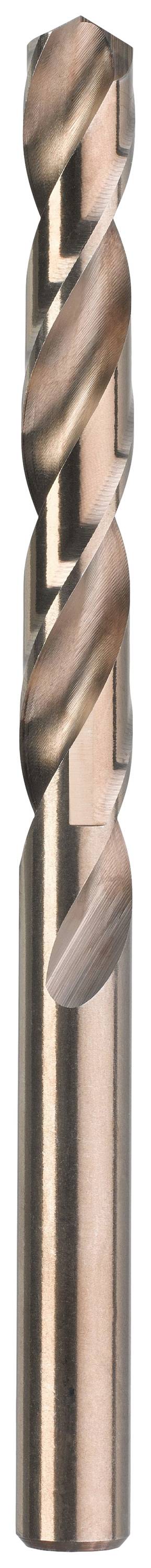

A rust-brown metal drill bit with spiral cutting edges, vertically aligned. Suitable for drilling into solid materials.

A rust-brown metal drill bit with spiral cutting edges, vertically aligned. Suitable for drilling into solid materials.

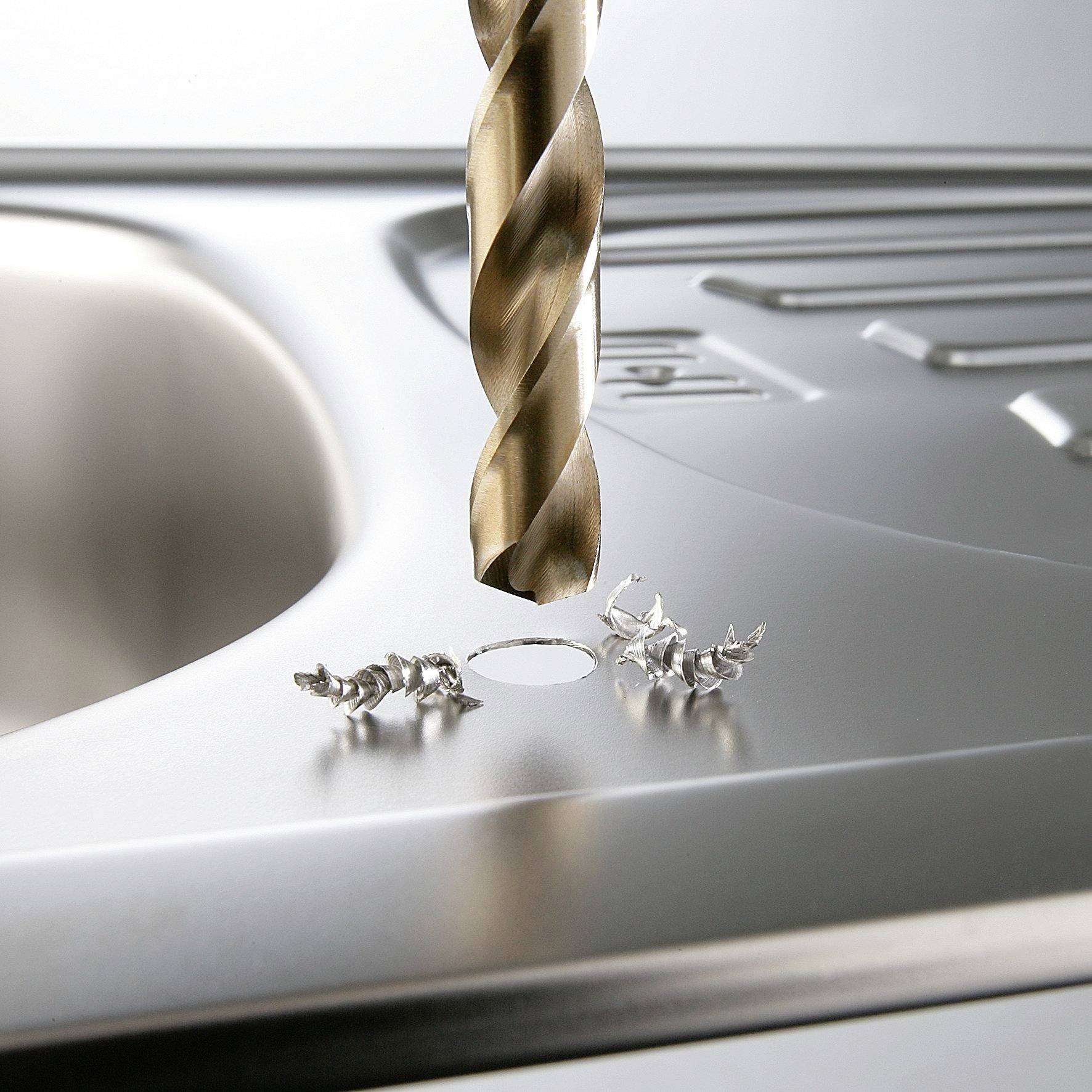

A metal drill pierces a stainless steel sheet, with some metal shavings lying around the drill hole.

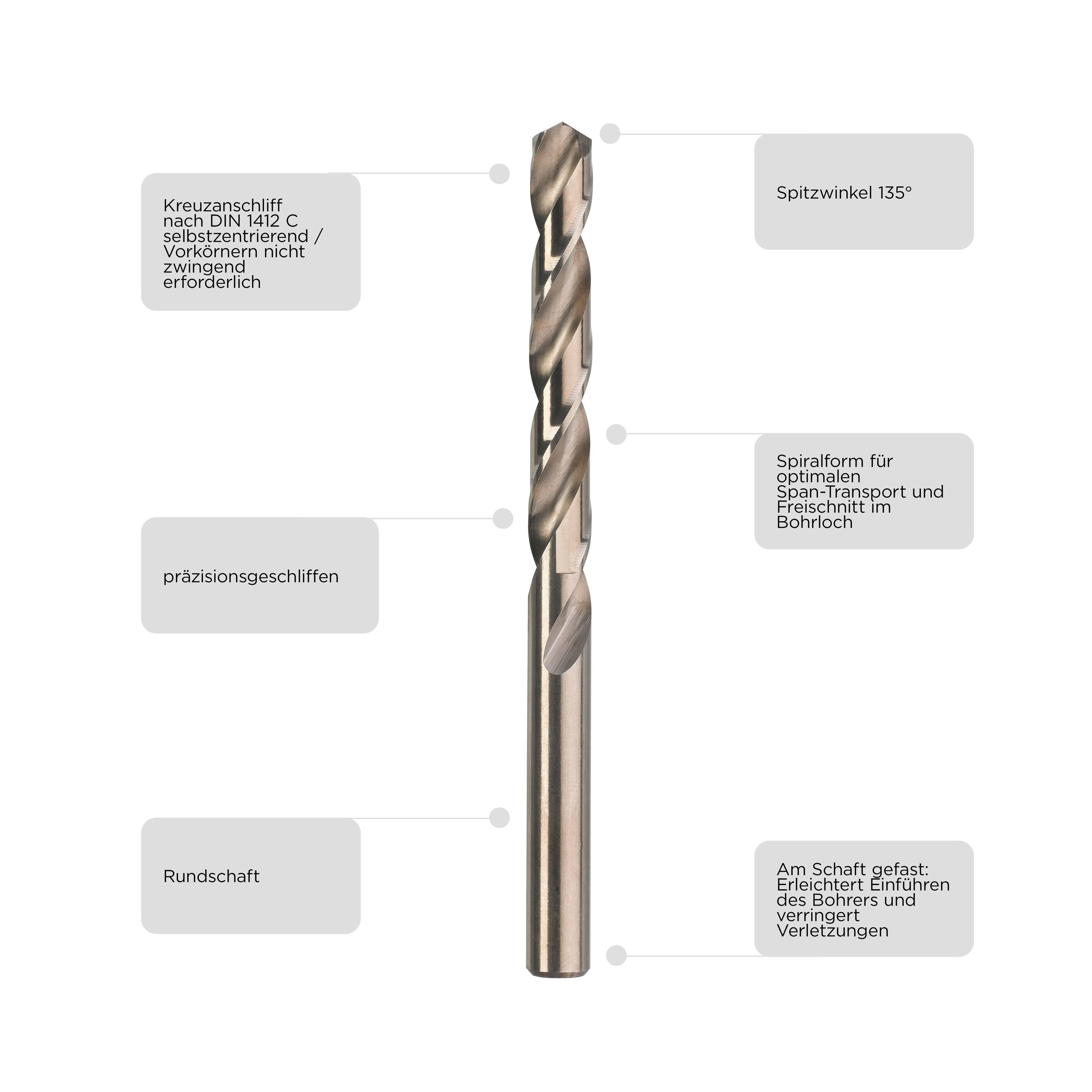

A drill bit with descriptions: 135° point angle, precision ground, cylindrical shaft, spiral flute for chip transport and chip clearance, cross-ground for centred drilling approach.

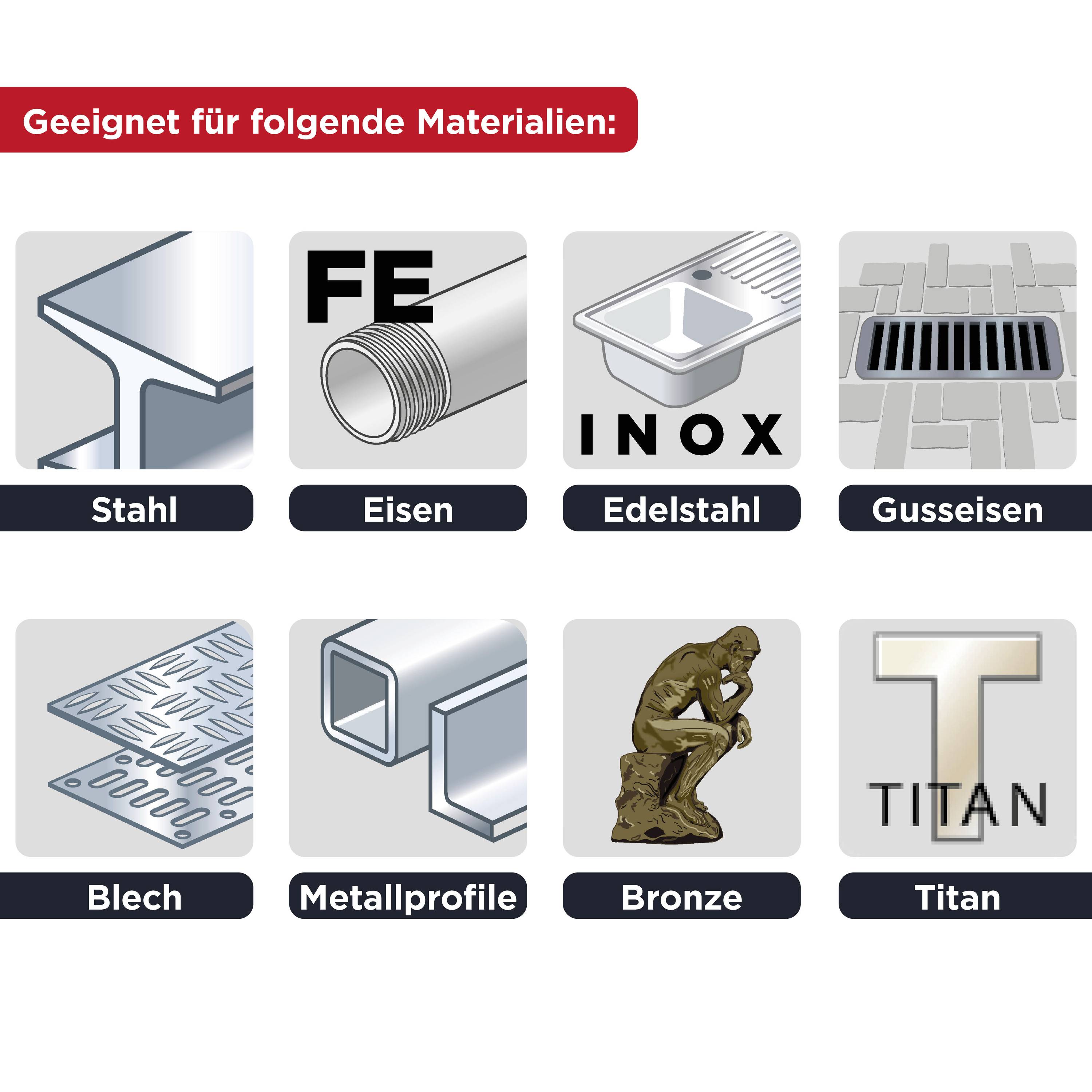

'Suitable for the following materials' with symbols: Steel, Iron, Stainless Steel, Cast Iron, Sheet Metal, Metal Profiles, Bronze, Titanium.

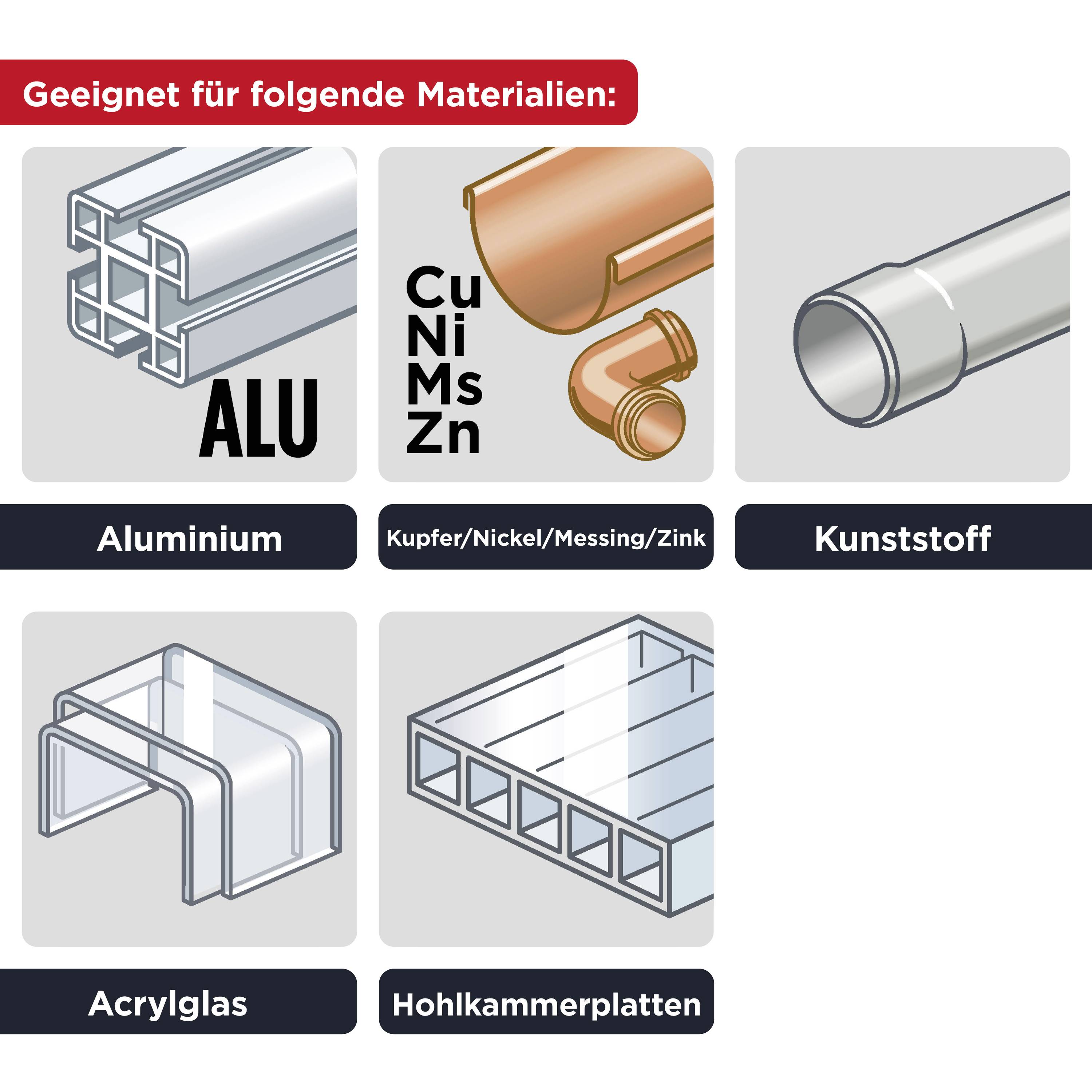

'Suitable for aluminium, copper/nickel/brass/zinc, plastic, acrylic glass, and hollow chamber panels.' Diagram with material illustrations.

1/5

kwb

Product type

Twist drill bit

Drill hole Ø

6.5 mm

Content

1 pc(s)

Material

HSS-Co

Material suitability

Stainless steel

Brass

Cast iron

Steel

Iron

Non-ferrous metal

Sheet metal

Plastic

Acrylic

Hollow chamber boards

EAN:

Part number:

Item no:

Fast track dispatch on Thu 12 Nov

6 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 8.49 / piece)

€ 8.49

incl. VAT

Only 6 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Cobalt HSS CO spiral drill, ø 6.5 mm

For alloyed and unalloyed steel, stainless steel V2A/V4A, gray cast iron, cast steel, bronze and plasticsCobalt alloy 5%, industrial qualityHigh heat resistance and low wear

Technical specifications

Product type: Twist drill bit

DIN standard: DIN 338

Drill hole Ø: 6.5 mm

Tip angle: 135°

Content: 1 pc(s)

Material: HSS-Co

Material properties: M35

Material suitability: Stainless steel
Brass
Cast iron
Steel
Iron
Non-ferrous metal
Sheet metal
Plastic
Acrylic
Hollow chamber boards

Tool holder: Cylinder shank

Shank Ø: 6.5 mm

Working length: 63 mm

Total length: 101 mm

Weight: 27 g

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2732397 kwb 248665 HSS-Co Twist drill bit 6.5 mm Total length 101 mm M35 DIN 338 Cylinder shank 1 pc(s)

Description

According to DIN 338, right-hand cut, type N, cobalt alloyed 5%, precision-ground, Bronze color, pointed angle 135°, with cross polished section to DIN 1412 C, self-centering, cylindrical, industrial quality, extreme heat resistance for difficult to machine materials such as alloyed and unalloyed steel, stainless steel V2A/V4A, cast iron and steel, bronze, plastics.

This text is machine translated.

Description

According to DIN 338, right-hand cut, type N, cobalt alloyed 5%, precision-ground, Bronze color, pointed angle 135°, with cross polished section to DIN 1412 C, self-centering, cylindrical, industrial quality, extreme heat resistance for difficult to machine materials such as alloyed and unalloyed steel, stainless steel V2A/V4A, cast iron and steel, bronze, plastics.

This text is machine translated.
