Buy kwb 248668 HSS-Co Twist drill bit 6.8 mm Total length 109 mm M35 DIN 338 Cylinder shank 1 pc(s) | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

Metal drill bits with spiral grooves, used for drilling holes in materials such as metal or wood.

Metal drill bits with spiral grooves, used for drilling holes in materials such as metal or wood.

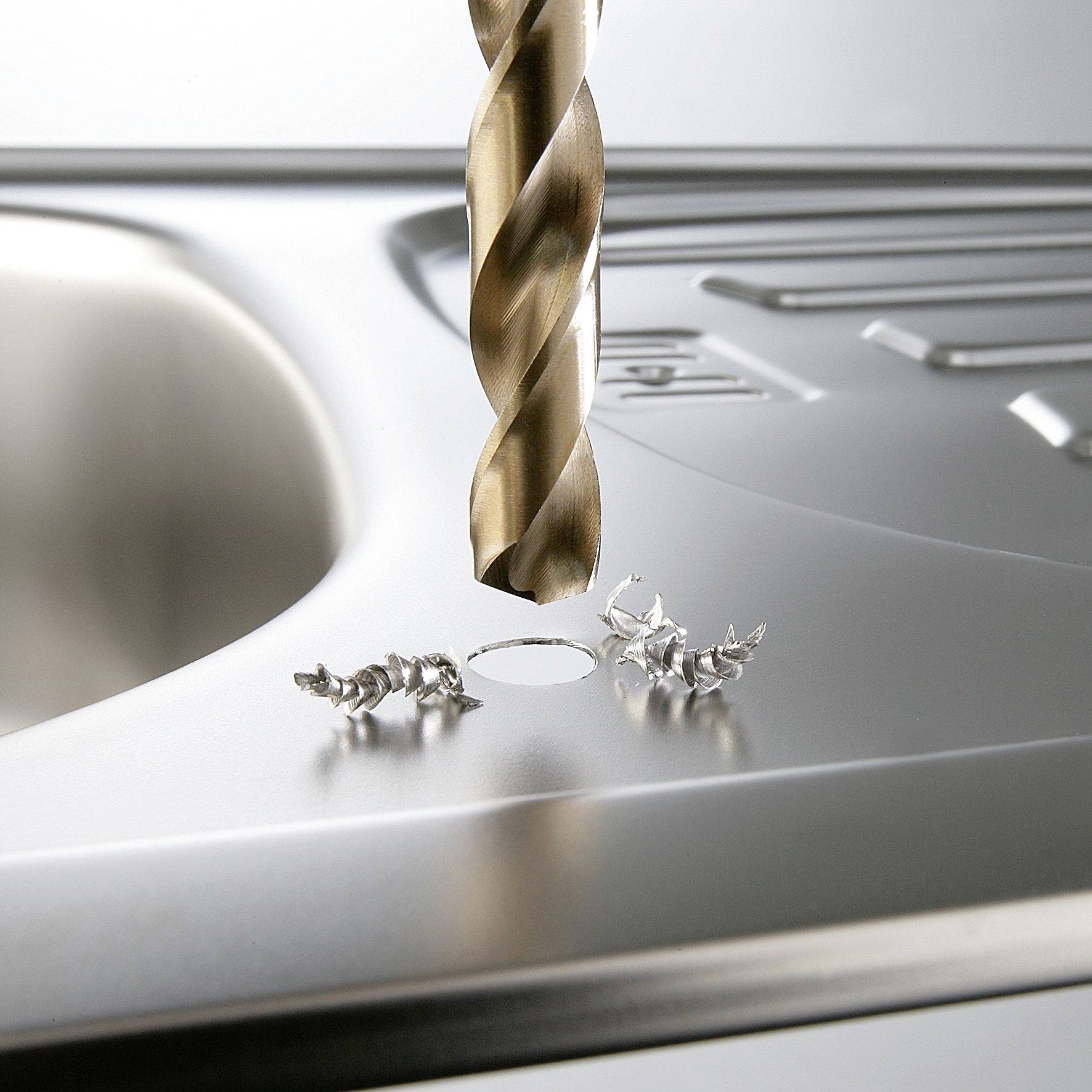

View of a drill bit drilling into a silver metal piece, surrounded by metal shavings on the surface.

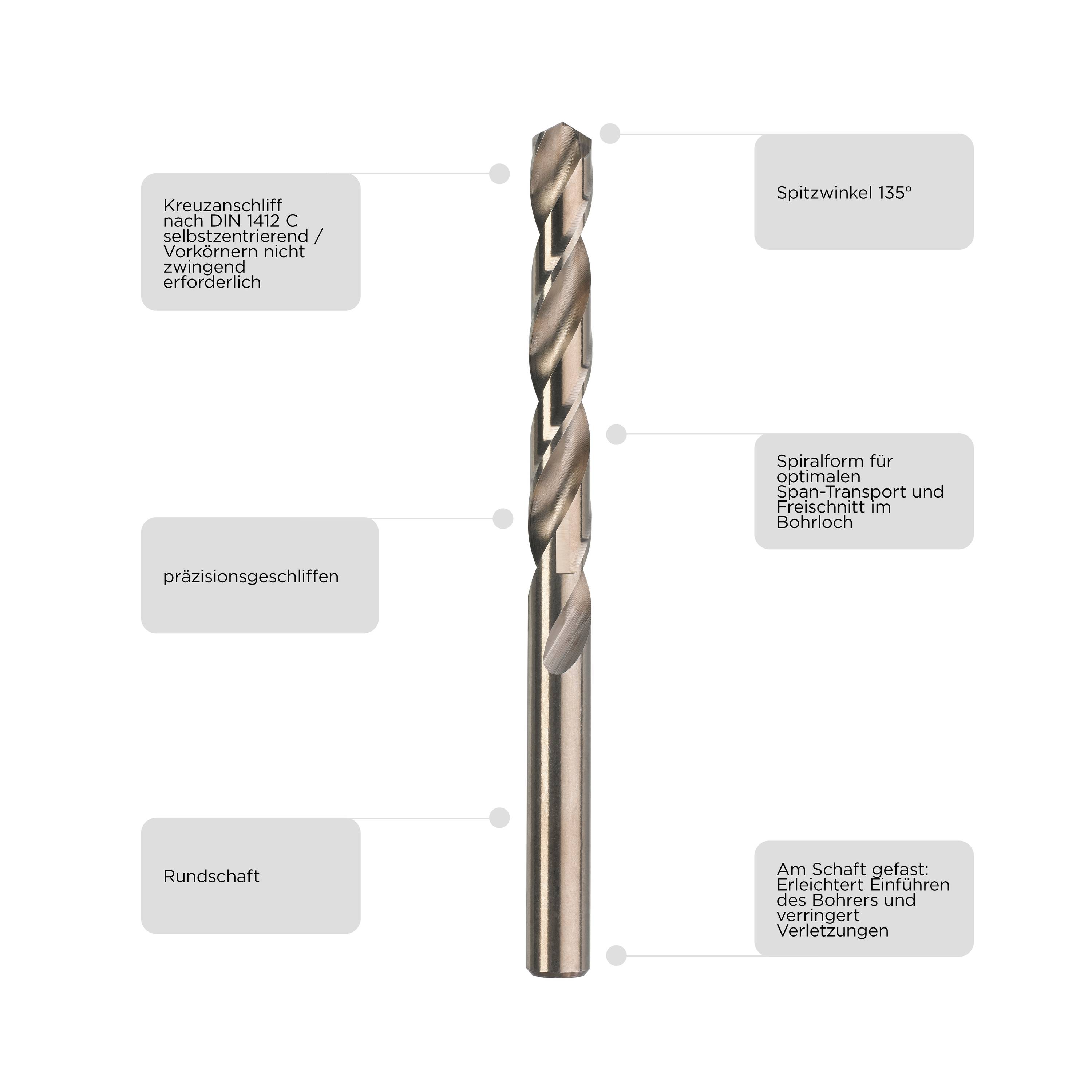

'Metal drill bit with cross-ground cutting edge, point angle 135°, precision-ground, round shank, spiral design for optimal chip removal.'

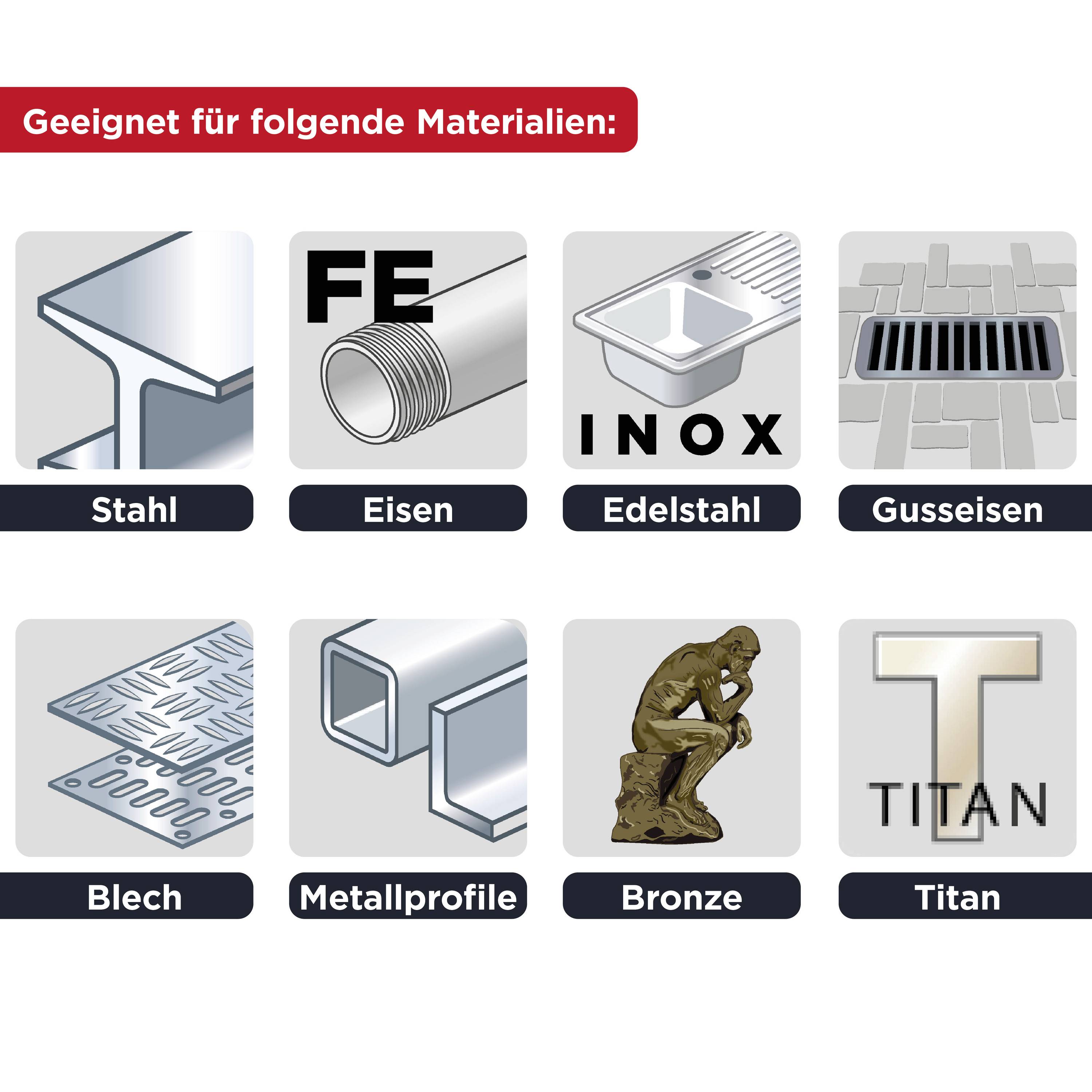

'Suitable for the following materials:' shows symbols for steel, iron, stainless steel, cast iron, sheet metal, metal profiles, bronze and titanium.

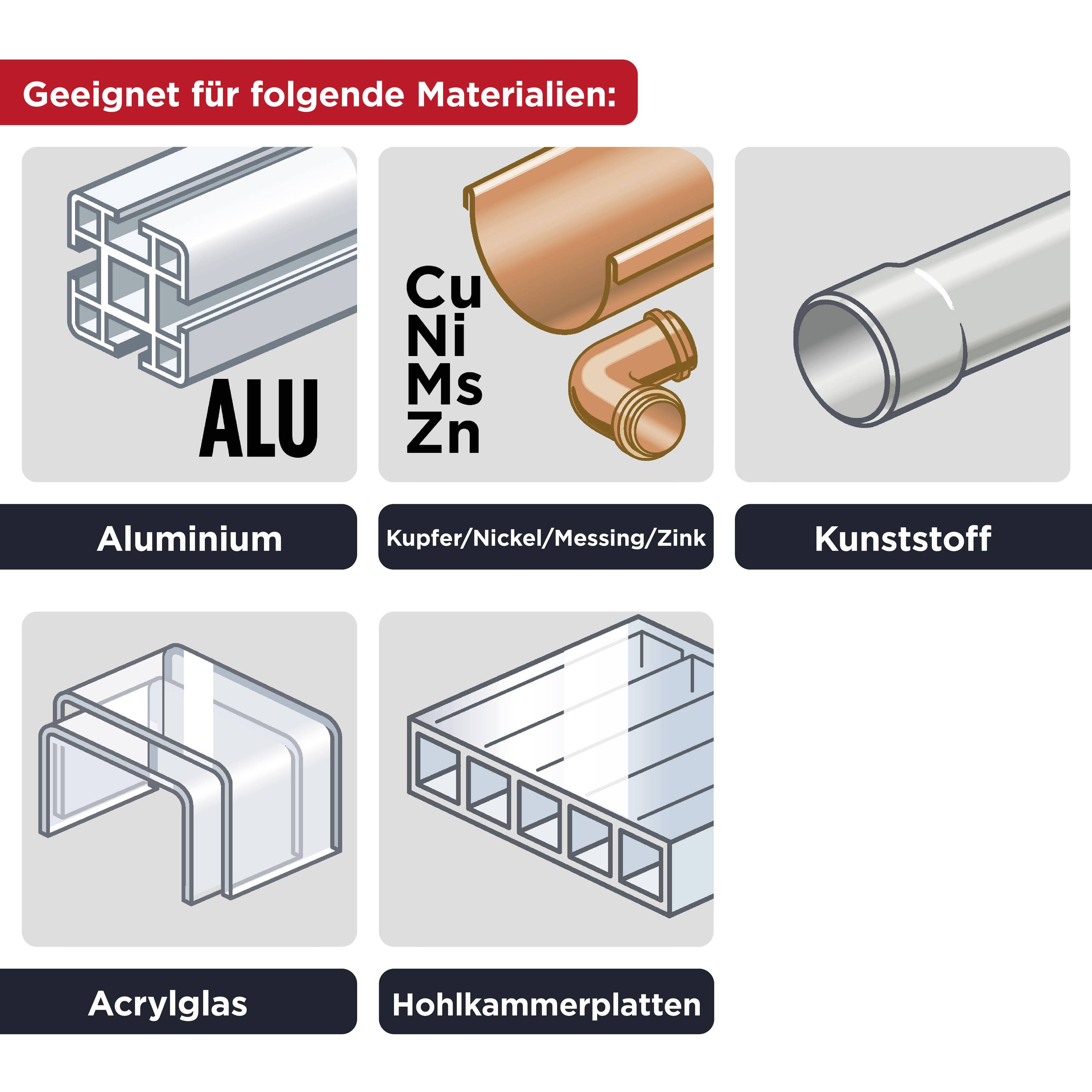

Suitable for use with aluminium, copper/nickel/brass/zinc, plastic, acrylic glass and hollow chamber panels.

1/5

kwb

Product type

Twist drill bit

Drill hole Ø

6.8 mm

Content

1 pc(s)

Material

HSS-Co

Material suitability

Stainless steel

Brass

Cast iron

Steel

Iron

Non-ferrous metal

Sheet metal

Plastic

Acrylic

Hollow chamber boards

EAN:

Part number:

Item no:

Fast track dispatch on Thu 12 Nov

1 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 11.99 / piece)

€ 11.99

incl. VAT

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Cobalt HSS CO spiral drill, ø 6.8 mm

For alloyed and unalloyed steel, stainless steel V2A/V4A, gray cast iron, cast steel, bronze and plasticsCobalt alloy 5%, industrial qualityHigh heat resistance and low wear

Technical specifications

Product type: Twist drill bit

DIN standard: DIN 338

Drill hole Ø: 6.8 mm

Tip angle: 135°

Content: 1 pc(s)

Material: HSS-Co

Material properties: M35

Material suitability: Stainless steel
Brass
Cast iron
Steel
Iron
Non-ferrous metal
Sheet metal
Plastic
Acrylic
Hollow chamber boards

Tool holder: Cylinder shank

Shank Ø: 6.8 mm

Working length: 69 mm

Total length: 109 mm

Weight: 33 g

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2732398 kwb 248668 HSS-Co Twist drill bit 6.8 mm Total length 109 mm M35 DIN 338 Cylinder shank 1 pc(s)

Description

According to DIN 338, right-hand cut, type N, cobalt alloyed 5%, precision-ground, Bronze color, pointed angle 135°, with cross polished section to DIN 1412 C, self-centering, cylindrical, industrial quality, extreme heat resistance for difficult to machine materials such as alloyed and unalloyed steel, stainless steel V2A/V4A, cast iron and steel, bronze, plastics.

This text is machine translated.

Description

According to DIN 338, right-hand cut, type N, cobalt alloyed 5%, precision-ground, Bronze color, pointed angle 135°, with cross polished section to DIN 1412 C, self-centering, cylindrical, industrial quality, extreme heat resistance for difficult to machine materials such as alloyed and unalloyed steel, stainless steel V2A/V4A, cast iron and steel, bronze, plastics.

This text is machine translated.
