kwb 258630 HSS Metal twist drill bit 3 mm Total length 61 mm M2 DIN 338 Cylinder shank 1 pc(s)

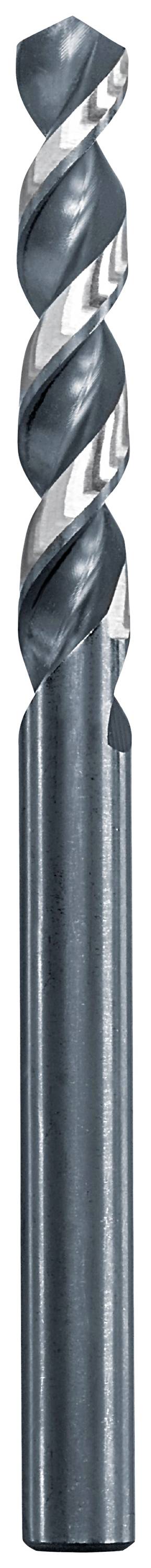

A metal drill bit with spiral-shaped cutting edges, suitable for precise drilling in solid materials.

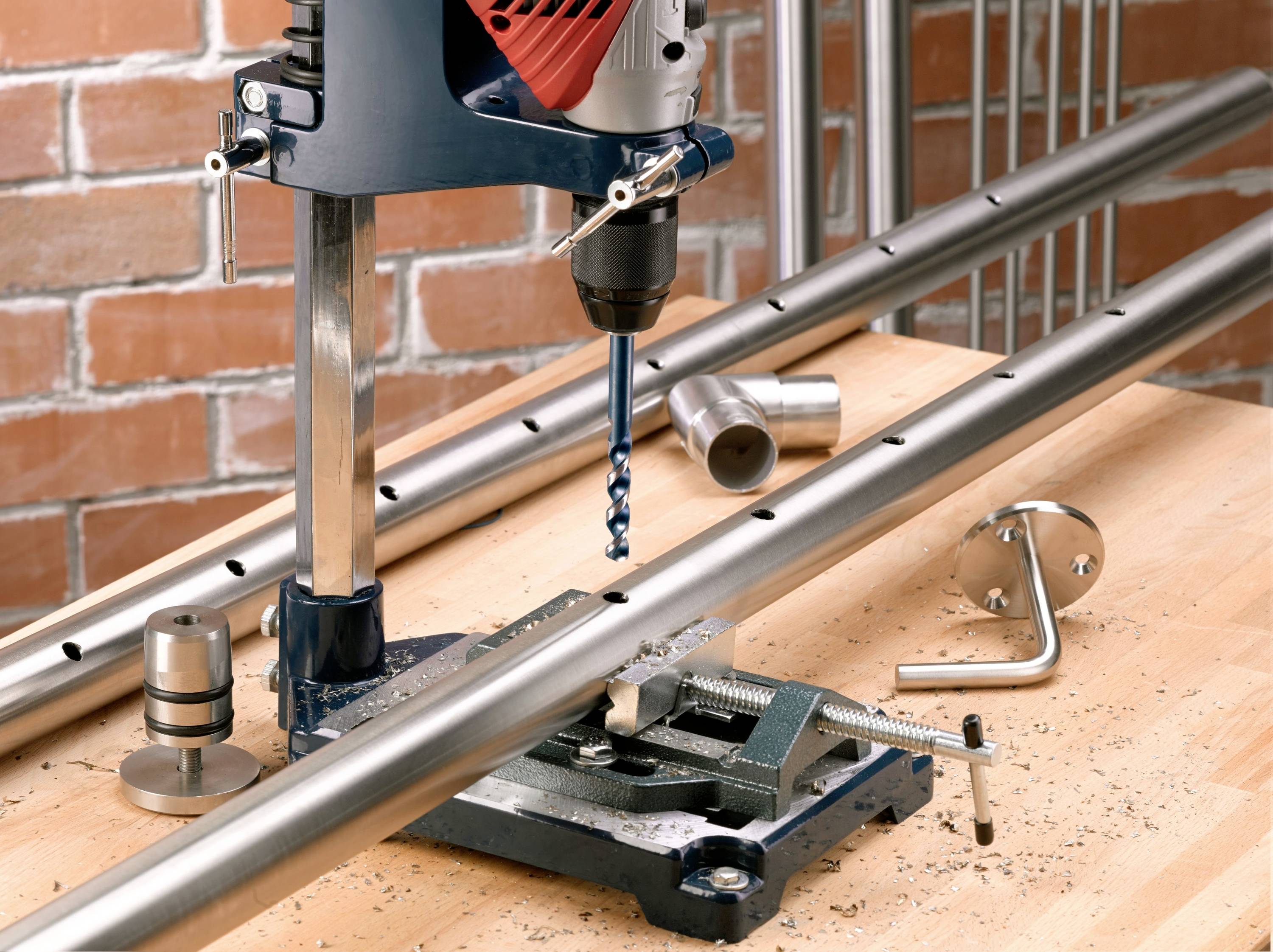

An electrically powered drill with a drill stand is drilling holes in a metal pipe on a workbench, surrounded by tools.

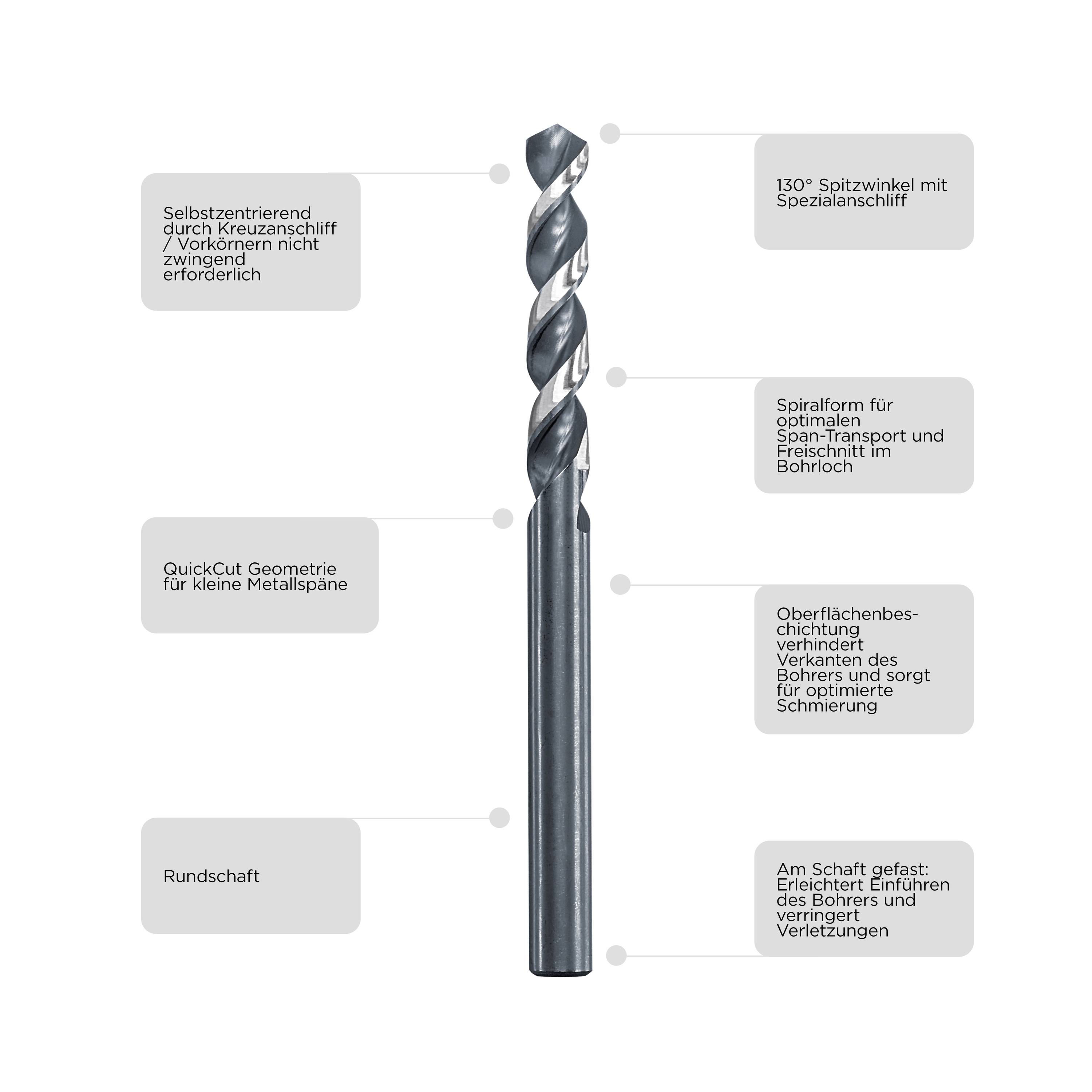

A metal spiral drill bit. Markings: self-centring, 130° point angle, optimised chip evacuation, specialised surface structure, round shank, secure grip on shaft.

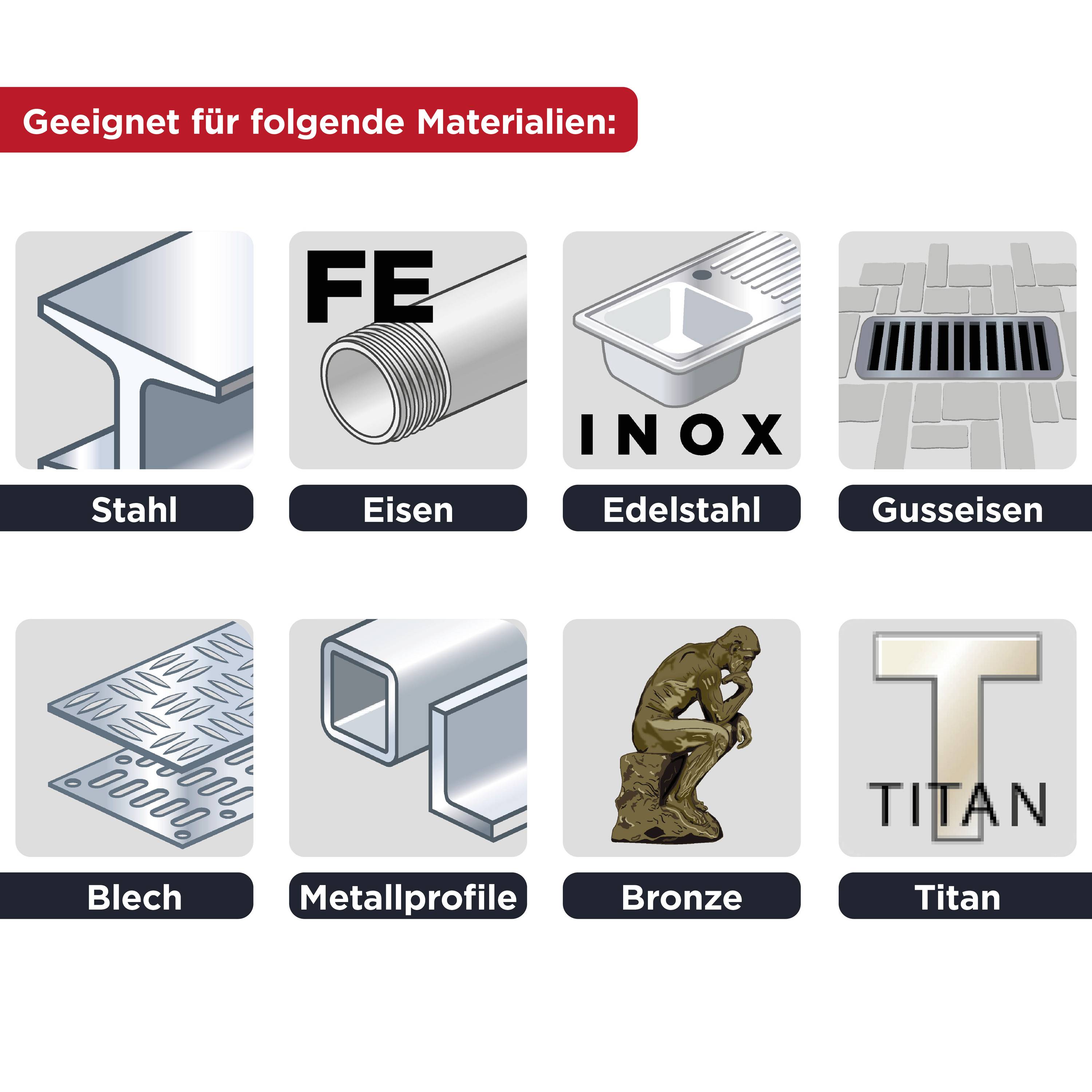

'Suitable for the following materials: steel, iron, stainless steel, cast iron, sheet metal, metal profiles, bronze, titanium.' Symbols represent materials.

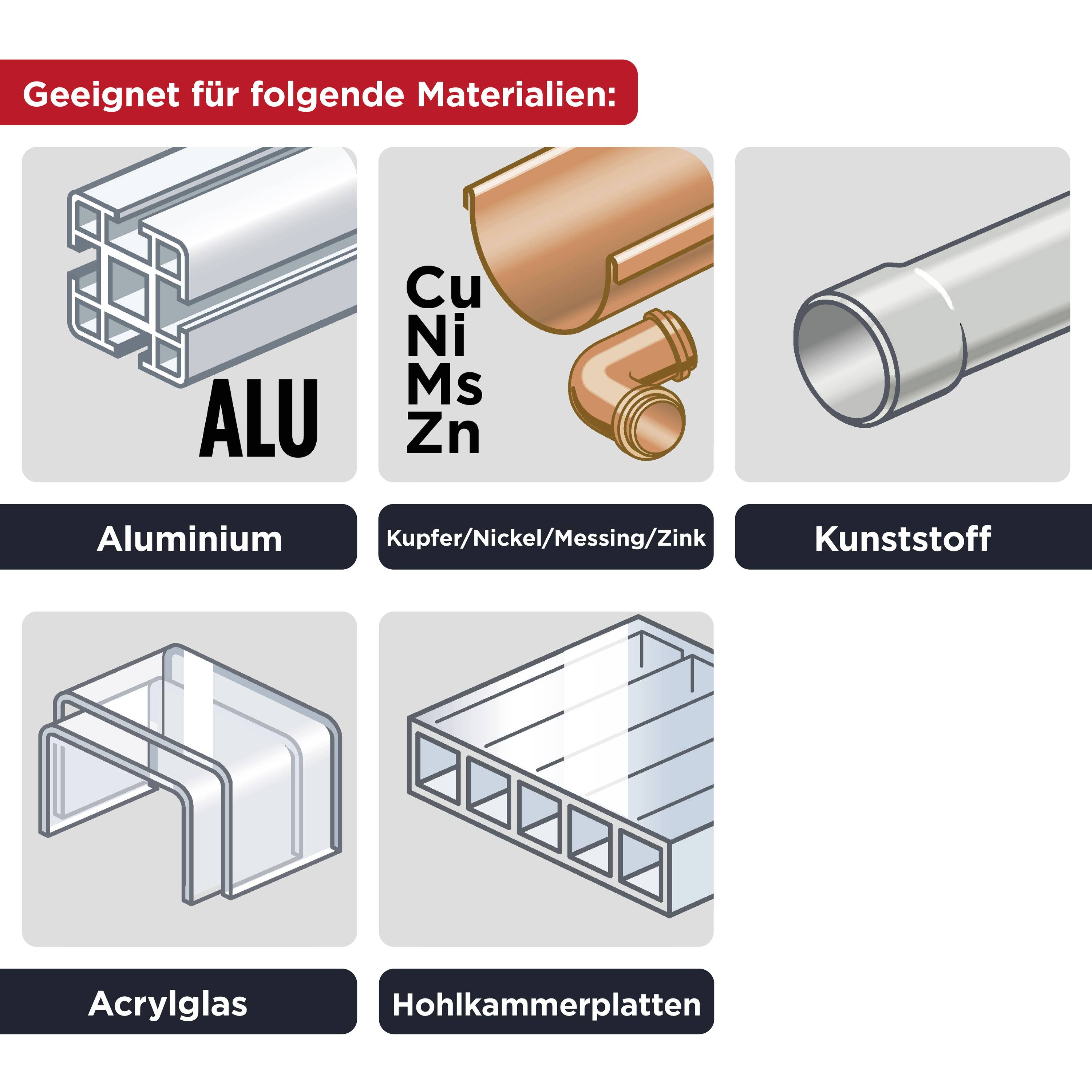

'Suitable for the following materials' with illustrations: Aluminium, Copper/Nickel/Brass/Zinc, Plastic, Acrylic Glass, Hollow Chamber Panels.
1/5
Product type
Metal twist drill bit
Drill hole Ø
3 mm
Content
1 pc(s)
Material
HSS
Material suitability
Stainless steel
Brass
Cast iron
Steel
Iron
Non-ferrous metal
Sheet metal
Plastic
Acrylic
Hollow chamber boards
EAN:
Part number:
Item no:
Fast track dispatch on Thu 12 Nov
7 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 2.29 / piece)
€ 2.29
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 7 Piece(s) available
14-day return policy included
Report legal concerns

Technical specifications

Product type

Metal twist drill bit

DIN standard

DIN 338

Drill hole Ø

3 mm

Tip angle

130°

Content

1 pc(s)

Material

HSS

Material properties

M2

Material suitability

Stainless steel

Brass

Cast iron

Steel

Iron

Non-ferrous metal

Sheet metal

Plastic

Acrylic

Hollow chamber boards

Tool holder

Cylinder shank

Shank Ø

3 mm

Working length

18 mm

Total length

61 mm

Weight

11 g

UKCA

not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1917965 kwb 258630 HSS Metal twist drill bit 3 mm Total length 61 mm M2 DIN 338 Cylinder shank 1 pc(s)

Description

HSS twist drill bits, HI-NOX M2 ground, right-hand cut, helical, Color black/Blank, 130 ° point angle with special polished finish, special spir finish with "Quick Cut" geometry for small metal shavings, strengthened core and spiral shoulder, specially shaped short helical groove, extra stable, for optimum chip removal, extremely heat resistant, gives an optimum cutting action, in particular in all stainless steel places, also suitable for all types of steel, cast iron and cast steel. For force and energy-saving drilling with battery or cabled machines.

This text is machine translated.

Features

  • Up to 10% faster drilling in stainless steel
  • Up to 3-times longer life than conventional cobalt drill bit
  • Special bevel for fast extraction of metal shavings
  • Less effort for man and machine
