Kyoritsu KEW Mate 2000 A Handheld multimeter, Clamp meter Digital CAT III 300 V, CAT II 600 V Display (counts): 3400
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 163.86 / piece)
€ 163.86
plus VAT.
Only 2 Piece(s) available
Highlights & Details
KEW Mate 2000 A
- CAT III 300 V, CAT II 600 V
Technical specifications
- Voltage reading range DC (min.)
340.00 mV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
600 V
- V AC reading range (min.)
3.4 V
- V AC reading range (max.)
600 V
- A DC reading range (max.)
60 A
- Amperage reading range AC (max.)
60 A
- Reading range - resistance
340 Ω - 34.0 MΩ
- Frequency reading range
3.4 kHz - 300.0 kHz
- Power supply (details)
2 x 1.5 V batteries type AAA
- Height
24 mm
- Width
87 mm
- Length
128 mm
- Weight
210 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 300 V
CAT II 600 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
KEW Mate 2000 A
- Display
Digital
- Display (counts)
3400
- Dim
(L x W x H) 128 x 87 x 24 mm
- Opening range of current clamps
6 mm
FALSE
Other
Documents & Downloads
Datasheet
Datasheet 1893094 Kyoritsu KEW Mate 2000 A Handheld multimeter, Clamp meter Digital CAT III 300 V, CAT II 600 V Display (counts): 3400
Datasheet 1893094 Kyoritsu KEW Mate 2000 A Handheld multimeter, Clamp meter Digital CAT III 300 V, CAT II 600 V Display (counts): 3400
User & Safety Instructions
User & Safety Instructions 1893094 Kyoritsu KEW Mate 2000 A Handheld multimeter, Clamp meter Digital CAT III 300 V, CAT II 600 V Display (counts): 3400
Description

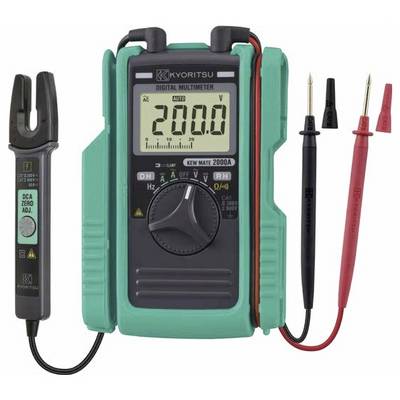

Digital multimeter with analogue bar and current pliers with open clip for cable diameter up to 6 mm.
This text is machine translated.
This text is machine translated.
Features
- Channel test
- Sleep function
- Data Hold function
Scope of delivery
- KEW MATE with test lead
- User manual
- Clip-on ammeter adapter
- Holster
