Kyoritsu KEW Mate 2001 A Handheld multimeter, Clamp meter Digital CAT II 600 V, CAT III 300 V Display (counts): 3400
EAN:
Part number:
Item no:
Datasheet (PDF)
1 Piece(s)
Do your needs go beyond this?
Sales and shipping:
Number
Total (€ 172.26 / piece)
€
Only 1 Piece(s) available
Highlights & Details
- CAT II 600 V, CAT III 300 V
- Voltage Measurement_AC/DC
- Current measurement: AC/DC
Technical specifications
- Voltage reading range DC (min.)
340 mV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
600 V
- V AC reading range (min.)
3.4 V
- V AC reading range (max.)
600 V
- A DC reading range (max.)
100 A
- Amperage reading range AC (max.)
100 A
- Reading range - resistance
340 Ω zł49.00 MΩ
- Frequency reading range
3.4 kHz - 10.00 kHz
- Power supply (details)
2 x 1.5 V batteries type AAA
- Height
91 mm
- Width
27 mm
- Length
128 mm
- Weight
220 g
Manufacturer's standards (no certificate)
- Reading category
CAT II 600 V
CAT III 300 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
KEW Mate 2001 A
- Display
Digital
- Display (counts)
3400
- Dim
(L x W x H) 128 x 27 x 91 mm
- Opening range of current clamps
10 mm
FALSE
Other
Documents & Downloads
Datasheet
Datasheet 1893095 Kyoritsu KEW Mate 2001 A Handheld multimeter, Clamp meter Digital CAT II 600 V, CAT III 300 V Display (counts): 3400
Datasheet 1893095 Kyoritsu KEW Mate 2001 A Handheld multimeter, Clamp meter Digital CAT II 600 V, CAT III 300 V Display (counts): 3400
User & Safety Instructions
User & Safety Instructions 1893095 Kyoritsu KEW Mate 2001 A Handheld multimeter, Clamp meter Digital CAT II 600 V, CAT III 300 V Display (counts): 3400
Description

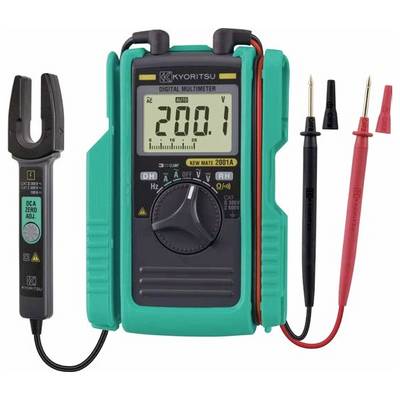

Digital multimeter with analogue bar and current pliers with open clip for cable diameter up to 10 mm.
This text is machine translated.
This text is machine translated.
Features
- Channel test
- Sleep function
- Data Hold function
Scope of delivery
- KEW MATE with test lead
- User manual
- Clip-on ammeter adapter
- Holster
