Buy Metrel MD 9231 Clamp meter Digital CAT IV 600 V, CAT III 1000 V Display (counts): 6000

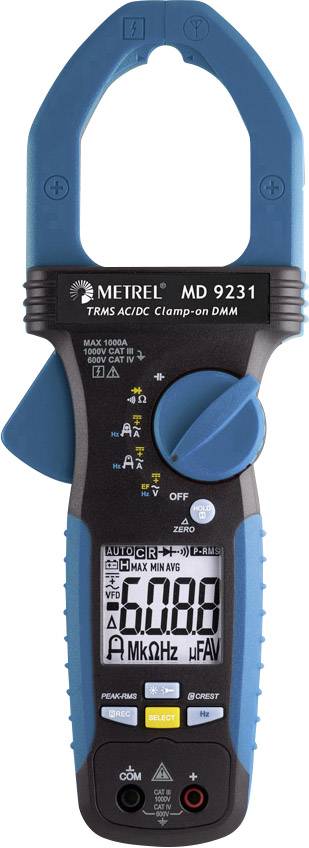

A blue-black electricity meter with a digital display shows '6.088 A'. It has functions for measuring current, voltage, and resistance.

1/2

Fast track dispatch on Wed, 9 Sep

3 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 242.86 / piece)

€ 242.86

plus VAT.

Only 3 Piece(s) available

Report legal concerns

Highlights & Details

MD 9231Digital Industry TRMS AC/DC current clamp meter

DC and TRMS AC current measurement up to 1000 V
DC and TRMS AC current measurement up to 1000 A
Resistance measurement
Acoustic continuity tester
Diode test
Frequency measurement.
Capacitance testing
LCD display with background lighting, 3-5/6 Digit, 6000 counter
torch
Data Hold function

Technical specifications

Resistance: Sfr 600.0 Ω, 6,000 Ω, 60.00 Ω ± (1.0% of the measurement value + 5 digits)
Capacity: 200.0 μF, 2,500 μF ± (2.0% of the measurement value + 4 digits)
Diode test 2,000 V ± (1.5% of reading + 5 digits).

Product type: Clamp meter

Voltage DC reading range (max.): 1000 V

V AC reading range (max.): 1000 V

Height: 44 mm

Width: 258 mm

Length: 94 mm

Weight: 392 g

: Manufacturer's standards (no certificate)

Reading category: CAT IV 600 V
CAT III 1000 V

Type: MD 9231

Display: Digital

Display (counts): 6000

Dim: (L x W x H) 94 x 258 x 44 mm

Opening range of current clamps: 51 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1599731 Metrel MD 9231 Clamp meter Digital CAT IV 600 V, CAT III 1000 V Display (counts): 6000

Description

The MD 9231 is a TRMS AC and DC current clamp meter for industrial applications with large clamp opening and is suitable for the measurement of currents up to 1000 A. Important Features are the capacity and frequency measurement, the built-in VFD function enables it with the device real values in accordance with the frequency to measure. The MD 9231 has a wide range of additional functions, including data and max-hold functions, automatic cut-off, automatic range selection and a relatively zero function. It uses state-of-the-art measuring technology and is housed in a sturdy housing in industrial quality. It also has a torch for the working in dark environments.
