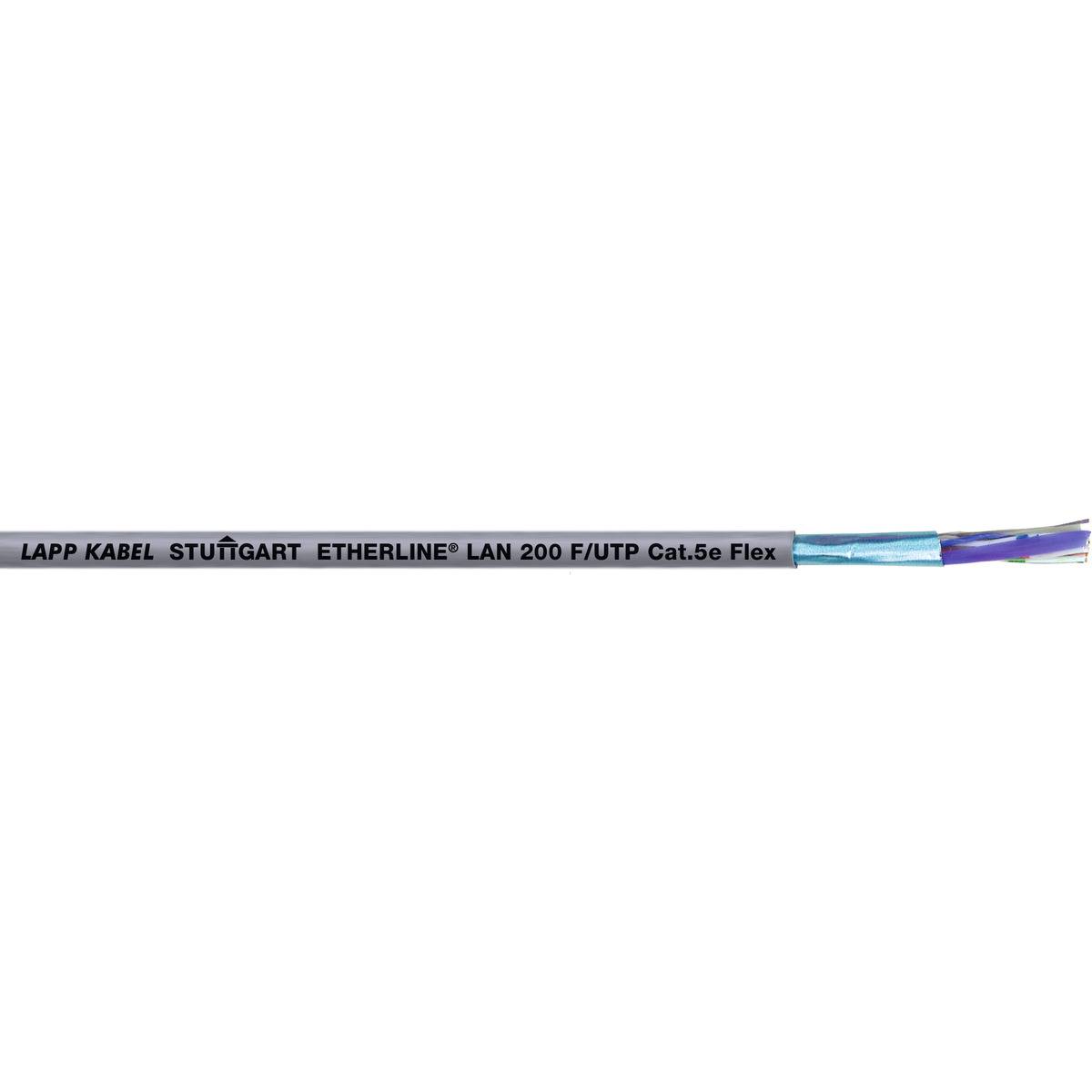

LAPP 2170172/1000 Network cable CAT 5 S/UTP 4 x 2 x 0.13 mm² Grey 1000 m
EAN:
Part number:
Item no:
Product type
Network cable
Specification
CAT 5
Shielding
S/UTP
Cable type
UNITRONIC® LAN
No. of leads
8 x
Datasheet (PDF)
Number
Total (1 m = € 1.19)
€ 1,192.44
plus VAT.
Only 1 Set(s) available
Highlights & Details
UNITRONIC® Network cables CAT 5e - Halogen-free
Technical specifications
- Product type
Network cable
CAT 5
S/UTP
- Cable type
UNITRONIC® LAN
- No. of leads
8 x
- Cross section (each core)
0.13 mm²
- Cross section
4 x 2 x 0.13 mm²
- Cable features
Flexible
Halogen-free
Simplex
Common shield
- Outside Ø
5.40 mm
- Factory colour
Grey
- Max. frequency
100 MHz
- Content
1000 m
- AWG max.
26
- Packaged
No
- Sold per metre
No
- Manufacturer part #
2170172/1000
- Type
UNITRONIC LAN 200 F/UTP Cat.5eLSZH FLEX
- Insulation material
PVC
- Twisted pair cabling (part 1)
Yes (1)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1334580 LAPP 2170172/1000 Network cable CAT 5 S/UTP 4 x 2 x 0.13 mm² Grey 1000 m
User & Safety Instructions
User & Safety Instructions 1334580 LAPP 2170172/1000 Network cable CAT 5 S/UTP 4 x 2 x 0.13 mm² Grey 1000 m
Description
The UNITRONIC® network cable CAT 5e with UTP/S-H shielding is for structured cabling systems and meets the requirements according to EIA/TIA-568 and TSB36 as well as ISO/IEC 11801 or EN 50173 (Class D).
Feature:
UTP/S-H = FTP (film-shielded drilled wire pair).
This text is machine translated.
Feature:
UTP/S-H = FTP (film-shielded drilled wire pair).
This text is machine translated.
