Name: Laserliner CondenseSpot Pro Hygrometer
Brand: Laserliner
SKU: 2445731
Availability: InStock

An infrared thermometer displays temperature readings on a display. Device for precise temperature measurements in technical applications.

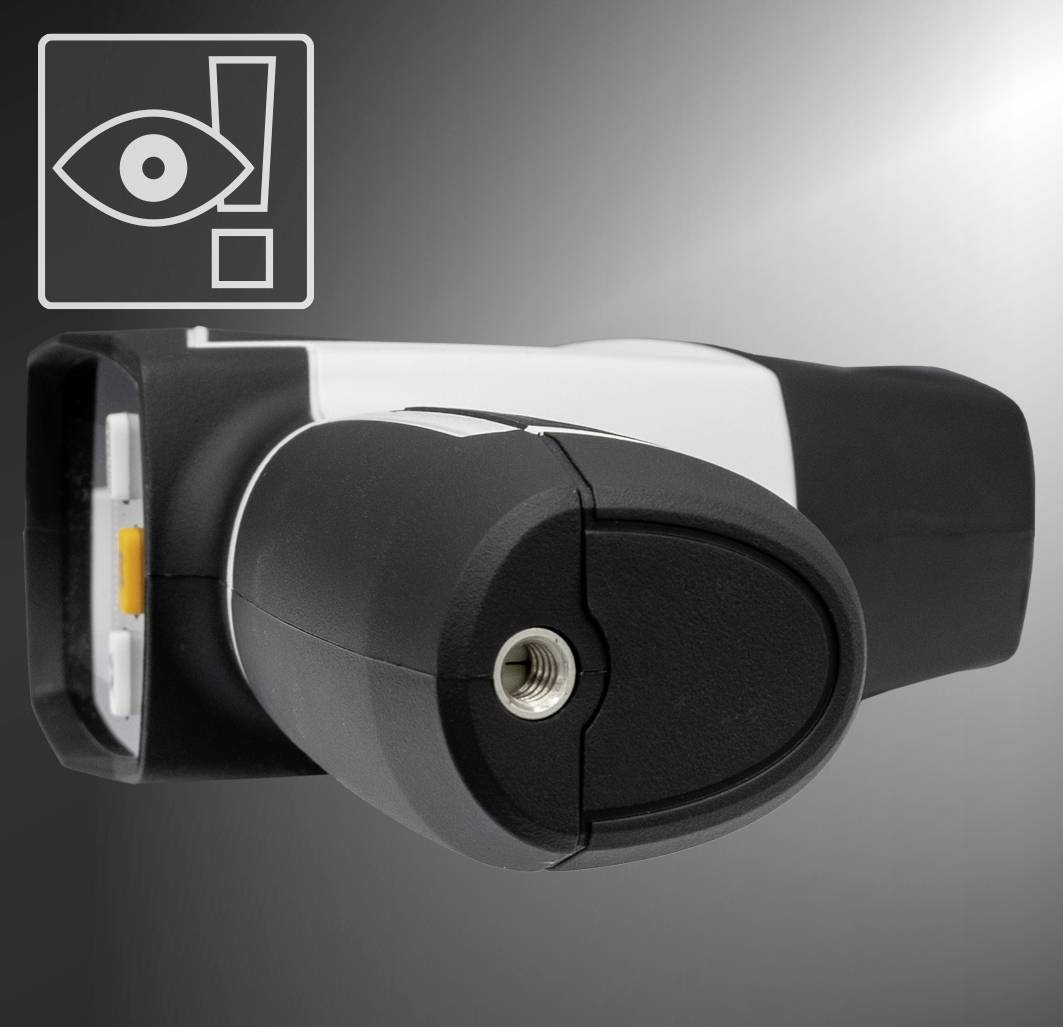

A black and white handheld device with a focus on the camera aperture and a graphical eye symbol in the top left corner.

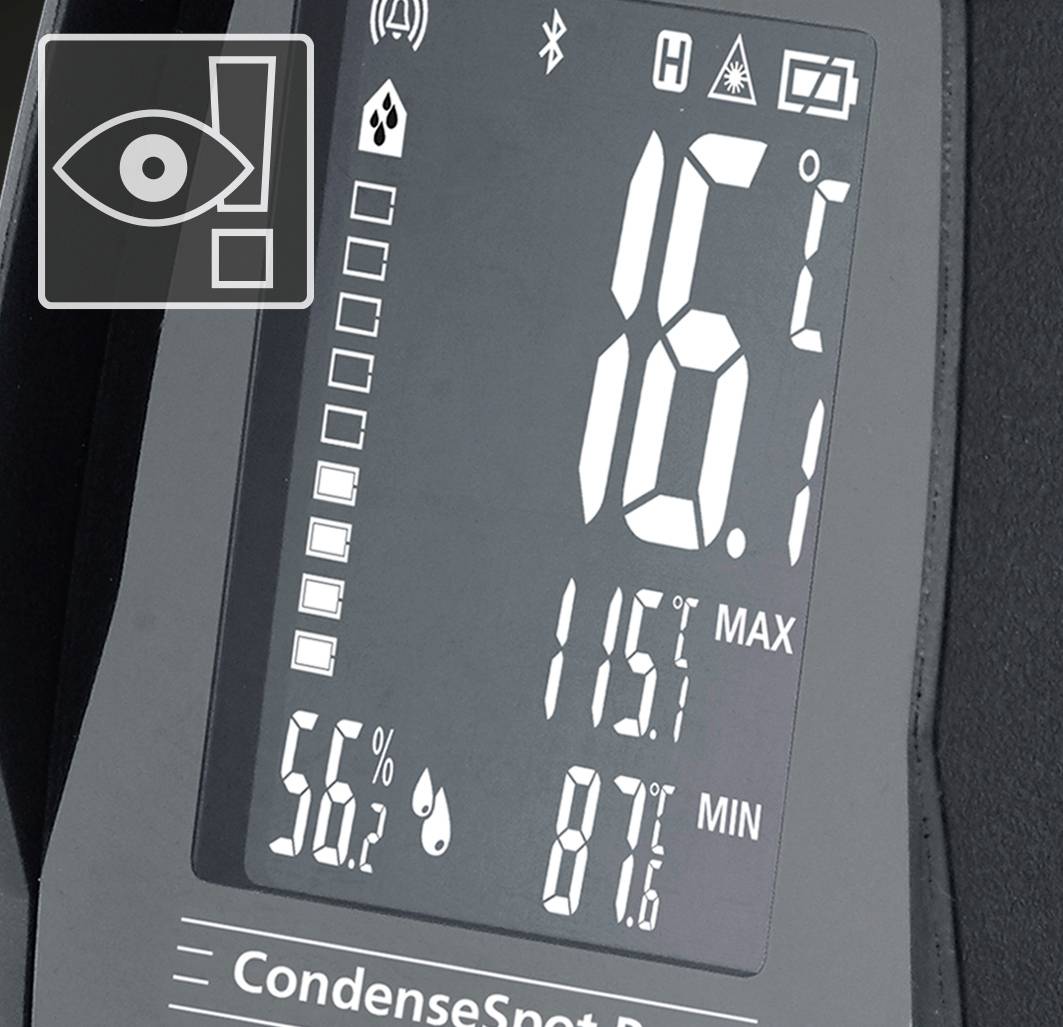

Digital display of a hygrometer showing temperature 16.1°C, humidity 56.2%, and high water accumulation at 87.6%.

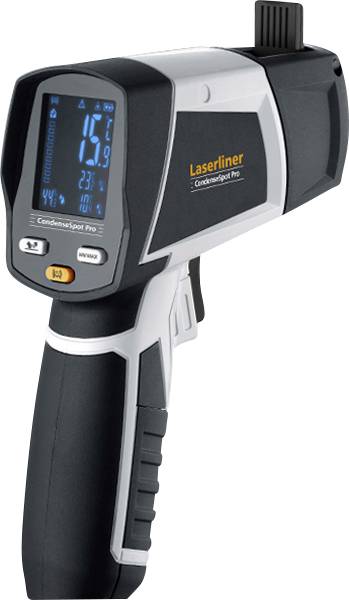

A digital infrared thermometer displays a temperature of 15.9 degrees Celsius on its screen. Device in black and grey.

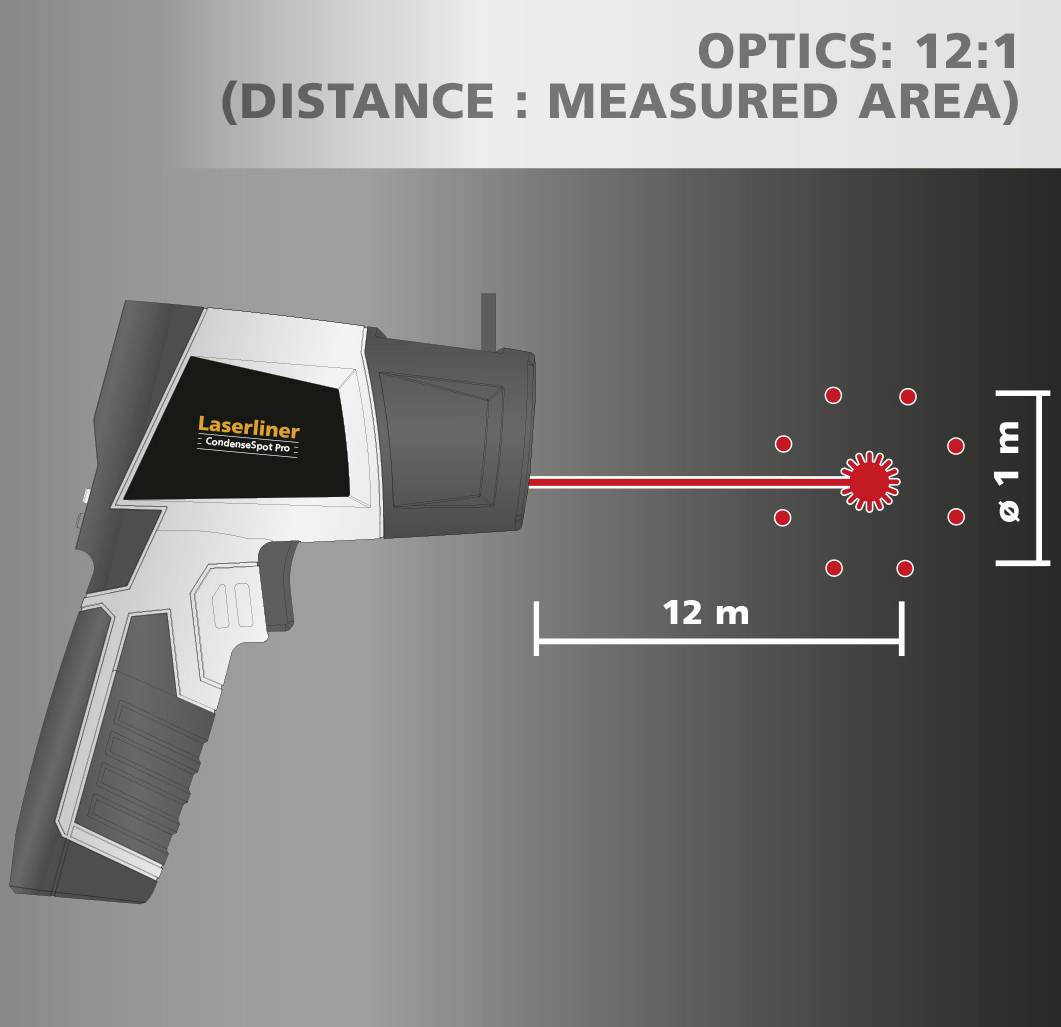

Infrared thermometer shows ratio: 12:1. Distance 12 m, measured area Ø 1 m.

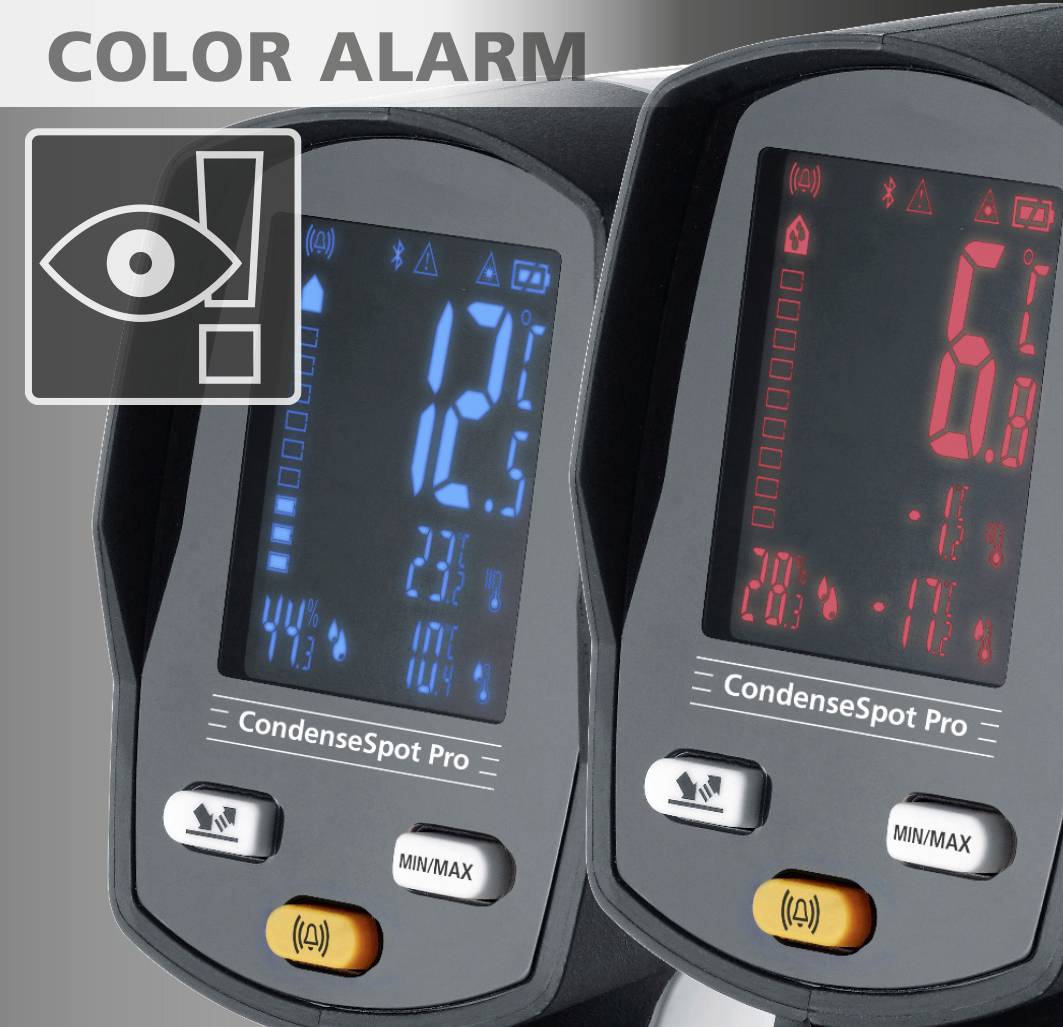

Two digital thermometers display different temperature readings. On the left 12.5 °C, on the right 6.8 °C. Inscription at the top: 'COLOUR ALARM'.

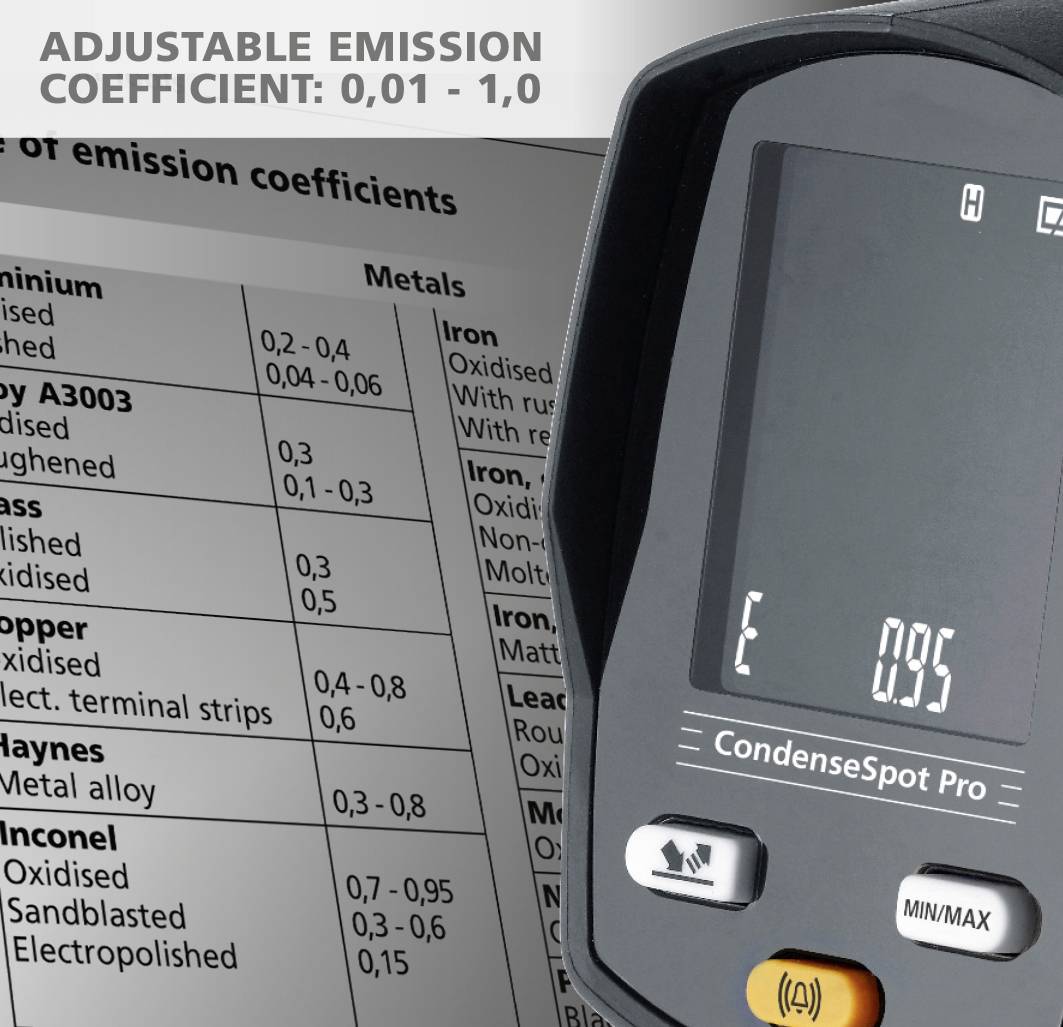

'CondenseSpot Pro' measuring device shows emission coefficient of 0.95. Table on the left contains metal types and corresponding emission values.

1/8

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

6 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 204.99 / piece)

€ 204.99

incl. VAT

Only 6 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Climate/humidity/temperature meter to prevent thermal bridges and mold formation

Suitable for

Technical specifications

Product type: Hygrometer

Temperature accuarcy (details): Infrared temperature accuracy
-40°C … 0°C (± (1°C + 0.1°C/1°C))
0°C … 30°C (± 1°C OR ± 1%,
Depending on larger value)
>30°C (± 2°C or ± 2%,
Depending on larger value)

Ambient temperature accuracy
0°C … 50°C (± 1°C)
<0°C AND >50°C (± 2.5°C)

Class 2 laser

: Manufacturer's standards (no certificate)

Power supply (details): 2X 1.5V LR6 (AA)

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 2445731 Laserliner CondenseSpot Pro Hygrometer

User & Safety Instructions

User & Safety Instructions 2445731 Laserliner CondenseSpot Pro Hygrometer

Conformity certificate

Conformity certificate 2445731 Laserliner CondenseSpot Pro Hygrometer

Warranty Terms

Warranty Terms 2445731 Laserliner CondenseSpot Pro Hygrometer

Description

This climate, humidity and temperature measuring device is suitable for preventing mold formation by locating moisture. The product determines relevant climate data such as air humidity, ambient temperature, surface temperature and dew point temperature. The measuring range can be precisely targeted using a laser-level display. The user is clearly warned when locating heat bridges or wall humidity. The auto-hold function fixes the measured value at the end of a continuous measurement in the display. Measurement data can be transferred to a smartphone or tablet with MeasureNote app via the Digital Connection interface.

This text is machine translated.

Features

Localization of heat bridges and condensation moisture to prevent mold formation
Determination of the relevant air humidity, ambient temperature, dew point temperature
Simple transfer of measurement data via digital connection interface to the mobile phone
Bar graph condensation indicator
Color alarm function
Emission level adjustable: 0.01 to 1.0

Scope of delivery

CondenseSpot Pro
Batteries

Description

Features

Localization of heat bridges and condensation moisture to prevent mold formation
Determination of the relevant air humidity, ambient temperature, dew point temperature
Simple transfer of measurement data via digital connection interface to the mobile phone
Bar graph condensation indicator
Color alarm function
Emission level adjustable: 0.01 to 1.0
