Ledlenser H7R Core LED (monochrome) Headlamp rechargeable 1000 lm 65 h 502122
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 67.22 / piece)
€ 67.22
plus VAT.

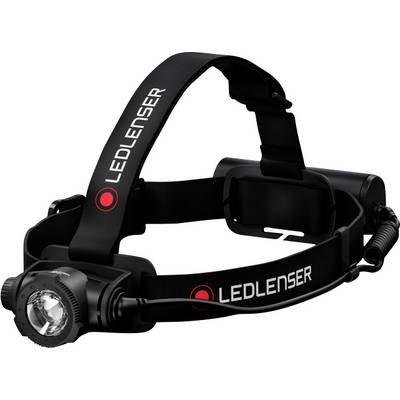

Ledlenser H7R core head lamp
Highlights & Details
- Compact, powerful and versatile headlamp with Advanced Focus System
- Robust Magnetic Charge system enables the lamp to be charged without the need for a small piece of connector
- Intuitive use and continuous dimming thanks to the wheel switch on the lamp head
- The lamp head can be swiveled continuously by 130 degrees up and down
- Extremely high protection against dust and water (protection class IP67) by Flex sealing technology
Technical specifications
- Boost luminous flux 1000 lm, beam range 250 m.
- charging time 3.5 h approx.
- Temperature range -20 to +40 °C
- Drop tested from 1.5 m height
- Light color 6000 to 7500 Kelvin
- Protection class IP67
- Luminous flux (range)
1000 lm -
- Product type
Headlamp
- Bulb type
LED (monochrome)
- Light duration (max.)
65 h
- Power supply (LOV)
rechargeable
- Batteries
3.7 V, 4800 mAh Li-ion battery (included)
- Factory colour
Black
- Weight
259 g
- Dim
(Ø x H) 41 mm x 124 mm
- No. of bulbs
1
- Light duration (high)
4 h
- Light duration (low)
65 h
- Illumination range (high)
200 m
- Illumination range (low)
25 m
- Luminous flux (high)
1000 lm
- Luminous flux (low)
15 lm
- Width
150 mm
- Height
124 mm
- (Ø)
41 mm
- Waterproof
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2281065 Ledlenser H7R Core LED (monochrome) Headlamp rechargeable 1000 lm 65 h 502122
Information
Test Summary Report 2281065 Ledlenser H7R Core LED (monochrome) Headlamp rechargeable 1000 lm 65 h 502122
Security datasheet
Security datasheet 2281065 Ledlenser H7R Core LED (monochrome) Headlamp rechargeable 1000 lm 65 h 502122
Description
The H7R Core is the versatile specialist among the head lamps: Powerful, durable and infinitely dimmable. The Advanced Focus System enables a seamless transition between near-light and high-beam. The 130° swiveling lamp head, the magnetic charging system with removable battery and the extreme dust and water protection make the H7R Core a reliable light companion for many applications.
This text is machine translated.
This text is machine translated.
Features
- 2 luminous intensity Power, Low Power + Boost function
- Lamp head can be rotated by 130°
- Dimmable
- Advanced focus system
- Adjustable headband and washable
- Headband with skid-proof inner side
- Impact-proof
- Flex sealing technology waterproof and dustproof IP 67
- Xtreme-LED installed
- Magnetic charge system
- Temperature control system
- Flicker-free
- Transport lock
- Low battery warning
- Constant light
Scope of delivery
- H7R core
- Headband
- Accumulator
- Magnetic charging cable
- User manual.
Hints
Measured values according to ANSI/PLATO FL 1 in the respectively mentioned setting. If no setting is explicitly specified, the values for luminous flux (lumen/lm) and illumination range (meter/m) refer to the brightest setting and the values for running time (in hours) to the lowest setting. A boost function (if available) can be used several times, but only briefly available at a time. In case the lamp is fitted with colored LEDs, the measured values are indicated with white light or the white LED. If the lamp has different power modes, then the "energy saving mode" is the basis for the measurement.
