Buy MEAN WELL MPM-15-24 AC/DC PSU (print) 24 V DC 0.63 A 15.1 W

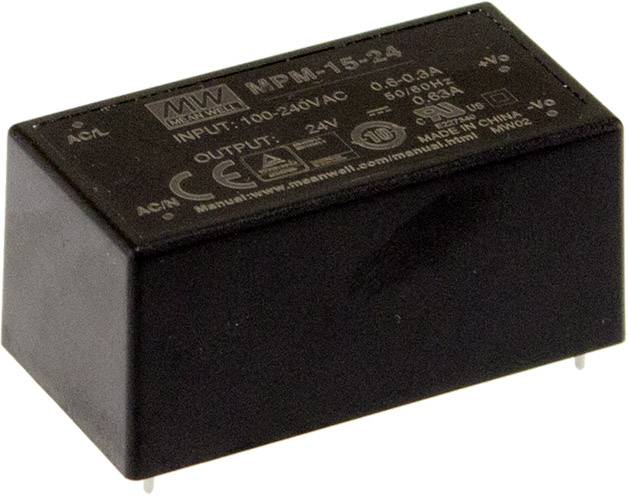

Black power supply module with model number MPM-15-24, suitable for input voltages of 100-240V AC, output 24V.

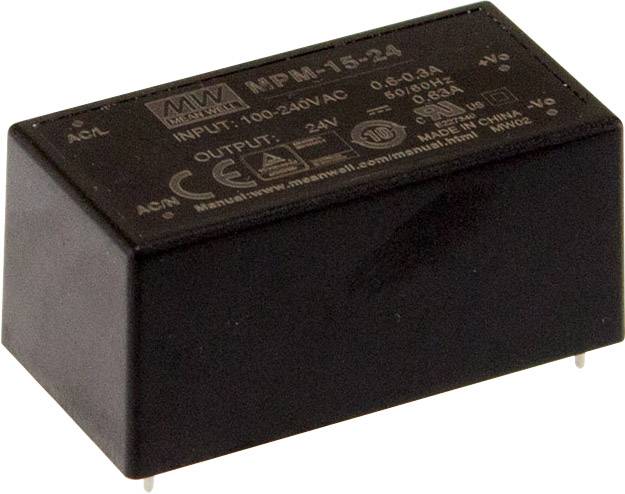

A black electronic component with the inscription 'MPM-15-24'. It shows input (100-240VAC) and output specifications (24V).

1/2

Datasheet (PDF)

Fast track dispatch on Wed, 23 Sep

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 10.08 / piece)

€ 10.08

plus VAT.

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

MEANWELL power supply series MPM-15 Medical Encapsulated Single Output Power: 15 W

Output 24 V DC / 0.63 A
Power 15.1 W
Pins

Technical specifications

Product type: AC/DC PSU (print)

Input voltage (max.): 264 V AC

Max. output current: 0.63 A

Output current (max.) - rounded: 630 mA

Min. input voltage: 80 V AC

Dim: (L x W x H) 52.4 x 27.2 x 24 mm

Output voltage (max.): 24 V DC

Connection: Pins

: 15.1 W

Input frequency: 47-440 Hz

Efficiency to: 86,5 %

Tolerance (output voltage): ±1,5 %

Protection class: II

No. of outputs: 1 x

Output voltage 1: 24 V DC

Output current 1: 0.63 A

Operating temperature (max.): +85 °C

Operating temperature (min.): -40 °C

Weight: 56 g

Type: Pulsed

Width: 27.2 mm

Height: 24 mm

Length: 52.4 mm

Residual ripple: 180 mVpp

Type: MPM-15-24

Documents & Downloads

Datasheet

Datasheet 2113628 MEAN WELL MPM-15-24 AC/DC PSU (print) 24 V DC 0.63 A 15.1 W

User & Safety Instructions

User & Safety Instructions 2113628 MEAN WELL MPM-15-24 AC/DC PSU (print) 24 V DC 0.63 A 15.1 W

Warranty Terms

Warranty Terms 2113628 MEAN WELL MPM-15-24 AC/DC PSU (print) 24 V DC 0.63 A 15.1 W

Description

Mean corrugated represents a new power supply series with high power density: in closed design for PCB mounting the series MPM. Compared with the size of the last generation-PM AND NFM-is the size of the new series only one-third, but a wider operating temperature range, a higher efficiency and lower idle power. The design of this series meets the guidelines of the IEC/EN 60601-1 of 3. Version and ANSI/AAMI IT 60601-1, meets the requirements of 2x mop and has a low leakage current (<80 μA). It is approved for medical equipment. The level the BF with direct patient contact. Suitable applications include medical test devices, portable medical devices and medical devices, which require an extremely low standby power consumption, etc.

This text is machine translated.
