Buy Megger MIT485/2 Insulation tester 50 V, 100 V, 250 V, 500 V 100 GΩ

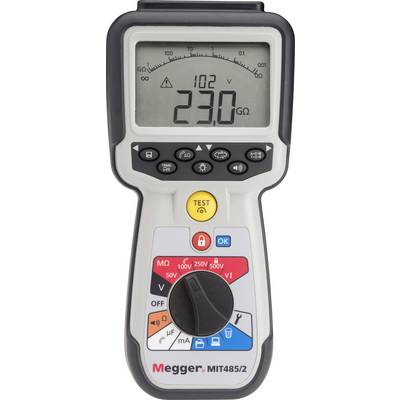

Megger MIT485/2 Insulation tester 50 V, 100 V, 250 V, 500 V 100 GΩ-0

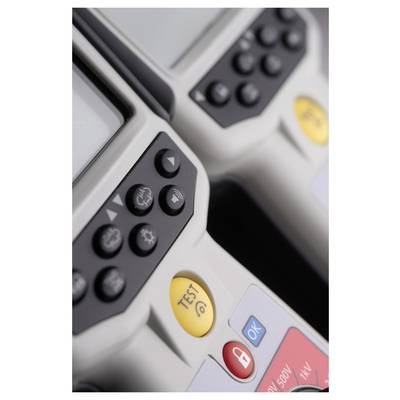

Megger MIT485/2 Insulation tester 50 V, 100 V, 250 V, 500 V 100 GΩ-1

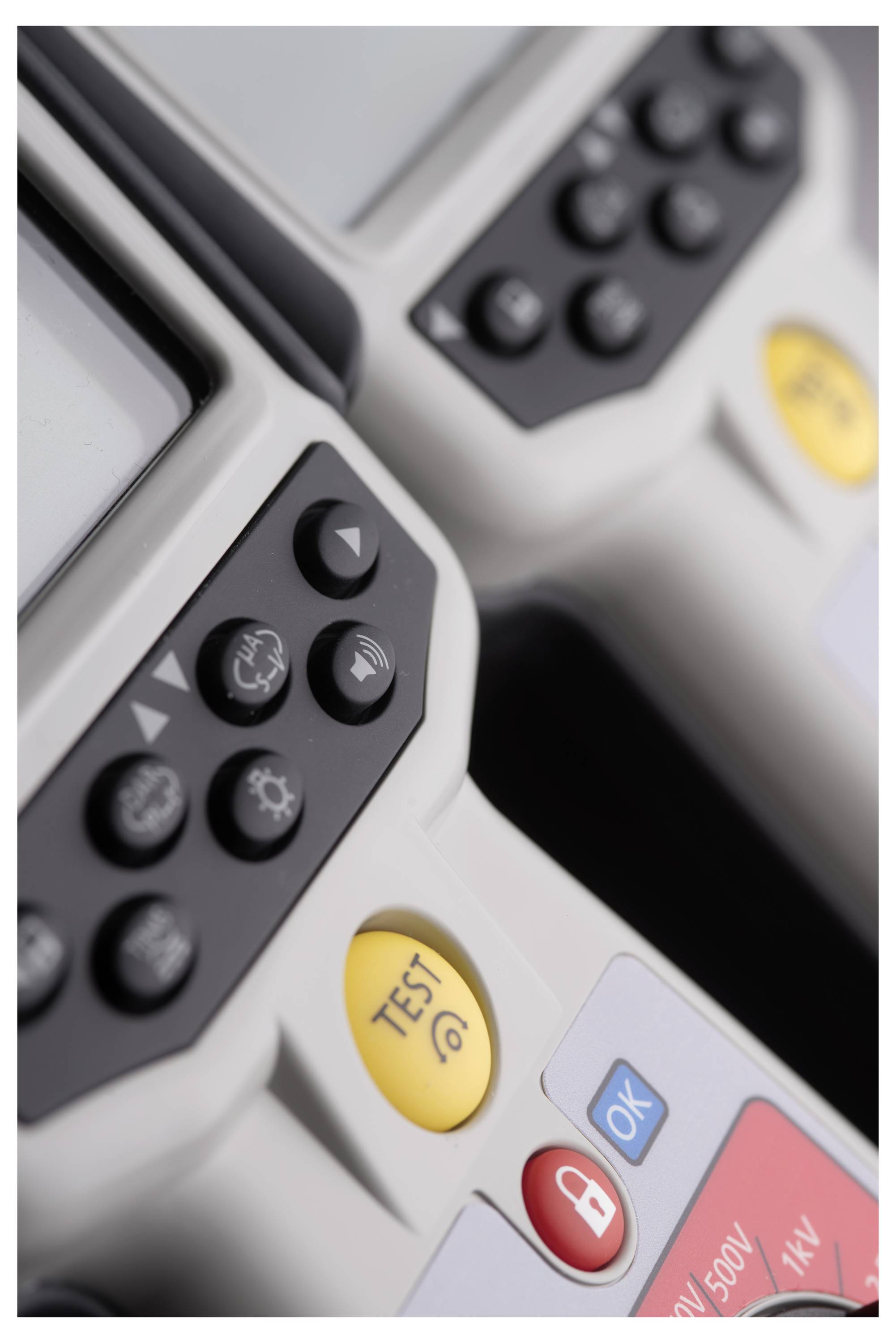

Megger MIT485/2 Insulation tester 50 V, 100 V, 250 V, 500 V 100 GΩ-2

1/3

Datasheet (PDF)

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1,293.28 / piece)

€

Only 2 Piece(s) available

Report legal concerns

Highlights & Details

MIT485/2 insulation tester

Insulation testing up to 500 V and 100 GΩ range in a hand-held measuring device
3-conductor connection for A, B and E (tip, ring and ground) connection (new)
Protected 500 V access to protect against accidental damage (New)
Rechargeable options for power and auto charging (New)
Faster continuity test with a range from 0.01 Ω to 1 MΩ (New)
Differential measurement capability (new)
Stabilized Insulation Test Voltage (New)
600 V TRMS AC- and DC voltage measurement
Save the test results and download Bluetooth®
CAT IV 600V
Weather resistance – Each tester is IP54 sealed and has a weatherproof housing to reduce the risk of water ingress, including battery and fuse covers.
Robust housing – The rubber over the molded part provides an ideal combination of shock-absorbing outer protection and excellent grip in a heavily modified ABS housing. This results in a housing that is almost indestructible.
Batteries – Requires six standard AA alkaline batteries or rechargeable nickel metal hydride batteries (NiMH) that allow at least 3,000 insulation tests at 500 V.

Technical specifications

ISC 200 mA R ≤ 4Ω
Differential measurement [REL]
Line zero (up to 10 Ω)
TRMS
VOLTAGE AC/DC 600 V.
Capacity 0.1 nF - 10 μF
Distance to μF (open circle)
REN calculation
Current measurement mA AC / DC
A/B/E OR T/R/G SWITCHING
Integrated memory
Switched probe included
μA Key (leakage)
Lock button MΩ

Product type: Insulation tester

Test voltage: 50 V
100 V
250 V
500 V

Reading type: Insulation resistance

: Manufacturer's standards (no certificate)

Reading range - resistance: 10 - 100 GΩ

Interfaces: Bluetooth®

: IP54

Power supply (details): 6 x 1.5 V IEC LR6 AA battery (optional NiMH batteries)

Dim: (L x W x H) 22.8 x 6.3 x 10.8 cm

Weight: 600 g

Display type: Digital
Analogue
Acoustic

Max. frequency: 400 Hz

Min. frequency: 15 Hz

Frequency range: 15 Hz - 400 Hz

Insulation resistance (max.): 100 GΩ

Voltage reading range (max.): 500 V

Voltage reading range (min.): 10 V

Reading category: CAT IV 600 V

Width: 6.3 cm

Height: 10.8 cm

Length: 22.8 cm

Documents & Downloads

Datasheet

Datasheet 3431113 Megger MIT485/2 Insulation tester 50 V, 100 V, 250 V, 500 V 100 GΩ

User & Safety Instructions

User & Safety Instructions 3431113 Megger MIT485/2 Insulation tester 50 V, 100 V, 250 V, 500 V 100 GΩ

Description

The MIT480 mk2 series of insulation and continuity testers replace the original MIT480 series and have been developed specifically for the telecommunications and cable test markets.
The new devices have a revised housing, a stand and a 6-cell
Battery compartment with separate access to the fuses.
All devices are molded for increased protection and achieve the IP54 protection class.

This text is machine translated.

Features

Test voltage – 50 V, 100 V, 250 V and 500 V
Variable test voltage – adjustable test voltage from 10 V to 500 V.
2% accuracy of test voltage – The output test voltage is within the
Tolerance or within –0% to +2 % + 2 V.
PASS/FAIL indicator (PASSED/FAILED) – Depending on the voltage threshold, PASS (PASSED) or FAIL (NOT PASSED) (✓/✖) is displayed.
Stabilized Test Voltage - The voltage is feedback controlled, UM
Ensure that it remains within the specification throughout the test range.
Test voltage indicator – The actual test voltage is printed on a
The smaller digital display and the measurements on the larger digital display.
Test Range - Insulation Test from 100 GΩ* to 500 V.
Display of measuring range - The voltage range is displayed when selected.
Display of the measured voltage – The measured voltage is displayed during the test.
Analog arc - The display also includes an analog arc that displays the moving coil response.
Timed Check – Automatic check based on a time limit.
Silicone cable - High quality, flexible and user-friendly silicon test leads prevent measuring errors in the GΩ ranges over 5 GΩ.
Test lock - Test is prevented if voltages above 25, 30, 50, 75 or 100 V (set by user) are detected during the insulation test. Default value is 50 V.
Insulation buzzer - The buzzer can be set to activate when the insulation resistance exceeds the user-defined limit. It can be configured in the setup menu.
Check Lock - The insulation test is permanently locked

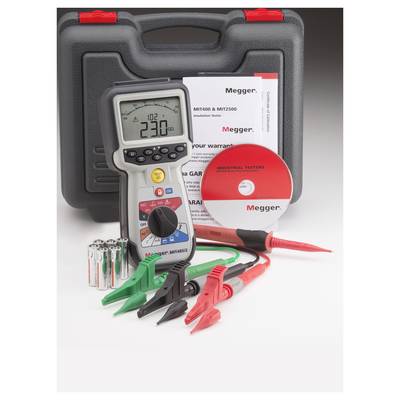

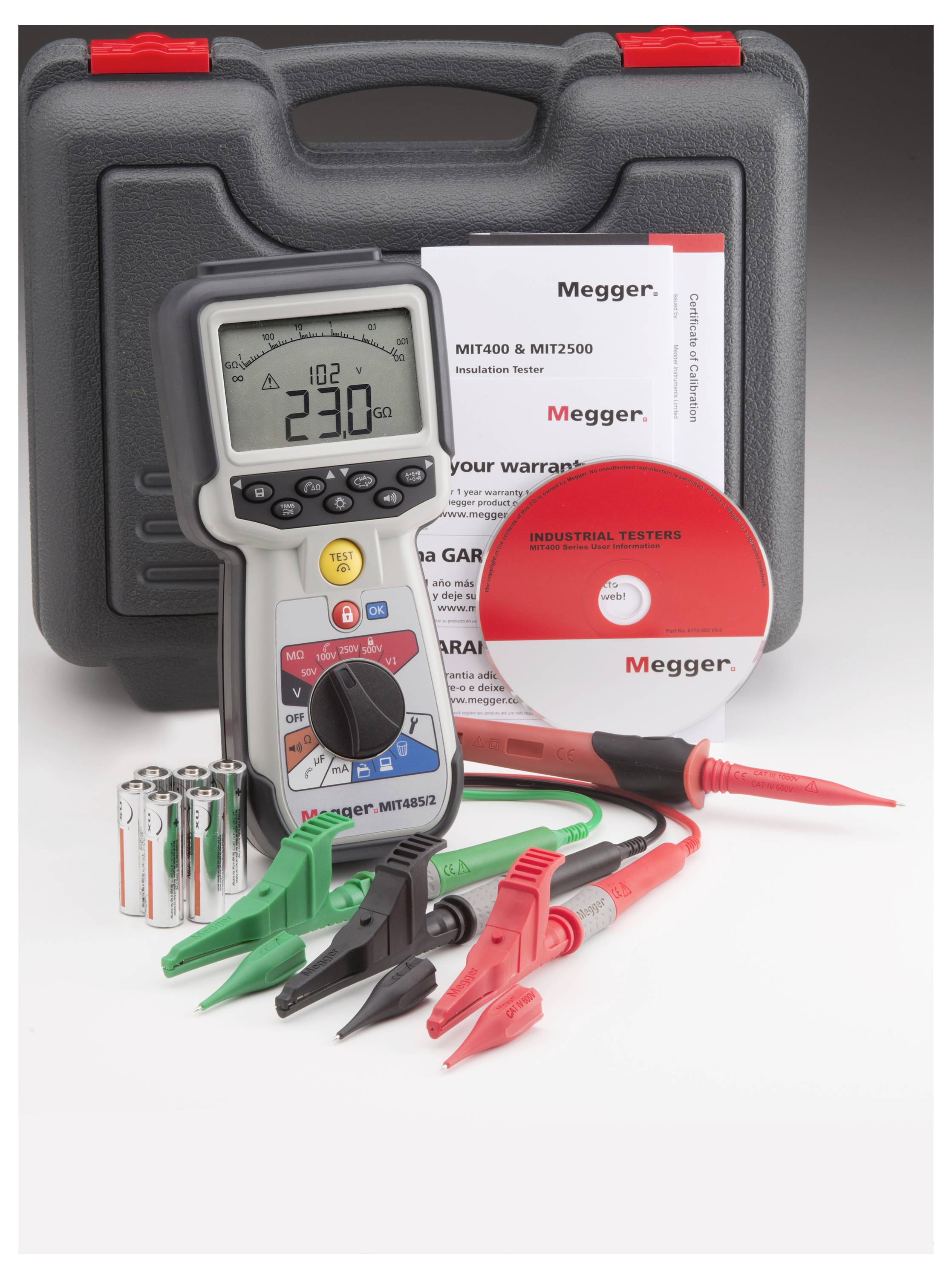

Scope of delivery

Red/black silicone test leads with pins and clips
SP5 Switched Probe (not MIT400/2)
CD with information for the owner
Batteries 6 x AA alkaline
Hard case

Hints

Power supply: 6 x NiMH alkaline battery transmitters 1.5 V cell type IEC LR6 (AA, MN1500, HP7, AM3 R6HP), rechargeable cells can be used.

Can be ordered separately: Power supply charger (MIT485/2 only) art. No. 1007-464

DC battery charger Type. No. 1004-183
