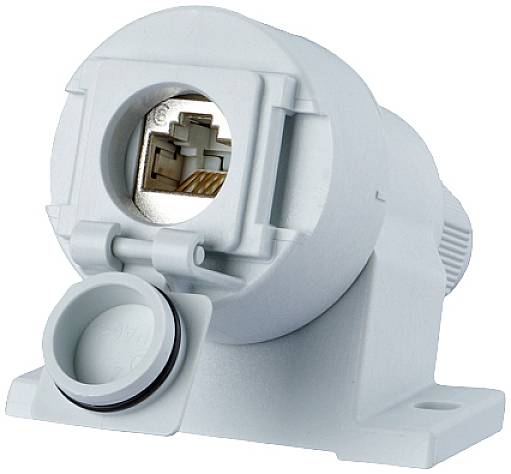

Metz Connect Network outlet Surface-mount CAT 6A 1 port Light grey
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 30.99 / piece)
€ 30.99
incl. VAT
14-day return policy included
Highlights & Details
E-DAT Industry IP67 V6 AP, 1 Port Cat. 6A - E-DAT module
- RJ45 connection unit E-DAT module in flange housing according to standard ISO/IEC 24702 and IEC 61076-3-106 Var. 6Cat.6A Component testing according to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09, TIA/EIA-568-C.2 (2009-08) and IEC 60603-7-51 Ed.1 (12/2008), GHMT certifiedCompliance with class EA according to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09
- This text is machine translated.
Technical specifications
- Product type
Network outlet
- Mounting type
Surface-mount
CAT 6A
- No. of LAN ports
1 x
- Features
IP67
Compact
- Factory colour
Light grey
- Switch type function
Network junction box
- Switch type component
Insert
- Similar RAL
7035
- Port
1 port
- Weight
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2588169 Metz Connect Network outlet Surface-mount CAT 6A 1 port Light grey
User & Safety Instructions
User & Safety Instructions 2588169 Metz Connect Network outlet Surface-mount CAT 6A 1 port Light grey
Description
Features
- Suitable for 10 GBit Ethernet (IEEE 802.3an), remote power (PoE, PoE plus, UPoE and 4PPoE) and HDBaseTEasy to mount connection of the 2 to 4-pair data cable AWG 26/1 - 22/1 and stranded conductor with 7-wire CU-strand AWG 26/7 - 22/7 to BTR 8fach IDC-terminalsIdentification of wire assignment T568A or T568BMeets IP67 degree of protection when matedConnector face according to IEC 61076-3-106 (variant 6)Large-area 360° shield contactSurface mounting can be arranged in series (AP)Connection of commercially available RJ45 plugs possible (no IP protection)Simple, time-saving installationColor: Light gray RAL 7035
