Name: Metz Connect Network outlet Flush mount CAT 6A 1 port Metal
Brand: Metz Connect
SKU: 990487
Availability: InStock

Highlights & Details

BTR CAT 6 UPO network socket 1 port

Compatible design central piece leading to manufacturer
Cable entry on 8 sides

Technical specifications

Product type: Network outlet

Mounting type: Flush mount

Type: Insert

: CAT 6A

No. of LAN ports: 1 x

Features: Modular

Factory colour: Metal

Cable feed: universal

Switch type function: Network junction box

Switch type component: Insert

Port: 1 port

Fitting type (details): Flush-mounted

Weight: 0

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 990487 Metz Connect Network outlet Flush mount CAT 6A 1 port Metal

User & Safety Instructions

User & Safety Instructions 990487 Metz Connect Network outlet Flush mount CAT 6A 1 port Metal

Description

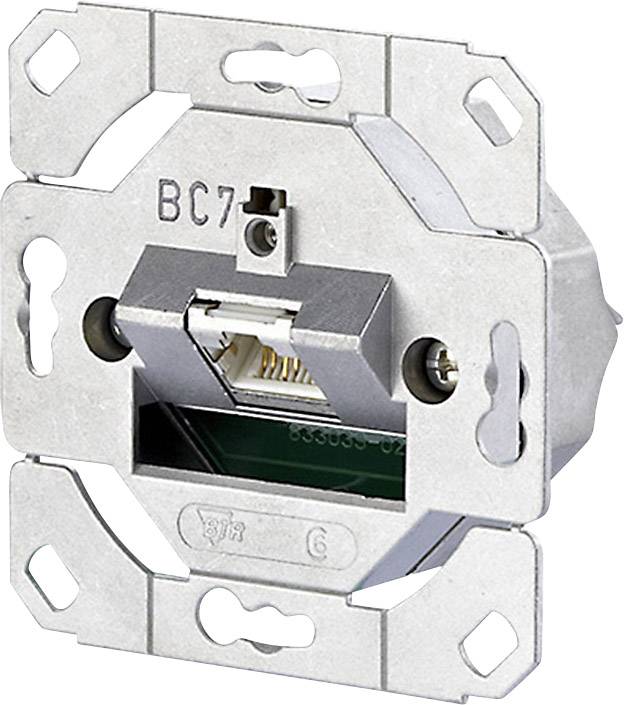

Design-compatible CAT 6A channel connection socket for data transfer rates of up to 1000 MBit/s. Centrepiece of most of the switch program manufacturers can be mounted. Thus you get the design of your exterior and interior professional networking program technology from BTR. The cable feed is possible in 8 positions, which enables an optimum mounting with cable reserve with minimum space requirement.

Hints

The thickness of the center pieces from different manufacturers can vary. Therefore, short screws M2.5 x 6 mm and M2.5 x 10.5 mm for fixing the different center pieces here by default in delivery.
