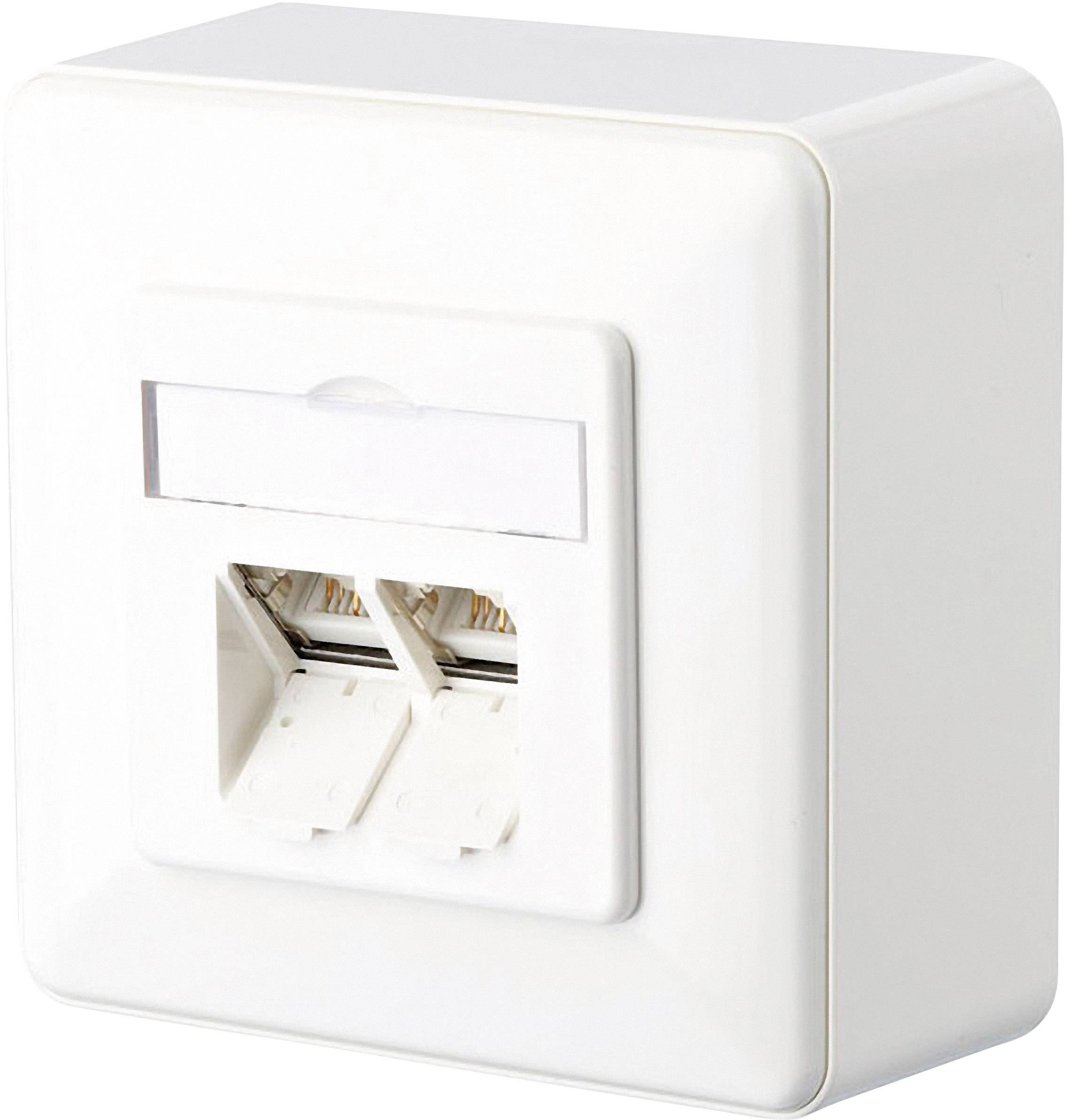

Metz Connect Network outlet Surface-mount CAT 6 2 ports Pure white
EAN:
Part number:
Item no:
Number
Total (€ 15.96 / piece)
€ 15.96
plus VAT.
BTR NETCOM 1307380002-I RJ-45
Highlights & Details
- Surface-mounted connection unit with two 8-pin RJ45 sockets
- GHMT Cat 6 12C-de-embedded certified
- Compliance with the class EA according to ISO/IEC 11801 Ed.2.2: 2011-06, DIN EN 50173-1:2011-09
- This text is machine translated.
Technical specifications
- Product type
Network outlet
- Mounting type
Surface-mount
CAT 6
- No. of LAN ports
2 x
- Features
Modular
- Factory colour
Pure white
- Cable feed
universal
- Switch type function
Network junction box
- Switch type component
Insert
- Similar RAL
9010
- Port
2 ports
- Weight
0
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 995285 Metz Connect Network outlet Surface-mount CAT 6 2 ports Pure white
User & Safety Instructions 995285 Metz Connect Network outlet Surface-mount CAT 6 2 ports Pure white
Description
Compact junction box for the construction of a passive network infrastructure with highest quality requirements. The junction box is suitable for connecting telephones up to 10 Gbit networks and the power supply with PoE with up to 90W. The very robust die-cast zinc junction box can be easily and quickly connected by the installer with a LSA insertion tool without errors. In addition to the permanent quality control accompanying the production, independant test laboratories with different certificates confirm the very good quality. The junction boxes are supplied in commercially-friendly, individual carton boxes with 10 pieces each.Variants, assembly type: AP, UP, UPK, UP0, Variants, number of ports: 1, 2
This text is machine translated.
This text is machine translated.
Features
- Tested: Link up to 500 MHz
- For 10 GBit Ethernet (IEEE 802.3an)
- Suitable for Power over Ethernet (PoE, PoE plus and UPoE)
- Alien Next optimized, shielded single sockets
- Screwing the cap for strain-relief and screen removal is done from front
- Practical cable supply of 8 Pages
- With viewing window for accompanying inscription insert
- Inscription arc 209 x 294 mm see accessories
- Integrated dust-protection flaps (also available in color)
- Color of the cover panels, pearl white RAL 1013 or pure white RAL 9010, matt surface structure
