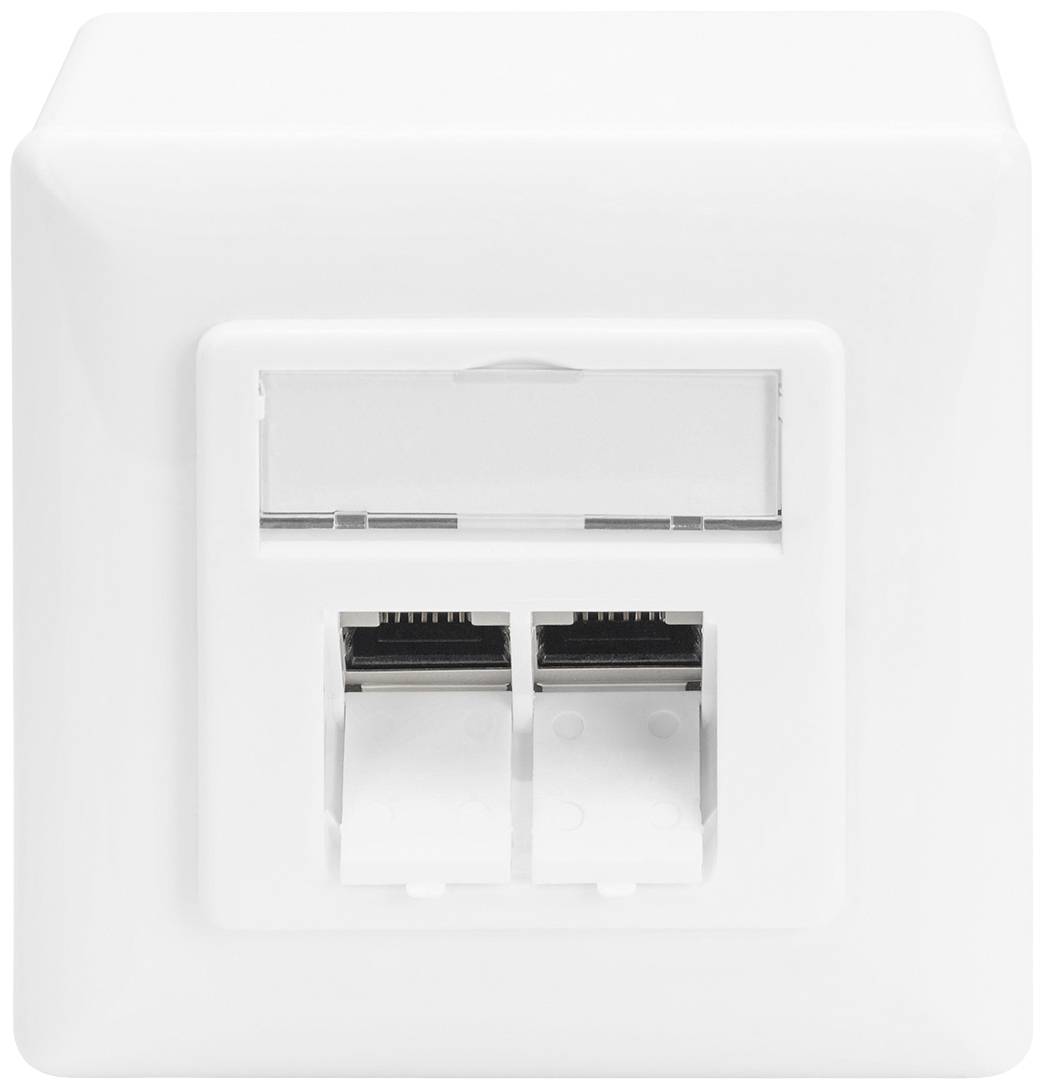

Digitus Network outlet Surface-mount CAT 6 2 ports Pure white

The shielded CAT 6 network outlets from DIGITUS® are certificated to CAT 6 EIA/TIA 568 and ISO/IEC 11801, EN 50173. The cable installation takesplace via LSA strips, color coded acc. EIA/TIA 568 B with horizontal cable entry. All network outlets from DIGITUS® are available flush mount or surface mount.

· Layout keystone entry: Category 6
· Area of application: Up to 250 MHz, 1GBase-T
· Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C
· General properties:
· Suitable for installation in trunking, surface and flush mount
· RJ45 female, 8P8C

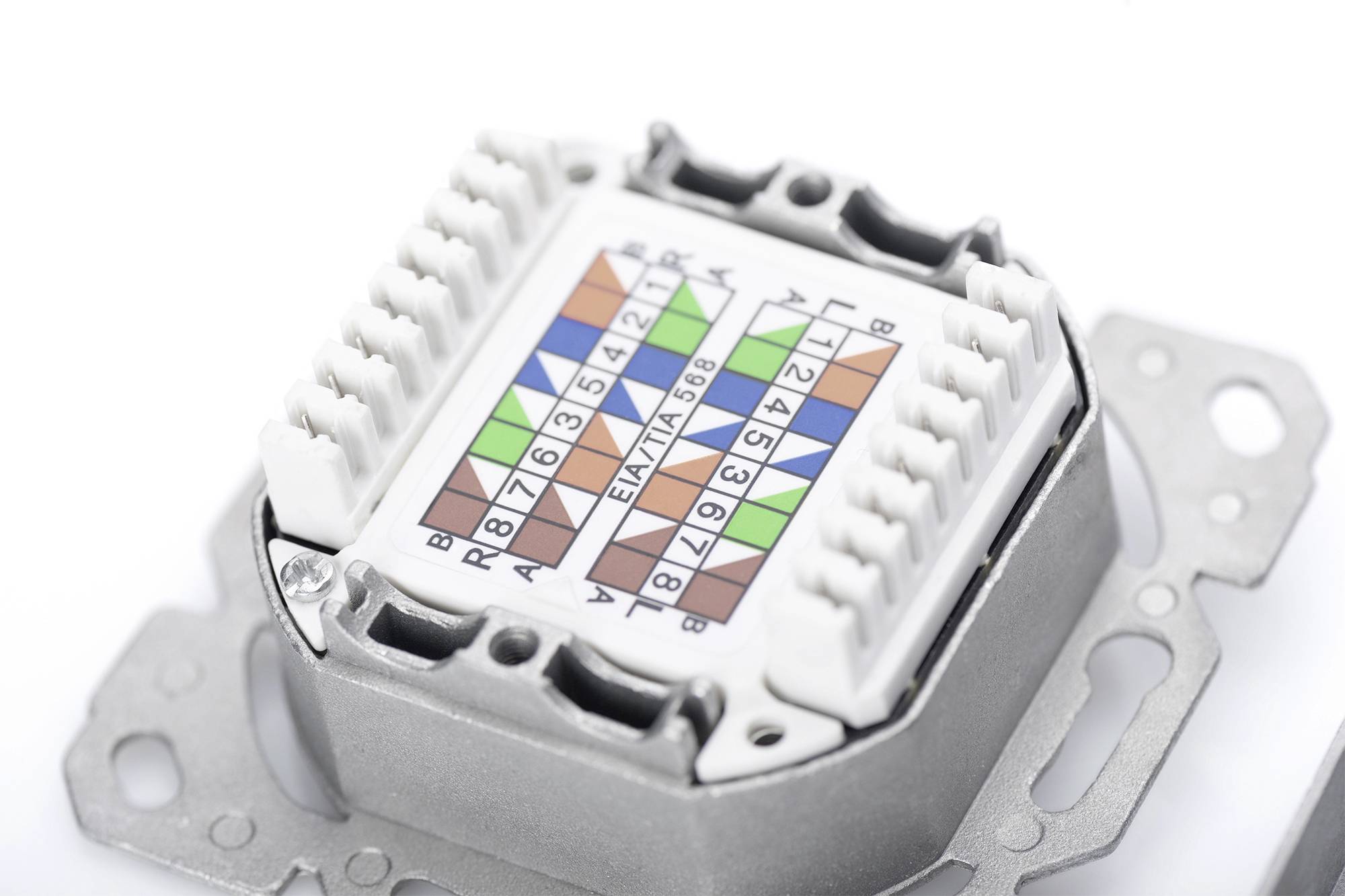

· Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B
· Integrated strain relief for installation cables
· Complete shielding of RJ45 sockets and LSA strips due to zinc die-cast housing
· Strain relief 40°-angled female for patch cord
· Central plate: 50 x 50 mm
· Frame: 80 x 80 mm
· Central plate with integrated dust covers
· Design compatible to common switch ranges
· Technical properties:
· Housing material: Die-cast metal
· RJ45 female material: ABS UL 94V-0
· RJ45 female contact: Tinned phosphor bronze, 0.5 ? gold-plated contact
· RJ45 shielding: Tinned bronze
· LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze
· Conductor plate: FR4, UL 94V-0
· Physical properties:
· Insertion force: 30N max. (IEC 60603-7-5)
· Retention strength: 7.7 kg between jack and plug
· Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
· Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
· Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
· IDC wire size: 22 – 26 AWG solid and stranded conductor
· Insulation resistance: > 500 MOhm
· Contact resistance: < 20 MilliOhm
· Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
