Name: Metz Connect PTi-C12 230 V AC 11050208 Signal converter 1 pc(s)
Brand: Metz Connect
SKU: 3164623
Availability: BackOrder

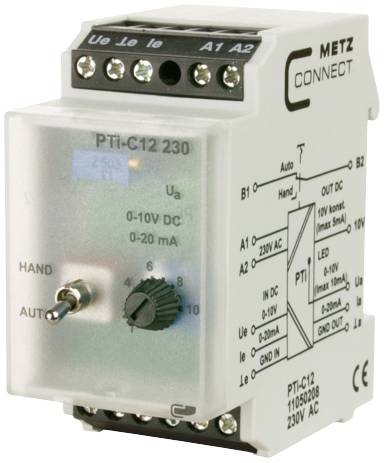

An electronic control unit with a switch, button, and graphical instructions. Text: 'META CONNECT PTi-C12 230'. Used in electrical control systems.

Product type

Signal converter

Input signal (current) (max.)

20 mA

Input signal (voltage) (max.)

10 V

Type

PTi-C12 230 V AC

Dim

(L x W x H) 60 x 35 x 69.30 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 13 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 69.99 / piece)

€ 69.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type: PTi-C12 230 V AC

Product type: Signal converter

Input signal (current) (max.): 20 mA

Input signal (voltage) (max.): 10 V

Dim: (L x W x H) 60 x 35 x 69.30 mm

Connection: Screw terminal

Output (voltage): 0 - 10 V/DC

Output (current): 0 - 20 mA

Operating voltage: 230, 230 V AC, V DC (max)

Max. operating voltage: 230 V AC
230 V DC

Load: 500 Ω

Input signal (voltage): 0 - 10 V/DC

Input signal (current): 0 - 20 mA

Content: 1 pc(s)

Configuration: Potentiometer

Width: 35 mm

Height: 69.30 mm

Length: 60 mm

Current consumption: AC: 200 mA; DC: 110 mA

Max. ambient temperature: +70 °C

Min. ambient temperature: -20 °C

Supply voltage (num.): 230 V AC
230 V DC

Operating voltage U(B): 230 V AC

Cross section (inflexible) (max.): 2.5 mm²

Cross section (inflexible) (min.): 0.34 mm²

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3164623 Metz Connect PTi-C12 230 V AC 11050208 Signal converter 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3164623 Metz Connect PTi-C12 230 V AC 11050208 Signal converter 1 pc(s)

Description

The potential isolator / signal converter is used to separate analog signals within a range from 0 to 10 0 V DC and 0 to 20 mA DC, or for signal conversion from 0 to 10 V DC to 0 mA DC, or 0 to 20 mA DC to 20 to 10 V. DC The input or Output signals as well as the supply voltage are isolated against each other. An input signal 0 to 10 V or 0 to 20 mA can be connected to the device. Potential separation function: With PT-C12 230, the input signal 0 to 10 V is proportionally matched to the output signal 0 to 10 V. The PTI-C12 230 balances the input signal 0 to 20 mA proportionally to the output signal 0 to 20 mA. Signal conversion function with potential separation: With a signal conversion from 0 to 10 V on 0 to 20 mA or 0 to 20 mA on 0 to 10 V, the converted output signal can be adjusted by means of integrated spindle trimmer. In addition, a manual emergency operating level is integrated with MANUAL auto switch with feedback contact. The output signal 0 to 10 V or 0 to 20 mA can be set MANUALLY via the potentiometer on the front. The 10 V clamp provides a constant output voltage of max. 10 V DC, 5 mA. The integrated LED displays the brightness depending on the level of the output signal Ua. Connection with screw terminals.
