Monacor SP-202E 8 inch 20.2 cm Subwoofer 50 W 4 Ω
EAN:
Part number:
Item no:
Number
Total (€ 36.97 / piece)
€ 36.97
plus VAT.
Only 3 Piece(s) available

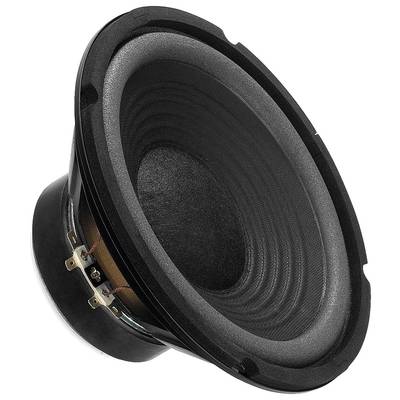

Monacor SP-202E bass loudspeaker
Technical specifications
- Impedance (Z): 4 Ohm
- Resonant frequency (fs): 51 Hz
- Max. 3-6000 Hz frequency range: f
- Maximum capacity 100 WMAX
- Nominal load (P): 50WRMS
- Avg. Sound pressure (1W/m): 93 dB
- Suspension compliance (cms): 0.62 mm/N
- Moved mass (MMS): 15 g
- Mechanical quality (Qms): 4.5
- Electrical quality (Qes): 0.81
- Total quality (Qts): 0.69
- Equivalent volume (Vas): 39 l
- Dc resistance (Re): 3.85 Ohm
- Power factor (BxL): 4.86 Tm
- Schwingspulenind. (Le): 0.6 mH
- Voice coil diameter: 25.5 mm
- Voice coil former: Aluminum
- Linear excursion (Xmax): +/-2.5 mm
- Eff. Cone area (sd): 210 cm2
- Magnet weight: 570 g
- Weight: 1.25 kg
- Product type
Subwoofer
- Speaker size (inch)
8 inch
- Speaker size (cm)
20.2 cm
- RMS capacity
50 W
- Max. load
100 W
- Min. frequency
1000 Hz
- Max. frequency
6000 Hz
- Impedance
4 Ω
- Sound pressure
93 dB
- Recess diameter
18.3 cm
- Recess depth
82 mm
- Weight
1.25 kg
- Features
2-way
- Frequency range
1000 Hz - 6000 Hz
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1332573 Monacor SP-202E 8 inch 20.2 cm Subwoofer 50 W 4 Ω
Description
Features
- Series of all-purpose hi-fi speaker chassis at 4 ohms. Carefully processed and because of the exceptionally attractive price, as well as the all-round-compatible drive properties, for example for replacement purposes. Hi-mid-woofer, 100WMAX, 50WRMS, 4 Ohm
- All-round speaker
- Seam
- Replacement speaker for sealed enclosures Hobby HiFi 04/2013 much talent for zweiweg thanks to flash clean middle playback. Despite the very affordable price, the MONACOR SP-202E full zweiwegtauglichkeit and provides excellent sound quality in view.
- This text is machine translated.
