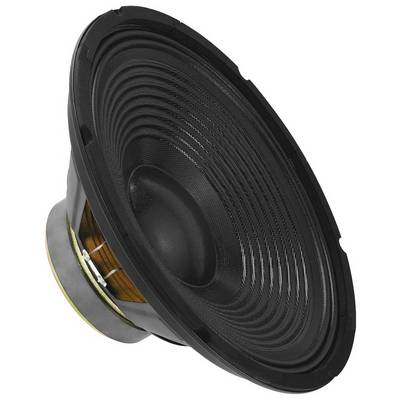

Monacor SP-302PA 12 inch 30.3 cm Subwoofer 100 W 8 Ω
EAN:
Part number:
Item no:
Number
Total (€ 55.45 / piece)
€ 55.45
plus VAT.
Only 10 Piece(s) available
Highlights & Details
Monacor SP-302 PA bass speaker
- Chassis in PA-optics
- This text is machine translated.
Technical specifications
- Impedance (Z): 8 Ohm
- Resonant frequency (fs): 45 Hz
- Max. 3-4000 Hz frequency range: f
- Maximum capacity 200 WMAX
- Nominal load (P): 100WRMS
- Avg. Sound pressure (1W/m): 90 dB
- Suspension compliance (cms): -
- Moved mass (MMS): -
- Mechanical quality (Qms): -
- Electrical quality (Qes): -
- Total quality (Qts): -
- Equivalent volume (Vas): -
- Dc resistance (Re): -
- Power factor (BxL): -
- Schwingspulenind. (Le): -
- Voice coil diameter.: -
- Voice coil former: -
- Linear excursion (Xmax): -
- Eff. Cone area (sd): -
- Magnet weight: 850 g
- Weight: 2.3 kg
- Product type
Subwoofer
- Speaker size (inch)
12 inch
- Speaker size (cm)
30.3 cm
- RMS capacity
100 W
- Max. load
200 W
- Min. frequency
45 Hz
- Max. frequency
4000 Hz
- Impedance
8 Ω
- Sound pressure
90 dB
- Recess diameter
28 cm
- Recess depth
11.6 cm
- Weight
2.3 kg
- Factory colour
Black
- Frequency range
45 Hz - 4000 Hz
- Wireless charging
No
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1332591 Monacor SP-302PA 12 inch 30.3 cm Subwoofer 100 W 8 Ω
Description
Features
- Braced and coated paper membranes and double seam
- Universal Woofer
- For low-frequency applications, also in power speakers.
