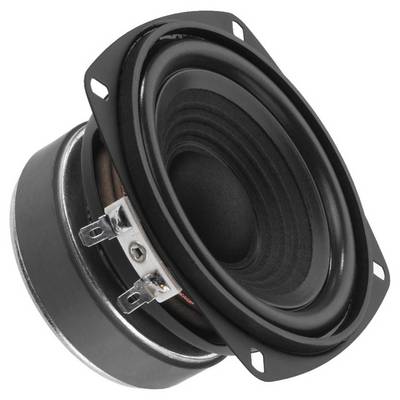

Monacor SP-60/4 4 inch 10.16 cm Subwoofer 30 W 4 Ω
EAN:
Part number:
Item no:
Number
Total (€ 19.32 / piece)
€ 19.32
plus VAT.
Only 10 Piece(s) available
Monacor SP -60/4 mini bass speaker
Technical specifications
- Impedance (Z): 4 Ohm
- Resonant frequency (fs): 65 Hz
- Max. 3-8000 Hz frequency range: f
- Maximum load capacity 60 WMAX
- Nominal load (P): 30WRMS
- Avg. Sound pressure (1W/m): 90 dB
- Suspension compliance (cms): 0.8mm/N
- Moved mass (MMS): 4g
- Mechanical quality (Qms): 2.10
- Electrical quality (Qes): 0.64
- Total quality (Qts): 0.49
- Equivalent volume (Vas): 6l
- Dc resistance (Re): 3.3 ohm
- Power factor (BxL): 2.9 Tm
- Schwingspulenind. (Le): 0.2 mH
- Voice coil diameter: 25.5 mm
- Voice coil former: Aluminum
- Linear excursion (Xmax): +/-2 mm
- Eff. Cone area (sd): 55 cm2
- Magnet weight: 280 g
- Weight: 0.9 kg
- Product type
Subwoofer
- Speaker size (inch)
4 inch
- Speaker size (cm)
10.16 cm
- RMS capacity
30 W
- Max. load
60 W
- Min. frequency
65 Hz
- Max. frequency
8000 Hz
- Impedance
4 Ω
- Sound pressure
90 dB
- Recess depth
99 mm
- Weight
900 g
- Frequency range
65 Hz - 8000 Hz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1332624 Monacor SP-60/4 4 inch 10.16 cm Subwoofer 30 W 4 Ω
Information
Information 1332624 Monacor SP-60/4 4 inch 10.16 cm Subwoofer 30 W 4 Ω
Description
Features
- Hi-mid-woofer
- Pole core bore
- Good Frequency Response linearity
- For small speakers in the hi-fi range
