Name: Multi-level terminal block PT 1,5/S-3L BU 3213726 Phoenix Contact
Brand: Phoenix Contact
SKU: 719912
Availability: InStock

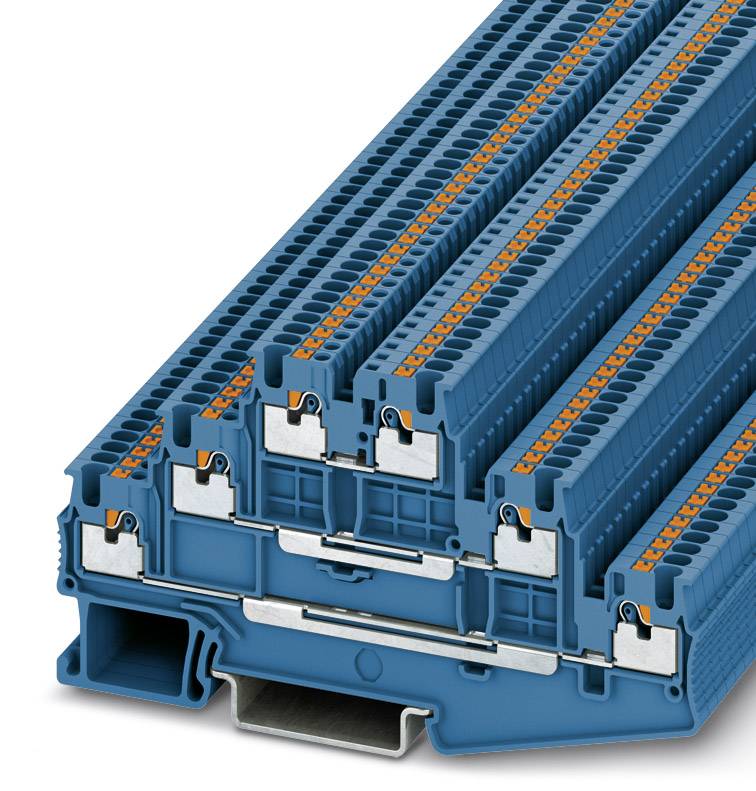

A stacked row of blue terminal blocks. The blocks contain orange contact surfaces and silver metal mountings.

Image similar

Product type

Multiport terminal

Connection

Quick-connect

Cross section (flexible) (max.)

1.5 mm²

Cross section (inflexible) (max.)

1.5 mm²

Nominal current - rounded value

15 A

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 10 Nov

121 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 50 pc(s))

Set(s)

Total (€ 2.80 / piece)

€ 139.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Multi-level terminal block PT 1,5/S-3L BU

PT 1,5/S-3L BU

Technical specifications

Product type: Multiport terminal

Features: + push-in spring bracket

Connection: Quick-connect

Cross section (flexible) (min.): 0.14 mm²

Cross section (flexible) (max.): 1.5 mm²

Cross section (inflexible) (min.): 0.14 mm²

Cross section (inflexible) (max.): 1.5 mm²

AWG (min.): 26

AWG max.: 14

Clamp width: 3.5 mm

No. of rows: 3

Number of pins: 6

Factory colour: Blue

Nominal current: 15 A

Nominal current - rounded value: 15 A

Nominal voltage: 500 V

Min. stripping length: 8 mm

Stripping length (max.): 10 mm

Manufacturer part #: 3213726

Content: 50 pc(s)

Industrial packaging: Yes

Type: PT 1,5/S-3L BU

Dim: (L x W x H) 97.2 x 3.5 x 53.2 mm

Width: 3.5 mm

Height: 53.2 mm

Length: 97.2 mm

Flammability rating: V0

Connector colour: Blue

Insulation material: PA

Insulation: PA

UKCA: yes
