Name: Multimeter NP-FIBER1000 NetPeppers Networks
Brand: NetPeppers
SKU: 3339538
Availability: BackOrder

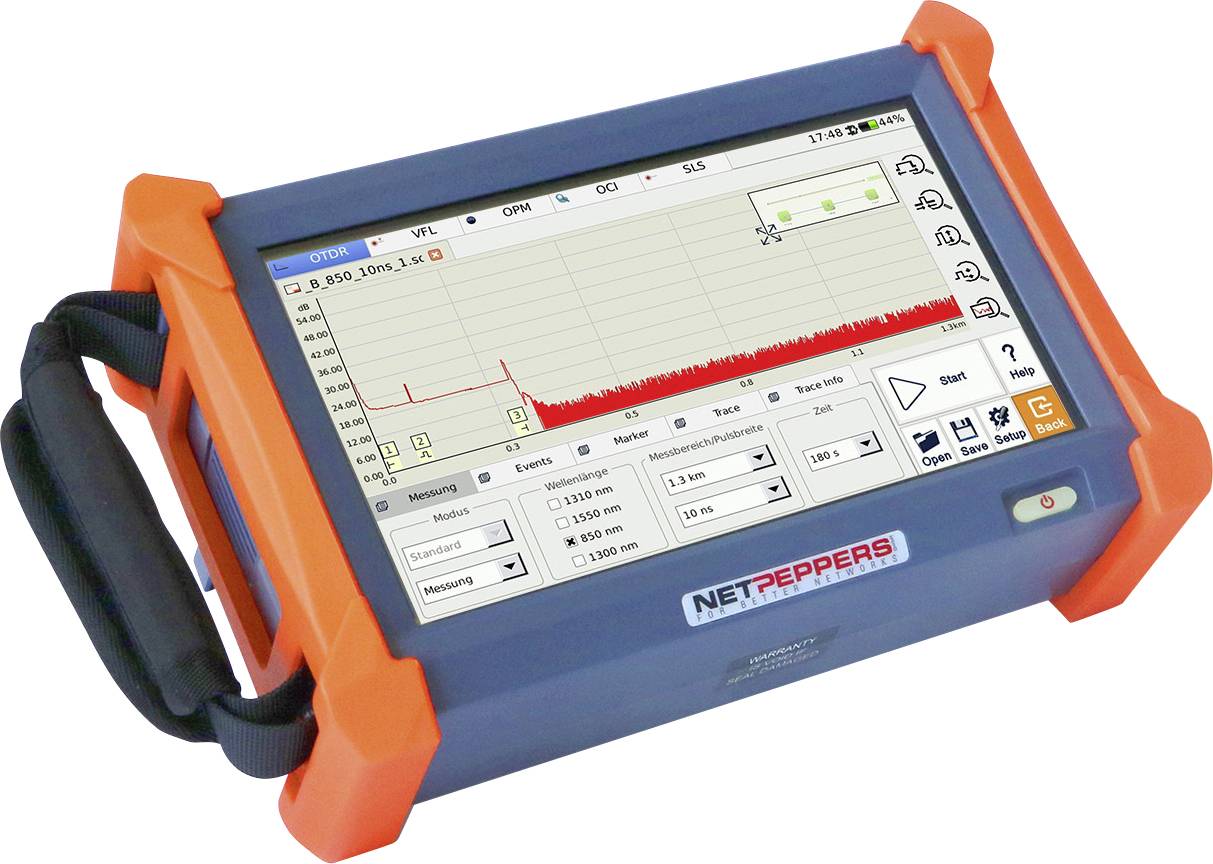

A portable measuring device with a screen displays a graphical diagram. The screen contains various measurement values and options.

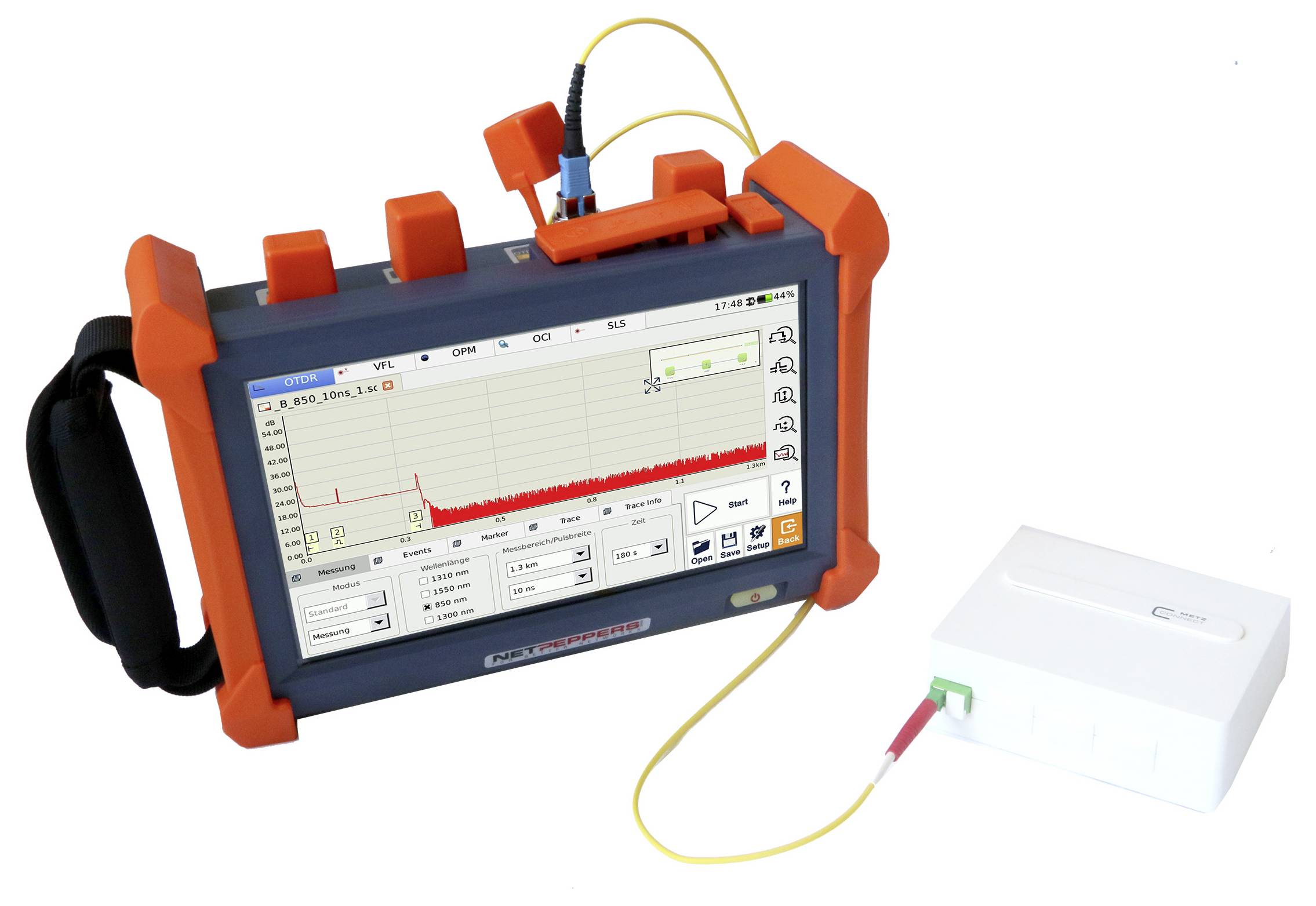

A portable testing device for analysing optical fibres, displaying a signal diagram on a screen with orange protective edges.

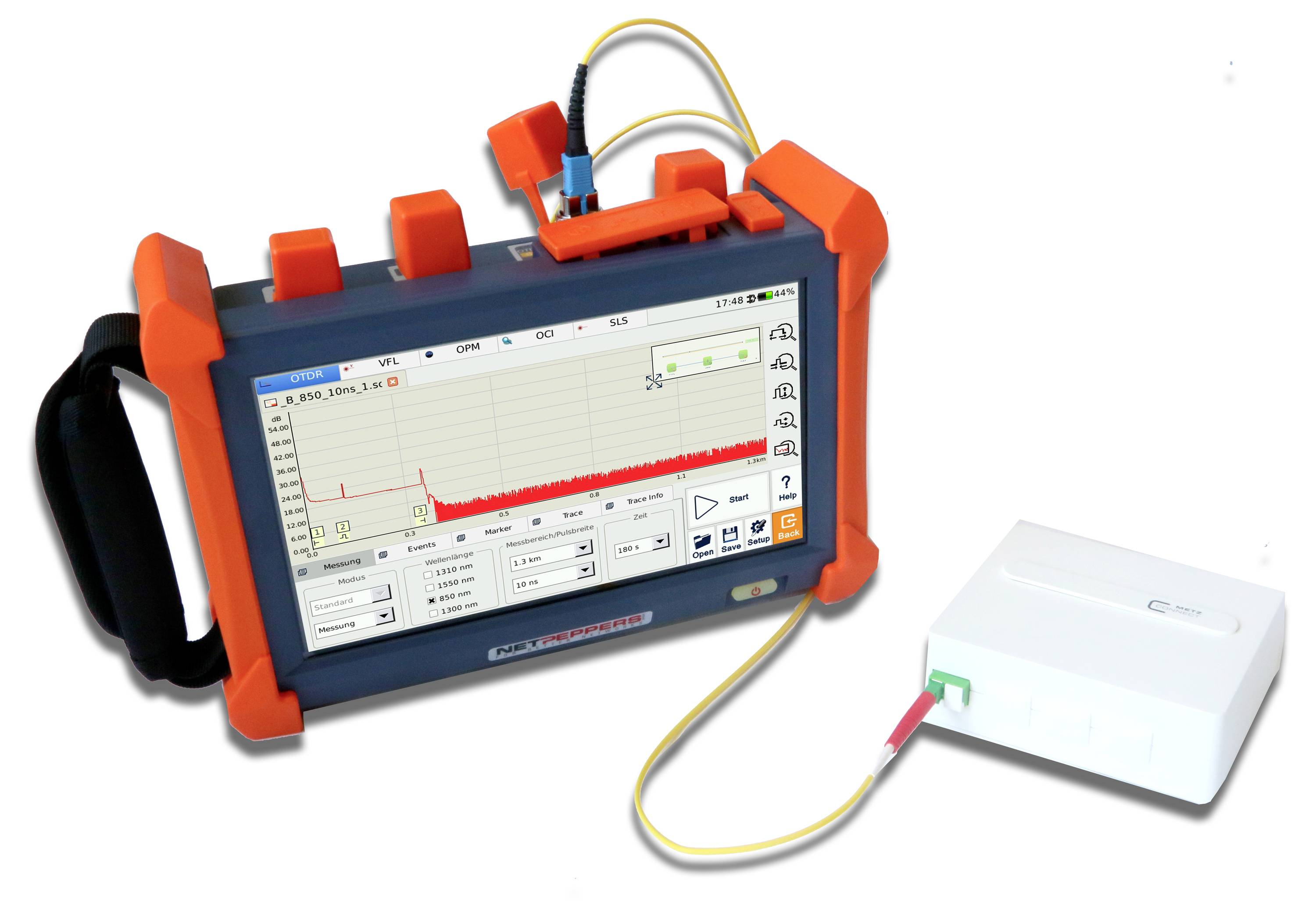

A portable optical test device with a screen displaying a graphical signal diagram. Connected is a white measurement module.

A portable measuring device displays a line graph with a red graph on the screen. It is connected to a white module.

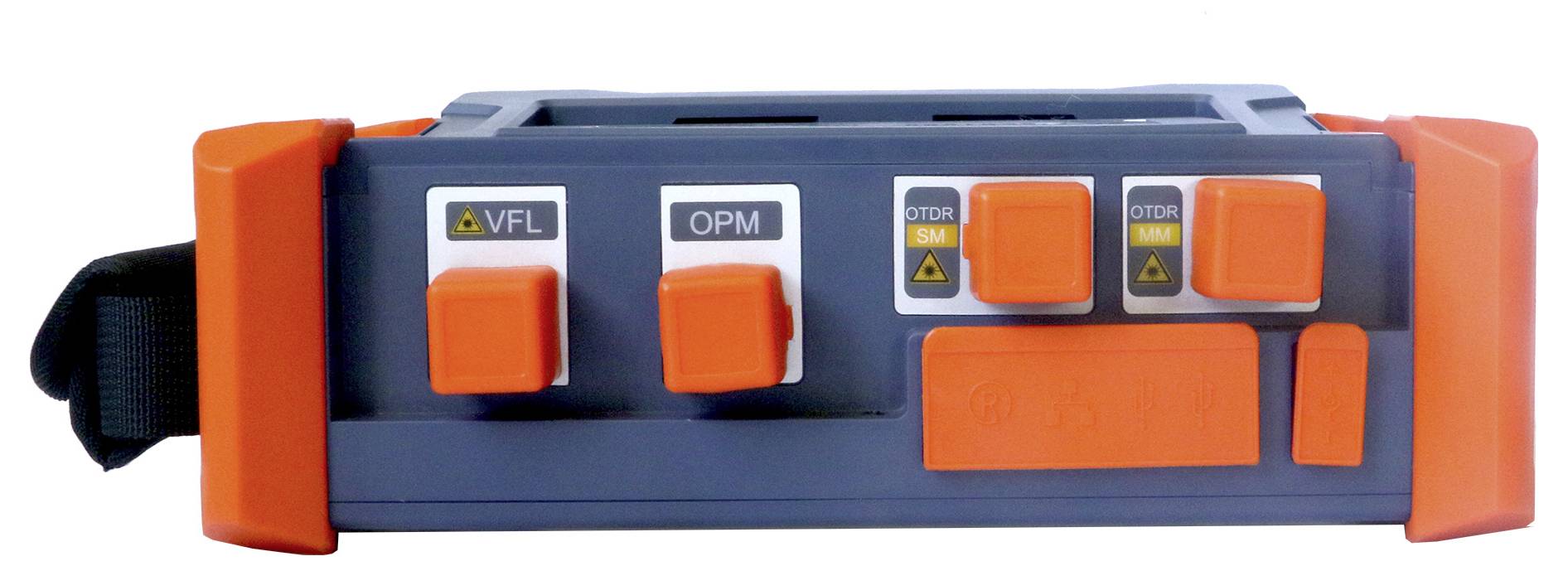

A portable device for optical power measurement with multiple buttons and displays, suitable for fibre optic testing.

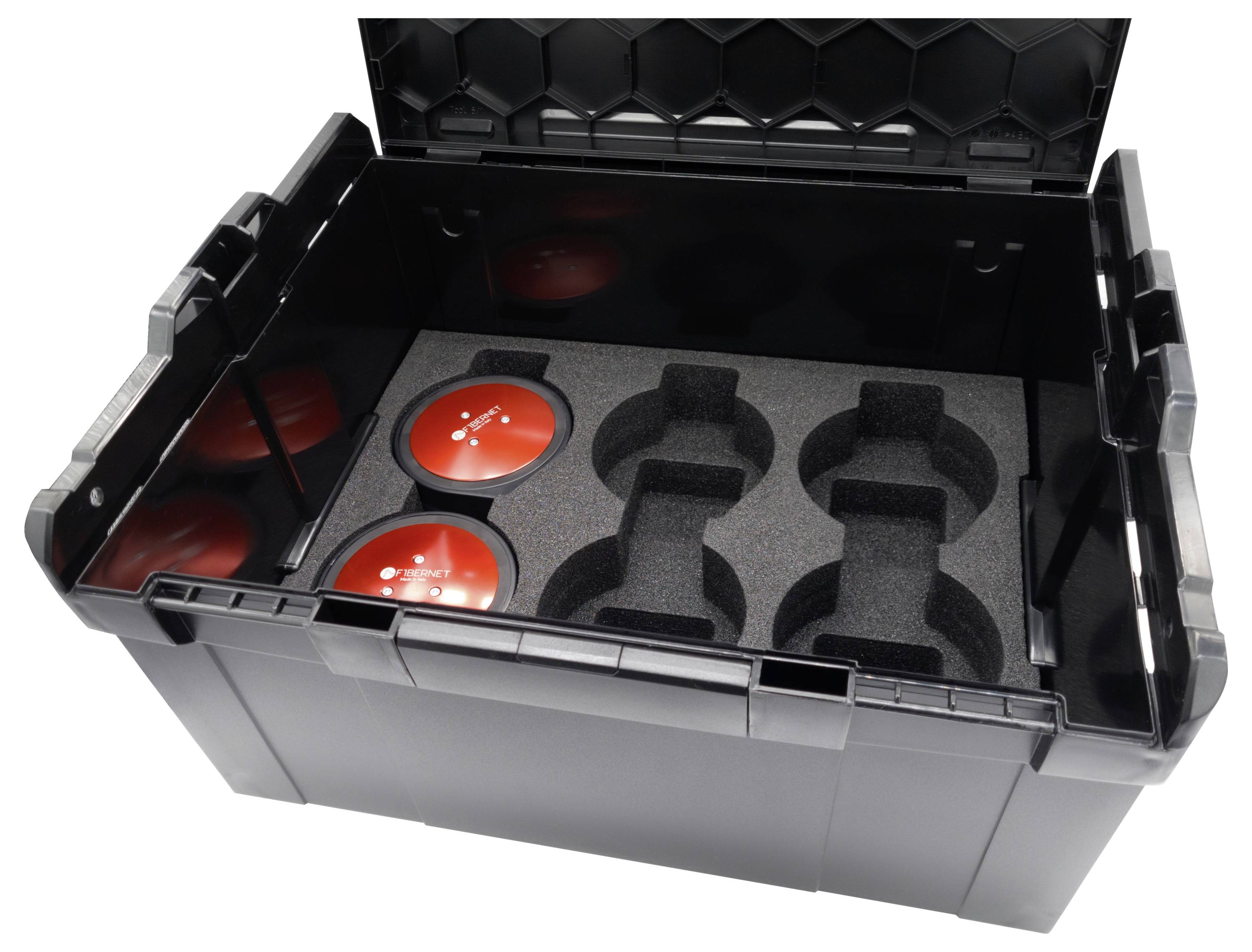

Black plastic container with an open lid, interior foam padding with three red round objects and space for more.

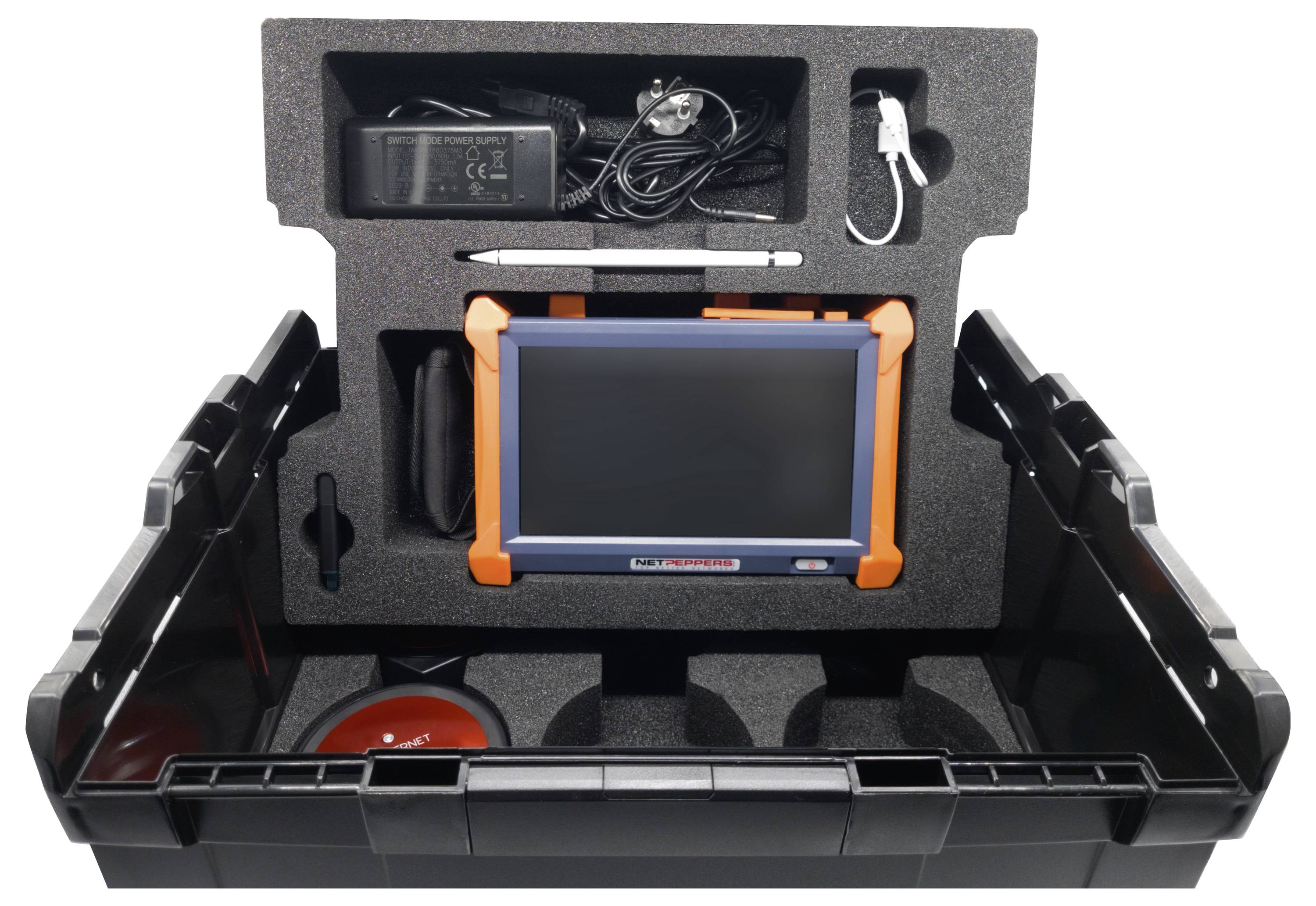

Diagnostic device in an open black case with charger, stylus and connectors. Suitable for automotive diagnostic tests.

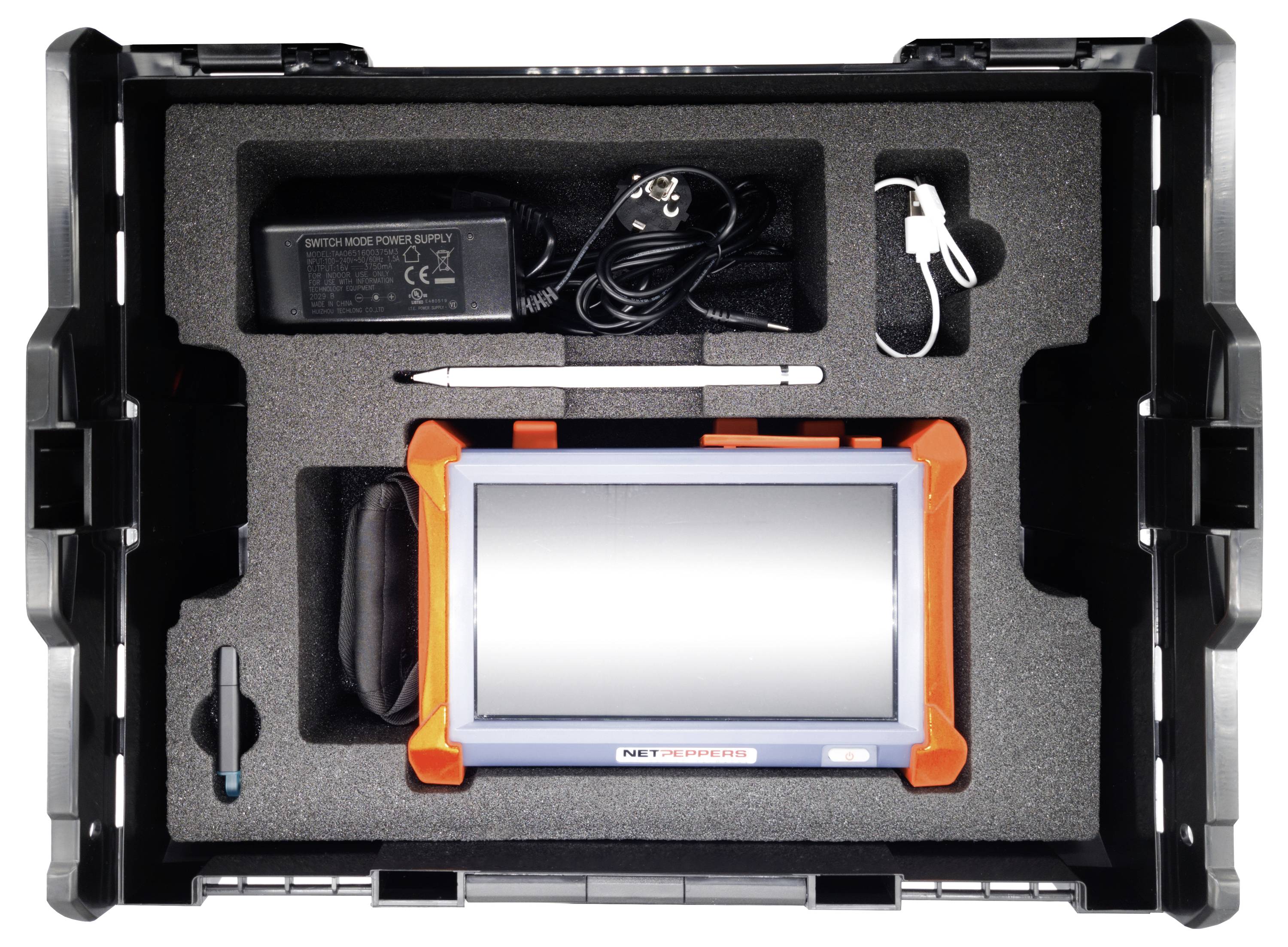

Portable monitor with an orange frame, stylus, charger, and cable in a black case with foam compartments.

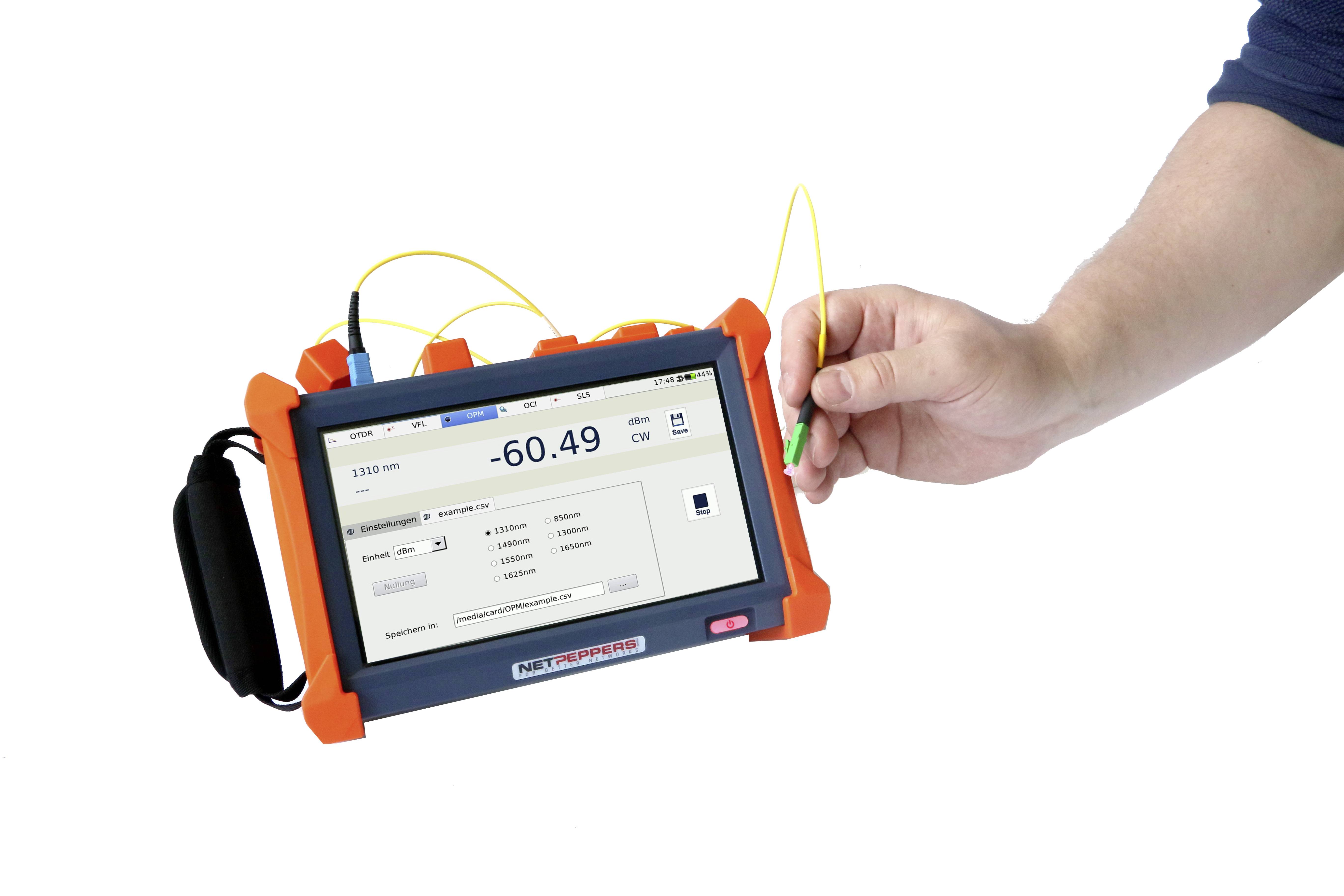

A hand is holding an optical measuring device for fibre optic connections. The display is showing measurement results. The device has orange protective corners.

1/9

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 6 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 9,709.00 / piece)

€ 9,709.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

NetPeppers OTDR 1000

Technical specifications

8.0" (20.32 cm) color touchscreen LCD (capacitive)
Resolution: 800 x 480 pixels
8 GB memory (6 GB free to save results)
Li-Ion 7.4 V/DC, 37 Wh, 5000 mAh
Battery life: 10 hours of continuous operation, operation possible while charging
Input: AC 100 – 240 V, 50/60 Hz, max. 1.5 A; Output: 16 V DC, max. 3.75 A
Boot time: Approx. 28 sec.
Linux operating system
EDZ (Event Dead Zone): 1 meters
ADC (Loss Dead Zone): 4.5 m (850/1300nm); 4 m (1310/1550nm)
Length units: Kilometers, feet, mile
Measuring times: Short, 15 seconds, 30 seconds, 45 seconds, 60 seconds, 90s, 120s, 180s
Measuring methods: Automatic, manual, 2-point, 5-point, LSA
Bi-directional measurement: Yes
Report generation: On the device itself
Stabilized light source: 850/1300 nm; 1310/1550 nm
Optical Power Meter 850/1300/1310/1490/1550/1625/1650 nm
LASER CLASS 1 M (OTDR); 2 (VFL)
Laser: LD-Laser
Connections:
2x USB 2.0
1x RJ45 LAN (10/100 Mbps)
1x VFL 2.5 mm ferrule UPP (universal push pull), adaptation possible
1x OPM SC (exchangeable)
1X OTDR SM SC/APC (EXCHANGEABLE FC, ST, LC)
1X OTDR MM SC/UPC (EXCHANGEABLE FC, ST, LC)
1x 16V DC Power

Product type: Multimeter

Display: LCD
Touchscreen

Optical display: Yes

Test sockets: SC

Dim: (L x W x H) 235 x 159 x 75 mm

Weight: 1.59 kg

Range: Networks

Features: Touchscreen

Width: 159 mm

Height: 75 mm

Length: 235 mm

Type: NP-FIBER1000

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3339538 Multimeter NP-FIBER1000 NetPeppers Networks

User & Safety Instructions

User & Safety Instructions 3339538 Multimeter NP-FIBER1000 NetPeppers Networks

Description

The OTDR1000 is the optimal platform for acceptance measurements or for troubleshooting in fiber optic networks. It offers enough reserves for applications in the FFTX, LAN and WAN areas, no matter whether Quad-version (SM/MM) or as pure single-mode OTDR.

This text is machine translated.

Features

UNIVERSAL USE
Multifunctional test platform with Quad-OTDR or Singlemode OTDR, level meter, light source, VFL and optional fiber microscope
FOR ALL COMMON WAVELENGTHS
Measurement for single mode (1310/1550nm) as well as multi-mode (850/1300nm) and single mode only
SIMPLE OPERATION
Powerful processor, 8" capacitive screen and intuitive user interface
FOR FTTX- AND BUILDING WIRING
High dynamic range and short dead zones
REPORTING
Support for numerous file formats, evaluation on the PC with the OTDR Trace Manager software

Scope of delivery

1x OTDR 1000 Quad main unit (incl. battery)
1x active touch-pen
1x charging cable for active touch-pen
1x USB-Stick incl. PC-software
1x Power adapter including cold device cable
1x Sortimo-compatible L-Boxx 238
1x calibration certificate
