Multimeter NP-FIBER1000SM NetPeppers Networks, Telecom
EAN:
Part number:
Item no:
Number
Total (€ 4,449.00 / piece)
€ 4,449.00
incl. VAT
14-day return policy included
Highlights & Details
OTDR 1000 Single mode
Technical specifications
- 8.0" (20.32 cm) color touchscreen LCD (capacitive)
- Resolution: 800 x 480 pixels
- 8 GB memory (6 GB free to save results)
- Li-Ion 7.4 V/DC, 37 Wh, 5000 mAh
- Battery life: 10 hours of continuous operation, operation possible while charging
- Input: AC 100 – 240 V, 50/60 Hz, max. 1.5 A; Output: 16 V DC, max. 3.75 A
- Boot time: Approx. 28 sec.
- Linux operating system
- EDZ (Event Dead Zone): 1.5 meters
- ADC (attenuation dead zone): 5 m (1310/1550nm)
- Length units: Kilometers, feet, mile
- Measuring times: Short, 15 seconds, 30 seconds, 45 seconds, 60 seconds, 90s, 120s, 180s
- Measuring methods: Automatic, manual, 2-point, 5-point, LSA
- Bi-directional measurement: Yes
- Report generation: On the device itself
- Stabilised light source 1310/1550 nm

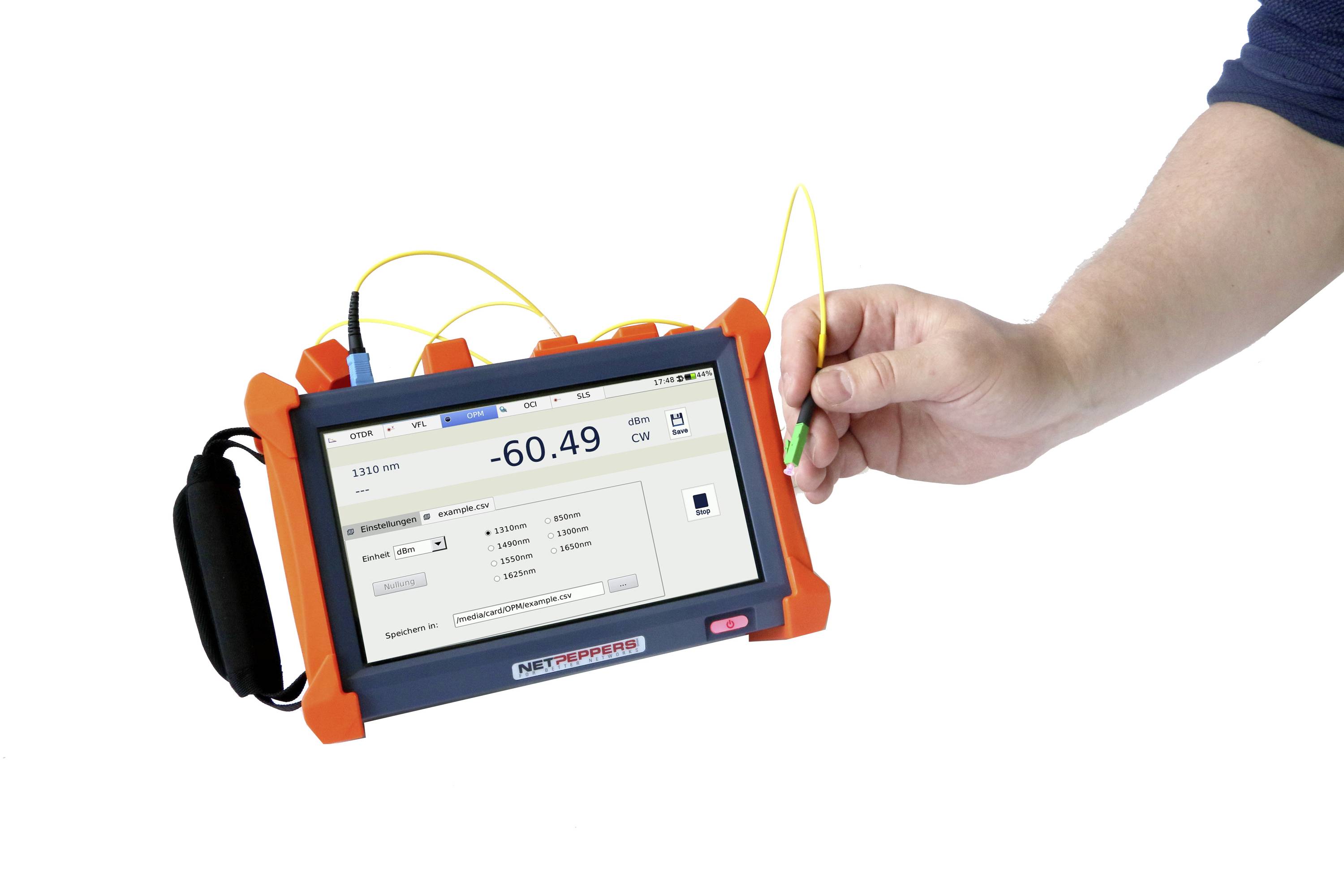

- Optical Power Meter 850/1300/1310/1490/1550/1625/1650 nm
- LASER CLASS 1 M (OTDR); 2 (VFL)
- Laser: LD-Laser
- Connections:
- 2x USB 2.0
- 1x RJ45 LAN (10/100 Mbps)
- 1x VFL 2.5 mm ferrule UPP (universal push pull), adaptation possible.
- 1x OPM SC (exchangeable)
- 1X OTDR SM SC/APC (EXCHANGEABLE FC, ST, LC)
- 1x 16V DC Power
- Product type
Multimeter
- Display
LCD
Touchscreen
- Optical display
Yes
- Test sockets
RJ45
- Dim
(L x W x H) 235 x 159 x 75 mm
- Weight
1.59 kg
- Range
Networks
Telecom
- Features
Touchscreen
- Width
159 mm
- Height
75 mm
- Length
235 mm
- Type
NP-FIBER1000SM
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3339544 Multimeter NP-FIBER1000SM NetPeppers Networks, Telecom
Description

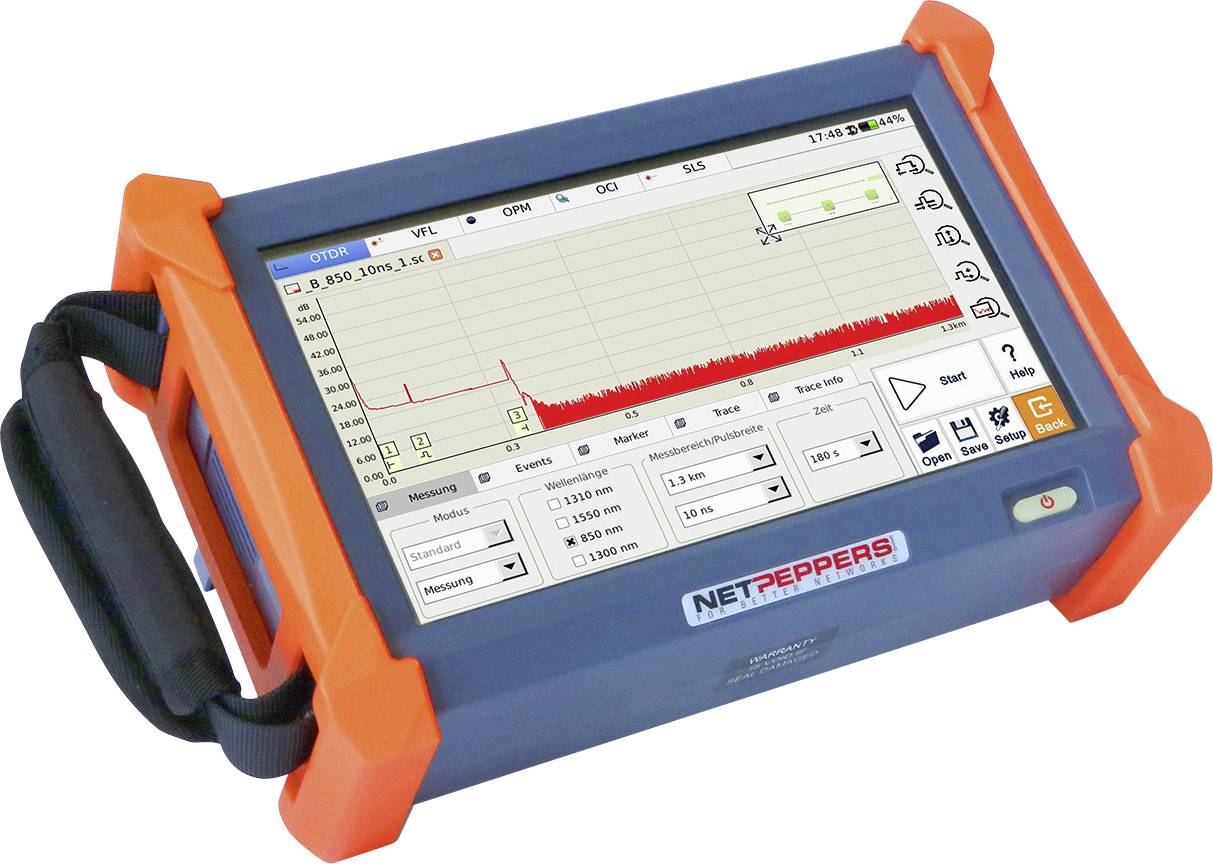

The OTDR1000 is the optimal platform for acceptance measurements or for troubleshooting in fiber optic networks. It offers enough reserves for applications in the FFTX, LAN and WAN areas, no matter whether Quad-version (SM/MM) or as pure single-mode OTDR.
This text is machine translated.
This text is machine translated.
Features
- UNIVERSAL USE
- Multifunctional test platform with Quad-OTDR or Singlemode OTDR, level meter, light source, VFL and optional fiber microscope
- FOR ALL COMMON WAVELENGTHS
- Measurement for single mode (1310/1550nm) as well as multi-mode (850/1300nm) and single mode only
- SIMPLE OPERATION
- Powerful processor, 8" capacitive screen and intuitive user interface
- FOR FTTX- AND BUILDING WIRING
- High dynamic range and short dead zones
- REPORTING
- Support for numerous file formats, evaluation on the PC with the OTDR Trace Manager software

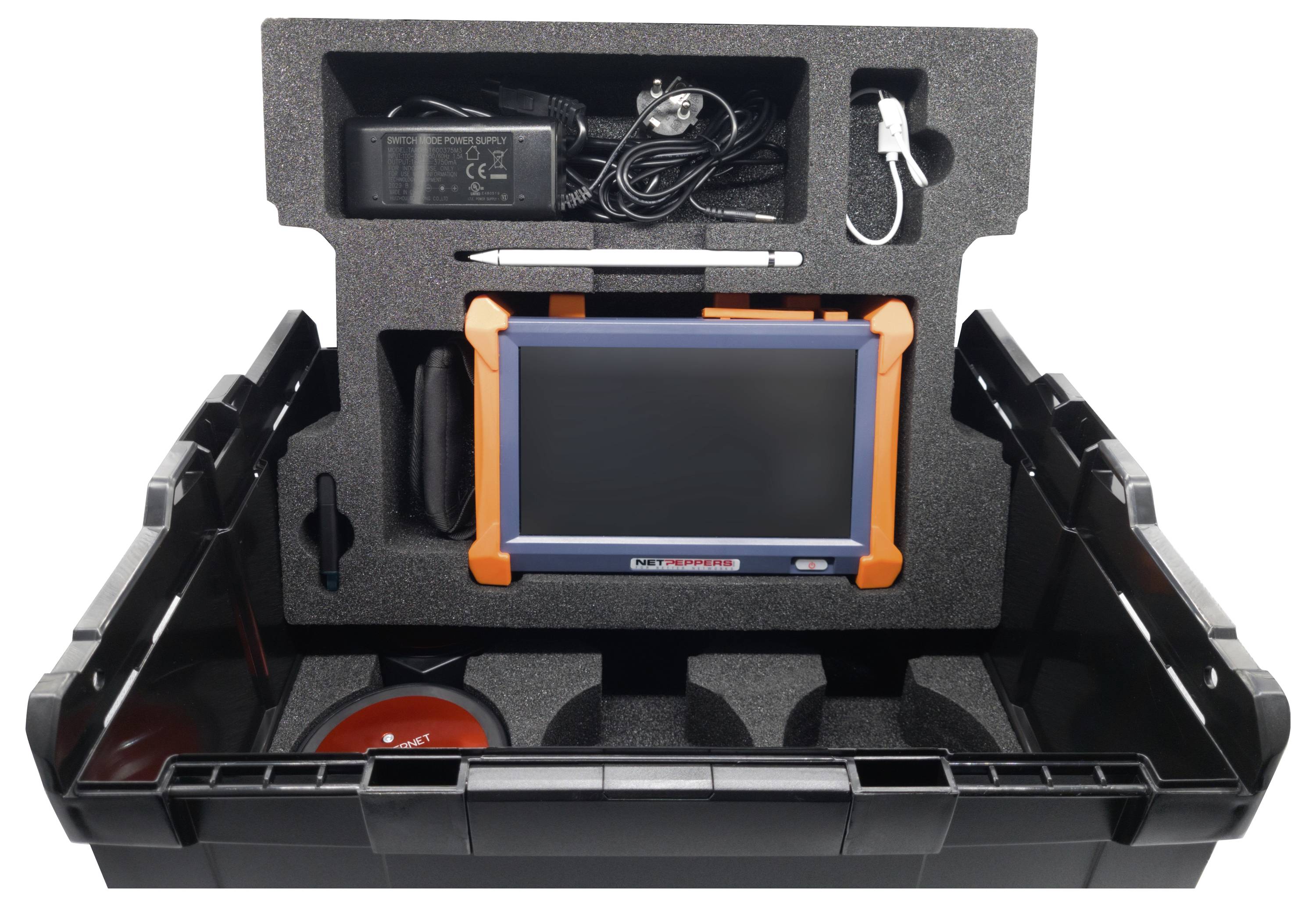

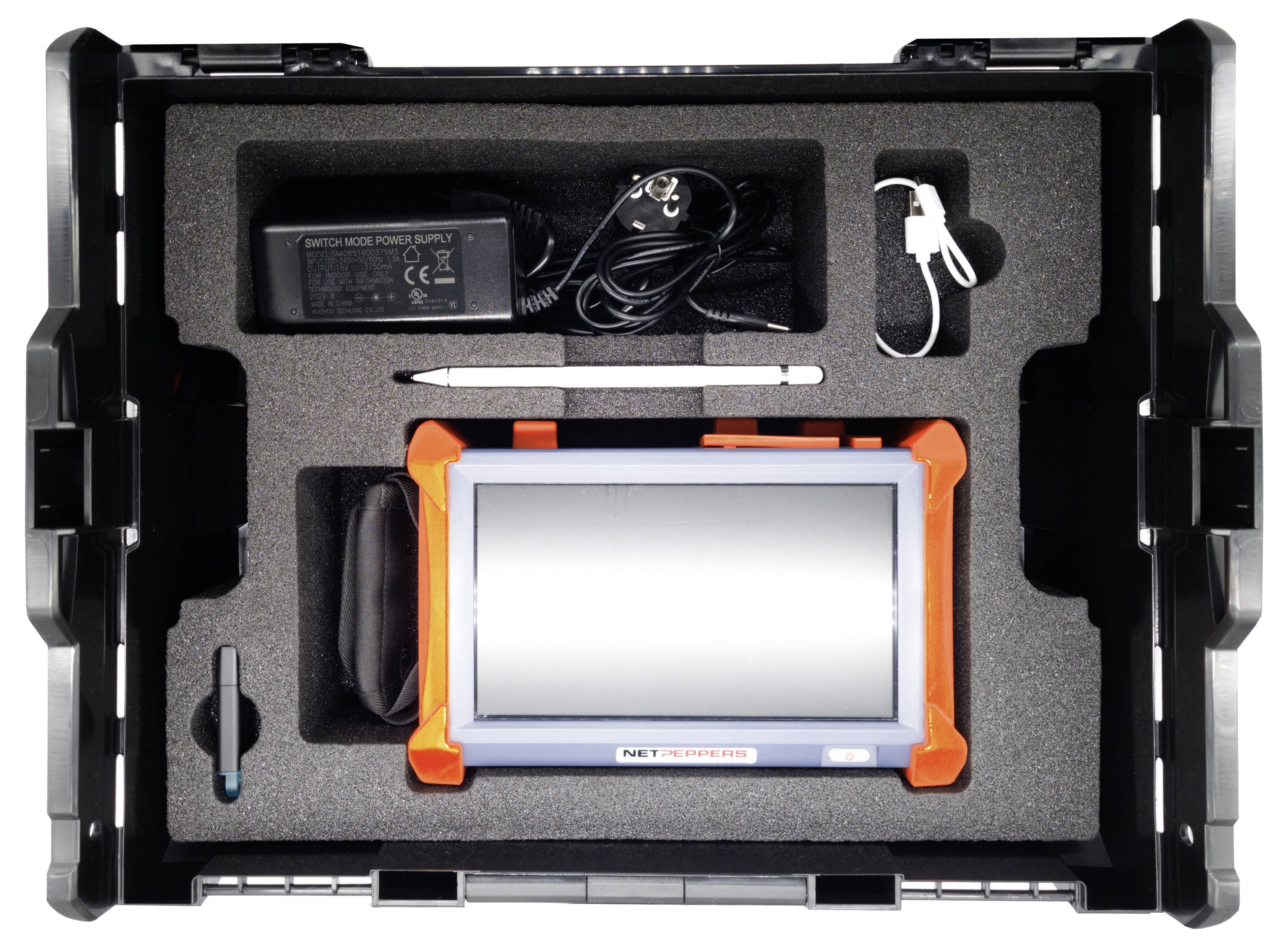

Scope of delivery
- 1x OTDR 1000 single mode main device (including battery)
- 1x active touch-pen
- 1x charging cable for active touch-pen
- 1x USB-Stick incl. PC-software
- 1x Power adapter including cold device cable

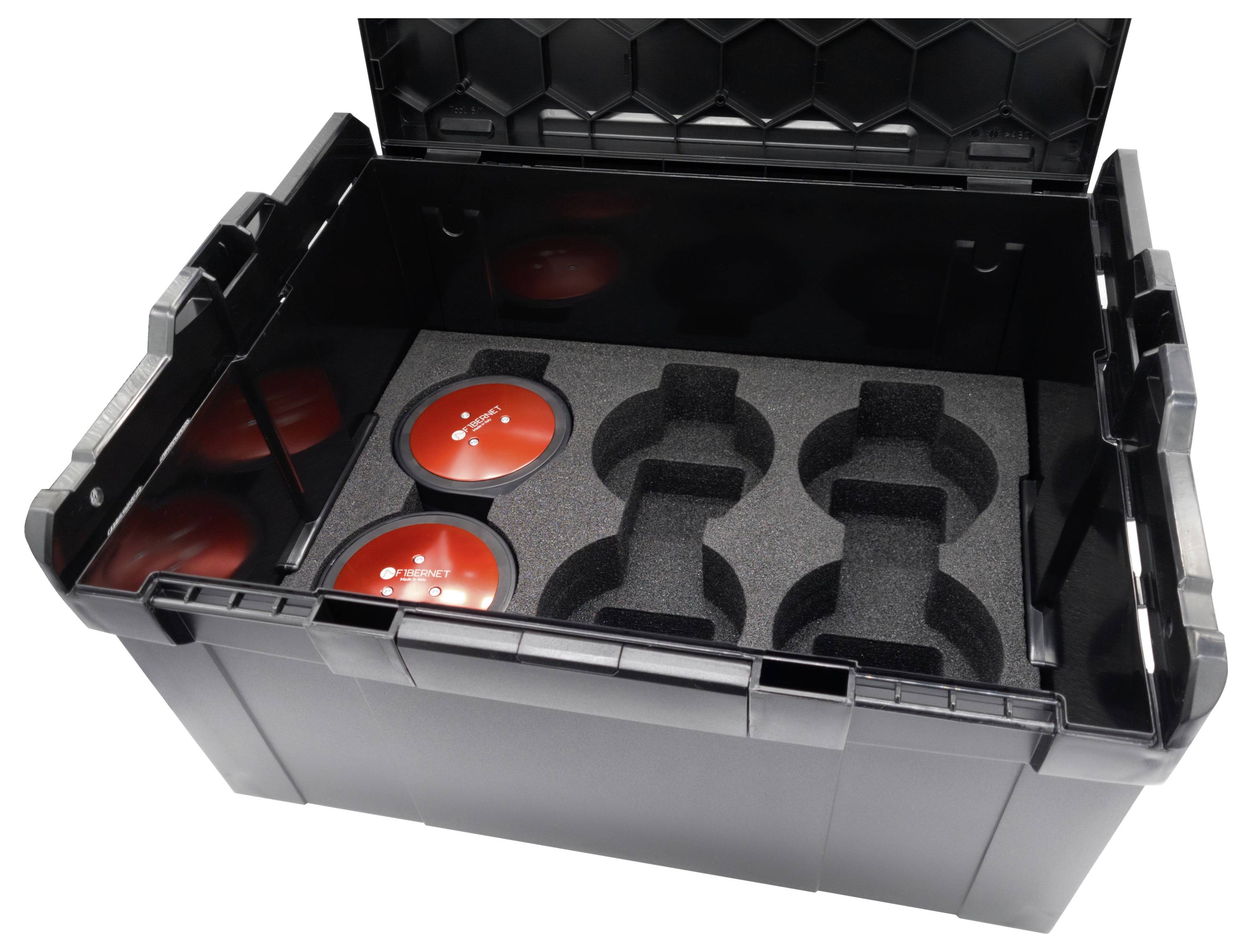

- 1x Sortimo-compatible L-Boxx 238
- 1x calibration certificate
