Network cable tester STNT-KIT Trend Networks SignalTEK NT Testpaket Networks
EAN:
Part number:
Item no:
Number
Total (€ 3,284.87 / piece)
€ 3,831.09
-14 %
€ 3,284.87
plus VAT.
Only 6 Set(s) available
SIGNALTEK NT test package
Highlights & Details
Technical specifications
- Product type
Network cable tester
- Function
Cable tracking
- Max. cable length
181 m
- Acoustic signal
Yes
- Display
Digital
- Optical display
Yes
- Test sockets
LC plug
- Dim
(W x H x D) 80 x 175 x 40 mm
- Weight
400 g
- Range
Networks
- Features
Touchscreen
- Width
80 mm
- Height
175 mm
- Depth
40 mm
- Type
SignalTEK NT Testpaket
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2585989 Network cable tester STNT-KIT Trend Networks SignalTEK NT Testpaket Networks
Information
Information 2585989 Network cable tester STNT-KIT Trend Networks SignalTEK NT Testpaket Networks
Description
SIGNALTEK NT test package for the performance testing of copper and glass fiber links includes SIGNALTEK NT qualifiers. 850nm SFP module, 1310nm SFP module, 1.25mm (LC) fiber optic cleaning pin, 2-12 active remote adapter kit. SIGNALTEK NT is a handy transmission tester with capacitive touch screen to prove the correct installation of copper and fiber optic cables with support for voice, video, data, CCTV applications over 10/100 megabit and Gigabit Ethernet. The handheld is equipped with many network troubleshooting features such as per-pin/pair wiremap testing, length measurement with TDR technology, tone generator for cable locating with inductive receiver and Ethernet connection testing. The data storage records up to 5,000 tests and the test reports can be displayed in 3 versions and can be passed on quickly and easily via WiFi and the Anyware app in the clear PDF format or CSV. The active remote adapters from 2 to 12 enable an efficient use when testing in one-man operation.
This text is machine translated.
This text is machine translated.

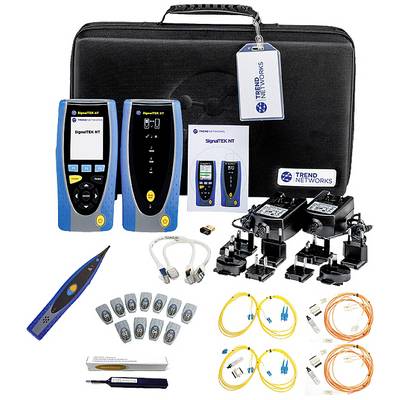

Scope of delivery
- 1 hand-held device with touch-screen and 1 remote device
- 2 battery modules
- 2 power supplies/chargers
- 2 RJ45-cable 30cm
- 1 WiFi adapter
- 1 quick instructions
- 1 850nm SFP module
- 1 1310nm SFP module
- Fiber optic cleaning pen 1.25mm (LC)
- 11 active remote adapters # 2-12, 1 inductive receiver
- 1 carrying case
