ORBIS Zeitschalttechnik kW-Zähler OB7010000 Electricity meter (AC) Digital 100 A MID-approved: Yes 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electricity meter (AC)
Current load
100 A
Display
Digital
Calibration
Calibrated
Counter type
Active power meter (direct measurement)
Datasheet (PDF)
Number
Total (€ 105.03 / piece)
€ 105.03
plus VAT.
14-day return policy included
Highlights & Details

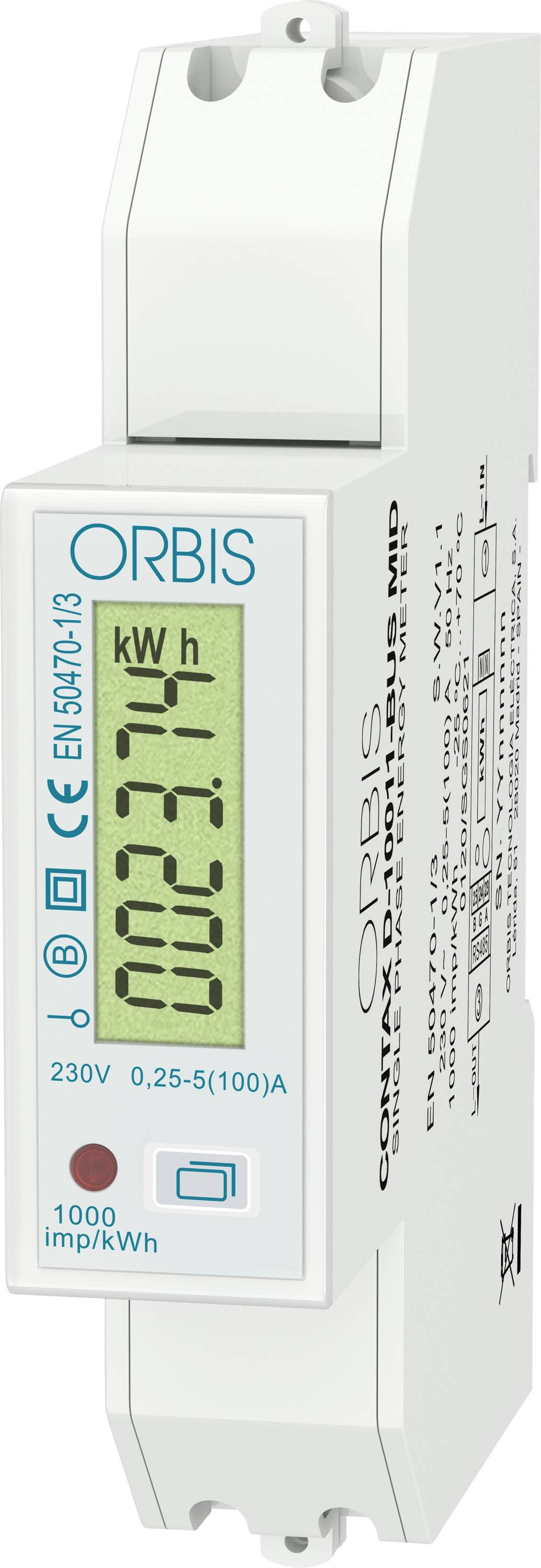

CONTAX D-10011 BUS MID 1-phase AC meter
- MID calibrated for power data acquisition relevant to account
- Integrated RS485 interface with Modbus RTU protocol
- Compact design with only 1 division unit (1 HP = 18 mm)
- Precise direct measurement up to 100 A alternating current
- Illuminated digital LCD-display
Technical specifications
- Protection class: II
- Operating temperature: -25 °C to + +55 °C.
- Mounting:35 mm DIN rail (EN 60715)
- Counter type
Active power meter (direct measurement)
- Product type
Electricity meter (AC)
- Current load
100 A
- Display
Digital
- Calibration
Calibrated
- Operating voltage
230 V AC
- Special feature
MID approval for accounting purposes combined with RS485 Modbus RTU on only 1 TE width
- Factory colour
White
Grey
- Dim
(L x W x H) 62 x 18 x 90 mm
- Weight
120
- Starting current
20 mA
- Starting current
Empfindliche Verbrauchserfassung bereits ab 0,02 A
- Display
6+1-digit LCD display (999999.9 kWh)
- Display range
0.0 to 999 999.9 kWh
- Operating voltage
230 V AC
- Self-consumption
0.4 W
- Own consumption
Very low energy consumption of measurement and display electronics
- Recess width
18 mm
- Recess length
90 mm
- Frequency
50 Hz
- Accuracy class
Class B / Class 1
- MID-approved
Yes
- Reading type
Active energy
Voltage
Amperage
Active power
Frequency
- Nominal voltage range
184 up to 265 V AC
- Mains voltage (max.)
265 V AC
- Mains voltage (min.)
184 V AC
- Width
18 mm
- Height
90 mm
- Length
62 mm
- Current (max.)
100 A
- Current (min.)
0.02 A
- Current range
0.02 up to 100 A
- Type
kW-Zähler
- Effective power range
0 bis 23 kW
- Effective current range
0,02 A bis 100 A
- Power factor Cos φ (max.)
1
- Power factor Cos φ (min.)
0
- Power (max.)
23 kW
- Active power (min.)
4.6 W
- Active power range
4.6 up to 23 kW
Documents & Downloads
Datasheet
Datasheet 3828163 ORBIS Zeitschalttechnik kW-Zähler OB7010000 Electricity meter (AC) Digital 100 A MID-approved: Yes 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3828163 ORBIS Zeitschalttechnik kW-Zähler OB7010000 Electricity meter (AC) Digital 100 A MID-approved: Yes 1 pc(s)
Description
Digital energy meter for single phase circuits up to 100 A. RS-485 output and Modbus protocol (RTU) that allows the connection of the device to a power monitoring system. MID-certified as per European directive 2004/22/CE concerning measuring instruments.
This text is machine translated.
This text is machine translated.
Features
- 6+1-digit LCD display with backlight
- Integrated RS485 communications interface (Modbus RTU)
- Programmable S0 impulse output according to IEC 62053-31
- Lead-sealable terminal covers for protection against manipulation
- LED-pulse display for operation and consumption
Scope of delivery
- 1x alternating current counter Orbis CONTAX D-10011 BUS MID (OB7010000)
- Terminal cover
- Installation and operating instructions
