ORBIS Zeitschalttechnik kW-Zähler OB709200 Electricity meter (AC) Digital 100 A MID-approved: No 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electricity meter (AC)
Current load
100 A
Display
Digital
Counter type
Active power meter (direct measurement)
Operating voltage
230 V AC
Datasheet (PDF)
Number
Total (€ 130.24 / piece)
€ 130.24
plus VAT.
14-day return policy included
Highlights & Details

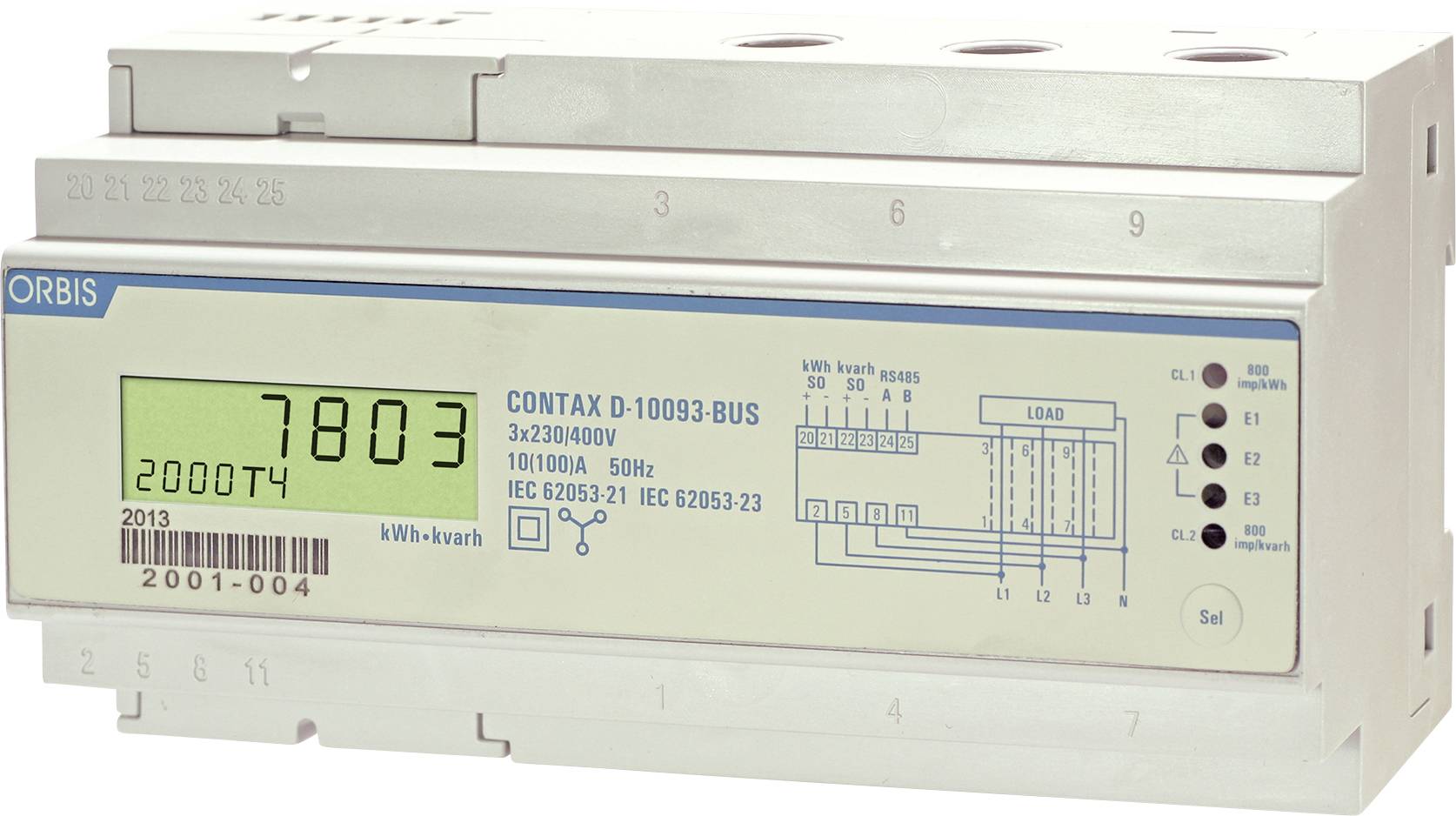

CONTAX D-10093 BUS three-phase, digital multifunction energy meter
- Measurement and recording up to 100 A (direct measurement)
- Integrated RS485 interface with Modbus RTU protocol
- Illuminated digital LCD display for clear readability
Technical specifications
- Protection class: II
- Operating temperature -20 °C to +55 °C
- Counter type
Active power meter (direct measurement)
- Product type
Electricity meter (AC)
- Current load
100 A
- Display
Digital
- Operating voltage
230 V AC
- Special feature
Space-saving design (1 TE) with high measurement capacity to 100 A and fully integrated Modbus RTU communication
- Factory colour
White
Grey
- Dim
(L x W x H) 62 x 18 x 90 mm
- Weight
120
- Starting current
20 mA
- Starting current
Empfindliche Schwellenwert-Erfassung ab 0,02 A zur Erfassung kleinster Standby-Verbräuche
- Display
7-digit LCD-display
- Display range
0.0 to 999 999.9 kWh
- Type
Modular mounted in series counter for 35 mm DIN top hat rail (1 TE)
- Operating voltage
230 V AC
- Self-consumption
0.4 W
- Own consumption
Minimum intrinsic consumption of the internal measurement and communication electronics
- Recess width
18
- Recess length
90 mm
- Frequency
50 Hz
- Accuracy class
Class 1 / Class B
- MID-approved
No
- Reading type
Active energy
Voltage
Amperage
Frequency
Power
- Nominal voltage range
195 up to 276 V AC
- Mains voltage (max.)
276 V AC
- Mains voltage (min.)
195 V AC
- Width
18 mm
- Height
90 mm
- Length
62 mm
- Current (max.)
100 A
- Current (min.)
0.02 A
- Current range
0.02 up to 100 A
- Type
kW-Zähler
- Effective power range
0 bis 23 kW
- Effective current range
0,02 A bis 100 A
- Power factor Cos φ (max.)
1
- Power factor Cos φ (min.)
0
- Power (max.)
23 kW
- Active power (min.)
4.6 W
- Active power range
4.6 up to 23 kW
Documents & Downloads
Datasheet
Datasheet 3828165 ORBIS Zeitschalttechnik kW-Zähler OB709200 Electricity meter (AC) Digital 100 A MID-approved: No 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3828165 ORBIS Zeitschalttechnik kW-Zähler OB709200 Electricity meter (AC) Digital 100 A MID-approved: No 1 pc(s)
Description
Digital energy meter for circuits up to 100 ampere. RS-485 output and Modbus protocol (RTUd) that allows the device to be connected to a power monitoring system. Possibility of programming of up to 4 tariffs. Internal register memory and the option of reading and changing the load curve registers.
This text is machine translated.
This text is machine translated.
Features
- 6+1-digit LCD display with backlight
- Integrated RS485 communications interface (Modbus RTU)
- S0-Impulse output according to IEC 62053-31
- Sealable terminal cover for protection against manipulation
Scope of delivery
- 1x alternating current counter Orbis CONTAX D-10093 BUS (OB709200)
- operating and installation instructions
