Name: ORBIS Zeitschalttechnik kW-Zähler OB709300 Electricity meter (AC) Digital 60 A MID-approved: No 1 pc(s)
Brand: ORBIS Zeitschalttechnik
SKU: 3828167
Availability: InStock

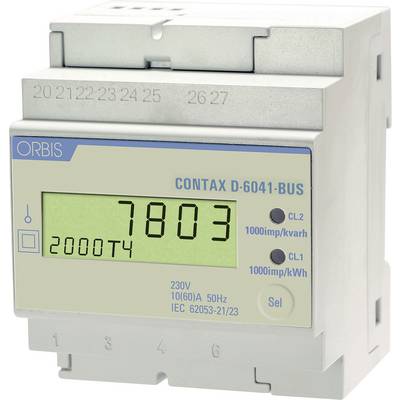

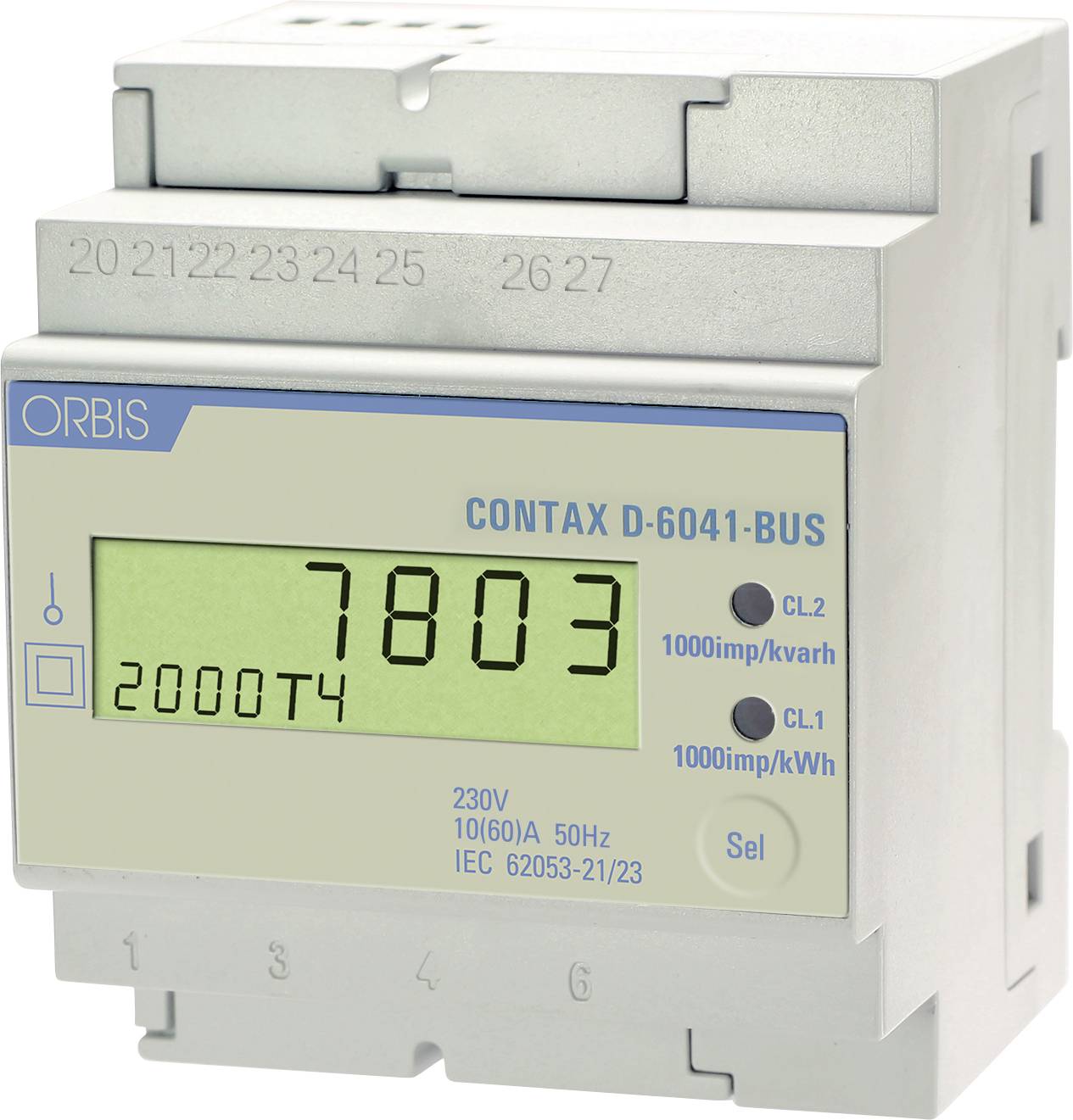

Digital electricity meter display showing reading 7803, labeled ORBIS CONTAX D-6041-BUS with 2000T4 on the screen.<br>

Product type

Electricity meter (AC)

Current load

60 A

Display

Digital

Counter type

Electronic / static (direct measurement)

Operating voltage

230 V AC

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 5 Nov

5 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 71.99 / piece)

€ 71.99

incl. VAT

Only 5 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

CONTAX D-6041 BUS 1-phase digital AC meter with M-Bus interface

Digital, multifunctional AC meter (AC networks)
Integrated RS-485 interface with Modbus-RTU protocol
Direct connection up to max. 60 A
Bi-directional power measurement (effective and reactive)
Programmable for up to 4 tariffs and with internal load cycle memory

Technical specifications

Interface RS-485 (Modbus RTU)
Pulse constant: 1000 pulse/kWh / 1000 imp/kvarh
IP20 to EN 60529 standard
Operating temperature: -25 °C to + +65 °C.
Mounting type:DIN-top hat rail (EN 60715 / TH35)

Counter type: Electronic / static (direct measurement)

Product type: Electricity meter (AC)

Current load: 60 A

Display: Digital

Operating voltage: 230 V AC

Special feature: Bidirectional
Modbus RTU communication
4 tariffs can be programmed

Factory colour: White
Grey

Dim: (L x W x H) 65 x 72 x 90 mm

Weight: 280 g

Starting current: 0.025 A

Starting current: 25 mA (bei Leistungsfaktor Cos φ = 1)

Display: Digital LCD-display

Display range: Multi parameter

Type: DIN rail mounting device / DIN rail mounting unit (4 TE)

Operating voltage: 230 V AC

Recess width: 72

Recess length: 35 cm

Frequency: 50 Hz

Accuracy class: Class 1 (active energy), Class 2 (reactive energy)

MID-approved: No

Reading type: Active energy
Amperage
Voltage
Active power
Reactive power
Apparent power

Nominal voltage range: 184 up to 264 V AC

Mains voltage (max.): 264 V AC

Mains voltage (min.): 184 V AC

Width: 72 mm

Height: 90 mm

Length: 65 mm

Current (max.): 60 A

Current (min.): 0.5 A

Current range: 0.5 up to 60 A

Type: kW-Zähler

Effective power range: 0 kW bis 13,8 kW

Effective current range: 0,5 A bis 60 A

Power factor Cos φ (max.): 1

Power factor Cos φ (min.): 0.5

Power (max.): 13.8 kW

Active power (min.): 0 W

Active power range: 0 up to 13.8 kW

Variants(All information include VAT, plus shipping costs)

Counter type

Current load

Display

Product type

Display

Special feature

ORBIS Zeitschalttechnik kW-Zähler OB709300 Electricity meter (AC) Digital 60 A MID-approved: No 1 pc(s)

Item no:3828167

Fast track dispatch on Thu 5 Nov

5 Piece(s)Conrad Electronic

This article

Electronic / static (direct measurement)

60 A

Digital

Electricity meter (AC)

Digital LCD-display

Bidirectional<br>Modbus RTU communication<br>4 tariffs can be programmed

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 71.99^*

ORBIS Zeitschalttechnik kW-Zähler OB7010000 Electricity meter (AC) Digital 100 A MID-approved: Yes 1 pc(s)

Item no:3828163

Fast track dispatch on Thu 5 Nov

2 Piece(s)Conrad Electronic

Active power meter (direct measurement)

100 A

Digital

Electricity meter (AC)

6+1-digit LCD display (999999.9 kWh)

MID approval for accounting purposes combined with RS485 Modbus RTU on only 1 TE width

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 119.99^*

ORBIS Zeitschalttechnik kW-Zähler OB7010001 Electricity meter (AC) Digital 40 A MID-approved: No 1 pc(s)

Item no:3828170

Fast track dispatch on Thu 5 Nov

5 Piece(s)Conrad Electronic

Active current meter (single phase)

40 A

Digital

Electricity meter (AC)

Smartphone APP (graphical representation) & LED-pulse display on the device

Data transfer directly to your smartphone via Wi-Fi and Bluetooth

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 89.99^*

ORBIS Zeitschalttechnik kW-Zähler OB7010002 Electricity meter (AC) Digital 100 A MID-approved: Yes 1 pc(s)

Item no:3828164

Fast track dispatch on Thu 5 Nov

5 Piece(s)Conrad Electronic

Active power meter (direct measurement, MID tested)

100 A

Digital

Electricity meter (AC)

7 digit LCD display ($6+1$ digits, e.g. 999999.9 kWh)

Officially calibrated MID device with integrated Modbus RTU bus communication with minimum width (1 TE)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 154.99^*

ORBIS Zeitschalttechnik kW-Zähler OB702000 Electricity meter (AC) Digital 25 A MID-approved: Yes 1 pc(s)

Item no:3828161

Fast track dispatch on Thu 5 Nov

5 Piece(s)Conrad Electronic

Active power meter (direct measurement)

25 A

Digital

Electricity meter (AC)

6+1 digit LCD display (6 integers + 1 decimal digits)

Official MID compliance ex-factory for calibrated electricity bills

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 59.99^*

ORBIS Zeitschalttechnik kW-Zähler OB703100 Electricity meter (AC) Digital 32 A MID-approved: No 1 pc(s)

Item no:3828166

Fast track dispatch on Thu 5 Nov

4 Piece(s)Conrad Electronic

Active power meter (direct measurement)

32 A

Digital

Electricity meter (AC)

7-digit LCD-display

Ultra-compact design (1 TE) with integrated S0-impulse interface

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 40.99^*

ORBIS Zeitschalttechnik kW-Zähler OB707100 Electricity meter (AC) Digital 65 A MID-approved: No 1 pc(s)

Item no:3828169

Fast track dispatch on Thu 5 Nov

4 Piece(s)Conrad Electronic

Electronic/static active current meter (direct measurement)

65 A

Digital

Electricity meter (AC)

LCD, 5 integers + 1 decimal digit (kWh)

LED pulse display (1 pulse/Wh) for visual consumption control and optocoupler output (1000 pulses/kWh)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 49.99^*

ORBIS Zeitschalttechnik kW-Zähler OB708100 Electricity meter (AC) Digital 63 A MID-approved: No 1 pc(s)

Item no:3828168

Fast track dispatch on Thu 5 Nov

5 Piece(s)Conrad Electronic

Electronic single-phase meter (direct measurement)

63 A

Digital

Electricity meter (AC)

LCD display, 7 digit for total counter (not resettable) and 5 digit for time counter (resettable)

Integrated LCD-display with resettable counter and S0-interface for remote reading

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 109.99^*

ORBIS Zeitschalttechnik kW-Zähler OB708600 Electricity meter (3-phase) Digital 63 A 1 pc(s)

Item no:3828126

Fast track dispatch on Thu 5 Nov

5 Piece(s)Conrad Electronic

Active power meter (direct measurement)

63 A

Digital

Electricity meter (3-phase)

7-digit LCD-display

Integrated RS485 communications interface (Modbus RTU) for remote data transmission

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 89.99^*

ORBIS Zeitschalttechnik kW-Zähler OB708800 Electricity meter (AC) Mechanical 40 A 1 pc(s)

Item no:3828127

Fast track dispatch on Thu 5 Nov

5 Piece(s)Conrad Electronic

Active power meter (direct measurement)

40 A

Mechanical

Electricity meter (AC)

Electromechanical roller counter

Safe from power failure counter by mechanical roll arrangement

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 89.99^*

Documents & Downloads

Datasheet

Datasheet 3828167 ORBIS Zeitschalttechnik kW-Zähler OB709300 Electricity meter (AC) Digital 60 A MID-approved: No 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3828167 ORBIS Zeitschalttechnik kW-Zähler OB709300 Electricity meter (AC) Digital 60 A MID-approved: No 1 pc(s)

Description

Digital energy meter for circuits up to 60 ampere. RS-485 output and Modbus protocol (RTUd) that allows the device to be connected to a power monitoring system. Possibility of programming of up to 4 tariffs. Internal register memory and the option of reading and changing the load curve registers.

This text is machine translated.
