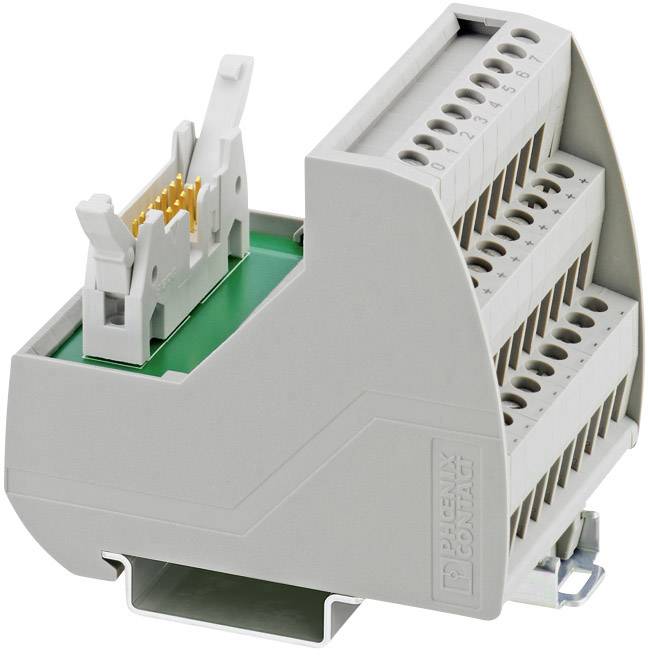

Passive module VIP-3/SC/FLK14/8IM/PLC 2322278 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Passive module
Total no. of pins
14
Stripping length (max.)
8 mm
Dim
(L x W x H) 62 x 52.3 x 69 mm
Connector (field)
Screws
Datasheet (PDF)
Number
Total (€ 70.58 / piece)
€ 70.58
plus VAT.
14-day return policy included
Technical specifications
- Product type
Passive module
- Total no. of pins
14
- Stripping length (max.)
8 mm
- Dim
(L x W x H) 62 x 52.3 x 69 mm
- Connector (field)
Screws
- Connector (control)
IDC/FLK strip
- Content
1 pc(s)
- Number of pins
14
- Width
52.3 mm
- Height
69 mm
- Length
62 mm
- Series
Varioface-VIP-3/SC
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
4 mm²
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Features
Any orientation
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 589045 Passive module VIP-3/SC/FLK14/8IM/PLC 2322278 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 589045 Passive module VIP-3/SC/FLK14/8IM/PLC 2322278 Phoenix Contact
Description
VARIOFACE sensor module, for connecting 8 pnp sensors
