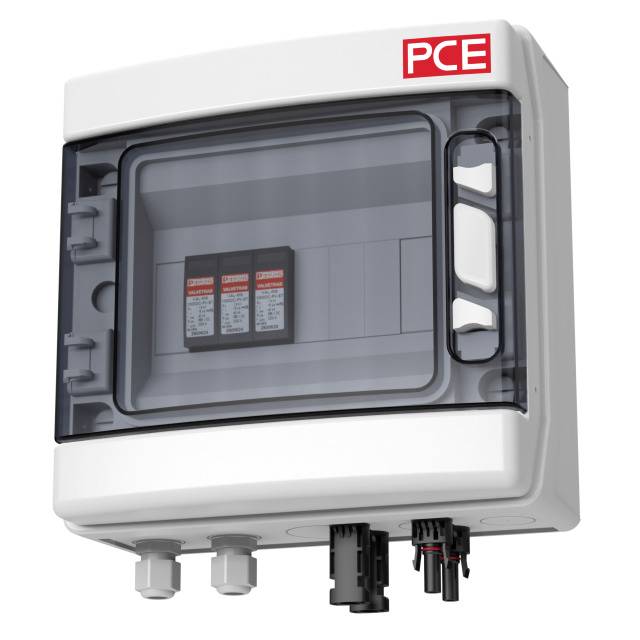

PC Electric 090PV033 SOL-LINE DC1-TS-MC-TYP1/2 PV control system
EAN:
Part number:
Item no:
Number
Total (€ 285.00 / piece)
€ 285.00
incl. VAT
14-day return policy included
Technical specifications
- Product type
PV control system
- Dim
(W x H x D) 238 x 231 x 118 mm
- Content
1 pc(s)
- Width
238 mm
- Height
231 mm
- Depth
118 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2936837 PC Electric 090PV033 SOL-LINE DC1-TS-MC-TYP1/2 PV control system
Description
Type 1+2 system solution for PV systems with 1 MPP tracker, 1000V DC
Plastic housing (238x231x118mm) with a transparent window for max. 8 units
Number of MPP trackers: 1 / number of strings per MPP: 1-2
1x lightning current/surge arrester type 1+2 (PC)
1x DC isolating switch 32A 1000V DC 2p
6x PV-Connectors
2x M16 cable glands for earth conductor connection
ready wired
Protection system: IP65
This text is machine translated.
Plastic housing (238x231x118mm) with a transparent window for max. 8 units
Number of MPP trackers: 1 / number of strings per MPP: 1-2
1x lightning current/surge arrester type 1+2 (PC)
1x DC isolating switch 32A 1000V DC 2p
6x PV-Connectors
2x M16 cable glands for earth conductor connection
ready wired
Protection system: IP65
This text is machine translated.
