PC Electric 090PV009 SOL-LINE DC2-MC-TYP2 PV control system
EAN:
Part number:
Item no:
Number
Total (€ 214.29 / piece)
€ 214.29
plus VAT.
14-day return policy included
Technical specifications
- Product type
PV control system
- Dim
(W x H x D) 238 x 231 x 118 mm
- Content
1 pc(s)
- Width
238 mm
- Height
231 mm
- Depth
118 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2936829 PC Electric 090PV009 SOL-LINE DC2-MC-TYP2 PV control system
Description

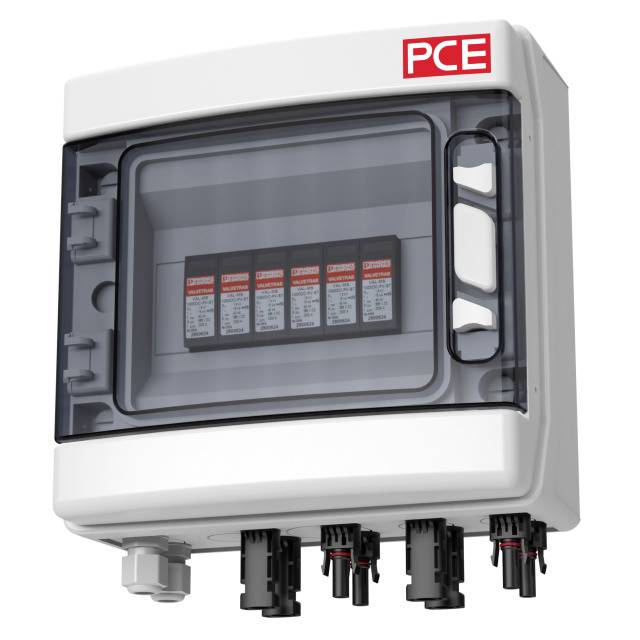

Type 2 system solution for PV systems with 2 MPP tracker, 1000V DC
Plastic housing (238x231x118mm) with a transparent window for max. 8 units
Number of MPP trackers: 2 / number of strings per MPP: 1
2x surge suppressor type 2 (PC)
8x PV-plug connector
2x M16 cable glands for earth conductor connection
Ready wired
Protection system: IP65
This text is machine translated.
Plastic housing (238x231x118mm) with a transparent window for max. 8 units
Number of MPP trackers: 2 / number of strings per MPP: 1
2x surge suppressor type 2 (PC)
8x PV-plug connector
2x M16 cable glands for earth conductor connection
Ready wired
Protection system: IP65
This text is machine translated.
