PC Electric 090PV039 SOL-LINE DC2-TS-MC-TYP1/2 PV control system
EAN:
Part number:
Item no:
Number
Total (€ 559.00 / piece)
€ 559.00
incl. VAT
14-day return policy included
Technical specifications
- Product type
PV control system
- Dim
(W x H x D) 418 x 246 x 148 mm
- Content
1 pc(s)
- Width
418 mm
- Height
246 mm
- Depth
148 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2936839 PC Electric 090PV039 SOL-LINE DC2-TS-MC-TYP1/2 PV control system
Description

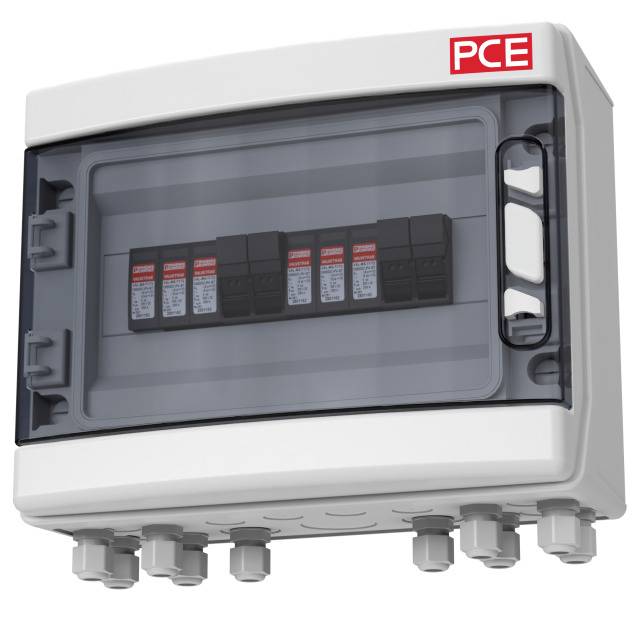

Type 1+2 system solution for PV systems with 2 MPP tracker, 1000V DC
Plastic housing (418x286x148mm) with transparent window for max. 18 division units
Number of MPP trackers: 2 / number of strings per MPP: 1-2
2x lightning current/surge arrester type 1+2 (PC)
2x DC circuit breakers 32A 1000V DC 2p
12x PV-Plug connector
2x M16 cable glands for earth conductor connection
ready wired
Protection system: IP65
This text is machine translated.
Plastic housing (418x286x148mm) with transparent window for max. 18 division units
Number of MPP trackers: 2 / number of strings per MPP: 1-2
2x lightning current/surge arrester type 1+2 (PC)
2x DC circuit breakers 32A 1000V DC 2p
12x PV-Plug connector
2x M16 cable glands for earth conductor connection
ready wired
Protection system: IP65
This text is machine translated.
