Name: Pfannenberg Enclosure thermostat FLZ 520 THERMOSTAT -20..+40°C 240 V AC 1 breaker (L x W x H) 36 x 40 x 72 mm 1 pc(s)
Brand: Pfannenberg
SKU: 2181587
Availability: BackOrder

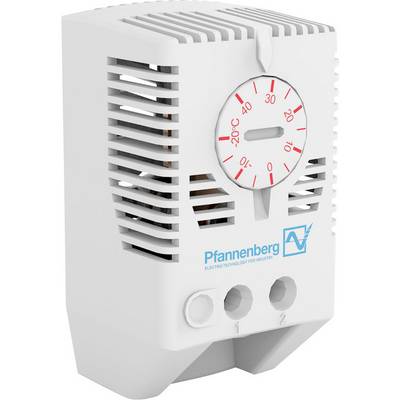

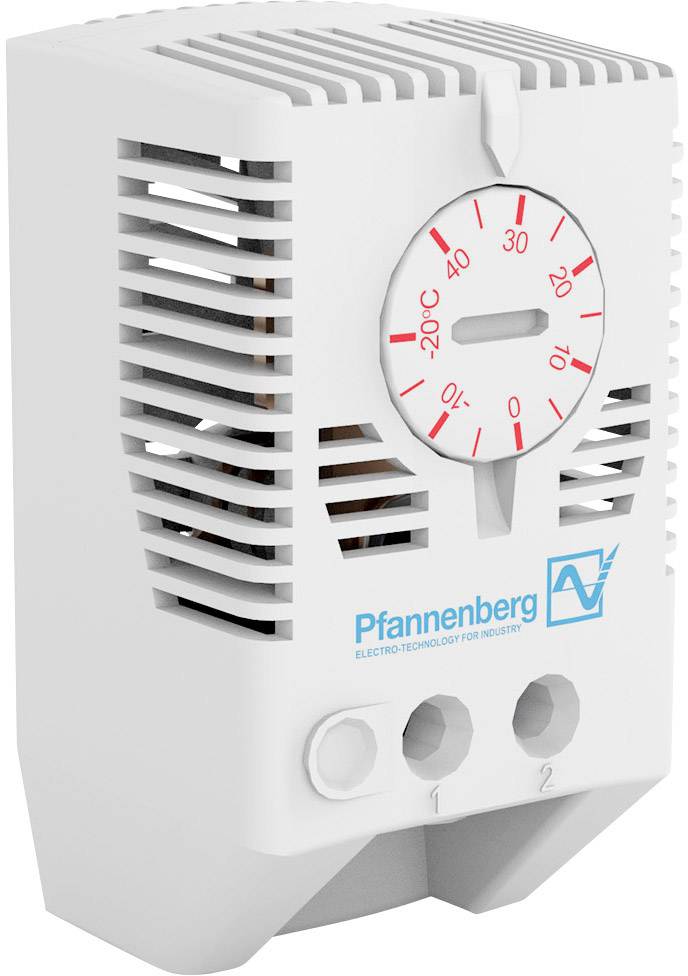

A white electric radiator by Pfannenberg with ventilation slots and a red temperature control dial on the front.

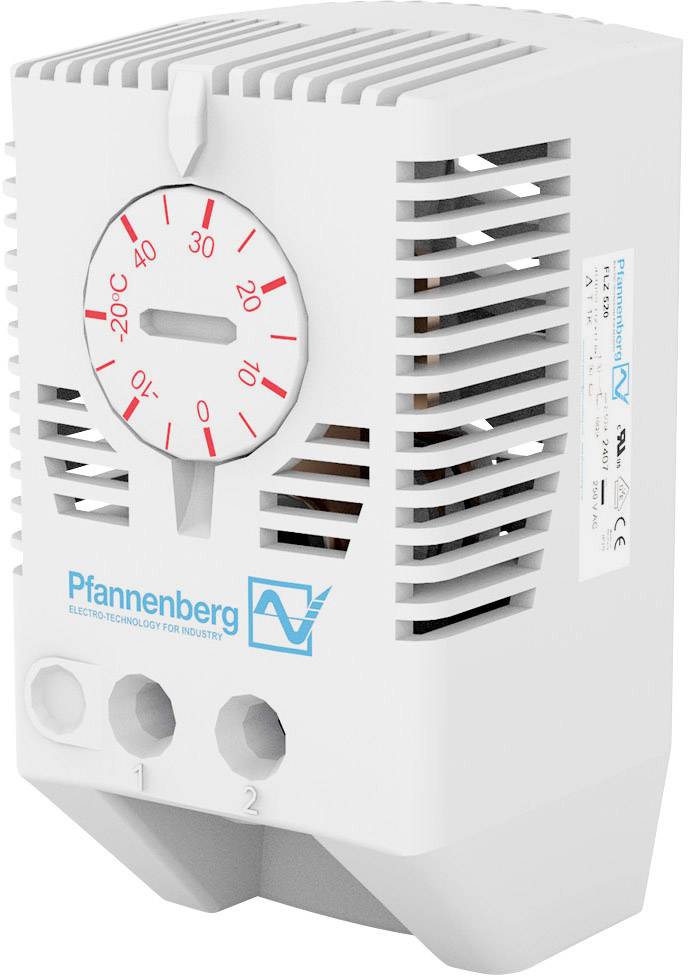

'Compact thermostat by Pfannenberg with white casing and red temperature selection dial. Adjustable from 0 to 60°C.'

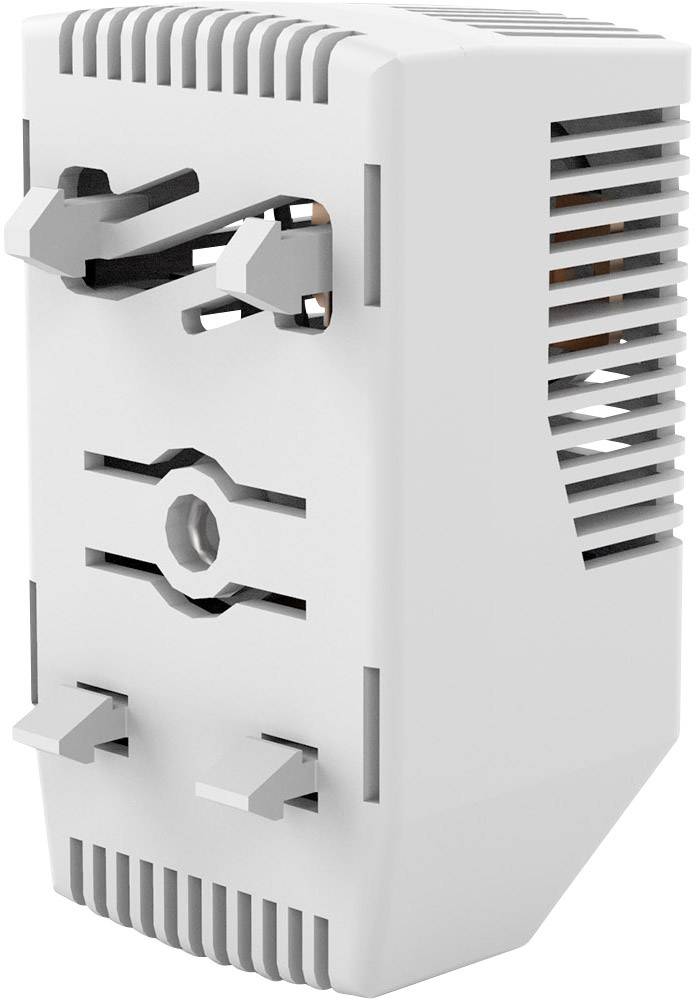

A white electric transformer with ventilation slots and multiple metal connections is shown.

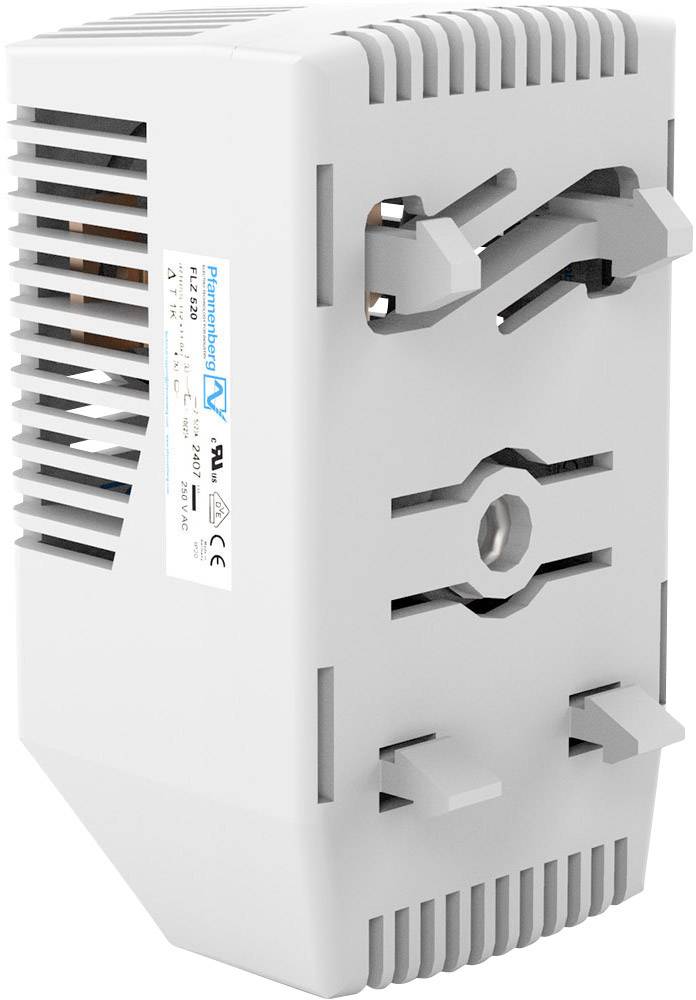

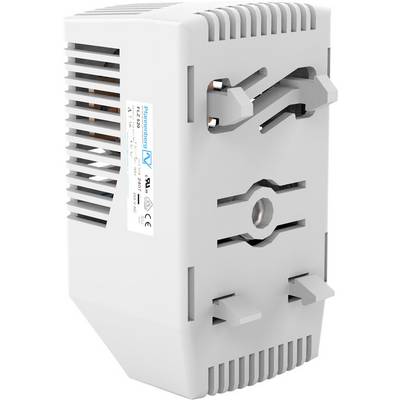

White, rectangular electronic device with ventilation slots and a mounting fixture on the side.

1/4

Product type

Enclosure thermostat

Connection

Screw terminal

Contact type

1 breaker

Switching voltage (max.)

240 V AC

Switching current (max.)

15 A

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 13 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 24.99 / piece)

€ 24.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: Enclosure thermostat

Type: FLZ 520 THERMOSTAT -20..+40°C

Connection: Screw terminal

Adjustment range (min.) (temperature): -20 °C

Temperature adjustment range (max.): +40 °C

Mounting type: 35mm section rail mount

Contact type: 1 breaker

Switching voltage (max.): 240 V AC

Switching current (max.): 15 A

Operating voltage: 240 V AC

Operating temperature (min.): -20 °C

Operating temperature (max.): 40 °C

Length: 36 mm

Width: 40 mm

Height: 72 mm

Dim: (L x W x H) 36 x 40 x 72 mm

UKCA: not relevant

Variants(All information include VAT, plus shipping costs)

Switching current (max.)

Switching voltage (max.)

Connection

Contact type

Product type

Operating voltage

Temperature adjustment range (max.)

Pfannenberg Enclosure thermostat FLZ 520 THERMOSTAT -20..+40°C 240 V AC 1 breaker (L x W x H) 36 x 40 x 72 mm 1 pc(s)

Item no:2181587

Dispatches on Fri 13 Nov

Conrad Electronic

This article

15 A

240 V AC

Screw terminal

1 breaker

Enclosure thermostat

240 V AC

+40 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 24.99^*

Pfannenberg Enclosure thermostat FLZ 510 THERM. 1K +20°..+80°C 250 V AC 1 change-over (L x W x H) 47.5 x 37 x 59.5 mm 1 pc(s)

Item no:2181595

Dispatches on Fri 13 Nov

Conrad Electronic

10 A

250 V AC

Screw terminal

1 change-over

Enclosure thermostat

250 V AC

+80 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 40.99^*

Pfannenberg Enclosure thermostat FLZ 510 THERM. 1K -20°..+40°C 250 V AC 1 change-over (L x W x H) 47.5 x 37 x 59.5 mm 1 pc(s)

Item no:2181582

Dispatches on Fri 13 Nov

Conrad Electronic

10 A

250 V AC

Screw terminal

1 change-over

Enclosure thermostat

250 V AC

+40 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 39.99^*

Pfannenberg Enclosure thermostat FLZ 510 THERM. 3K +20°..+80°C 250 V AC 1 change-over (L x W x H) 47.5 x 37 x 59.5 mm 1 pc(s)

Item no:2181585

Dispatches on Fri 13 Nov

Conrad Electronic

10 A

250 V AC

Screw terminal

1 change-over

Enclosure thermostat

250 V AC

+80 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 38.99^*

Pfannenberg Enclosure thermostat FLZ 510 THERM. 3K -20°..+40°C 250 V AC 1 change-over (L x W x H) 47.5 x 37 x 59.5 mm 1 pc(s)

Item no:2181584

Dispatches on Fri 13 Nov

Conrad Electronic

10 A

250 V AC

Screw terminal

1 change-over

Enclosure thermostat

250 V AC

+40 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 35.99^*

Pfannenberg Enclosure thermostat FLZ 520 THERMOSTAT +20..+80°C 240 V AC 1 breaker (L x W x H) 36 x 40 x 72 mm Piece 1 pc(s)

Item no:2181588

Dispatches on Fri 13 Nov

Conrad Electronic

15 A

240 V AC

Screw terminal

1 breaker

Enclosure thermostat

240 V AC

+80 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 25.99^*

Pfannenberg Enclosure thermostat FLZ 530 THERMOSTAT +20..+80°C 240 V AC 1 maker (L x W x H) 36 x 40 x 72 mm Piece 1 pc(s)

Item no:2181591

Dispatches on Fri 13 Nov

Conrad Electronic

15 A

240 V AC

Screw terminal

1 maker

Enclosure thermostat

240 V AC

+80 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 43.99^*

Pfannenberg Enclosure thermostat FLZ 530 THERMOSTAT -20..+40°C 240 V AC 1 maker (L x W x H) 36 x 40 x 72 mm 1 pc(s)

Item no:2181590

Dispatches on Fri 13 Nov

Conrad Electronic

15 A

240 V AC

Screw terminal

1 maker

Enclosure thermostat

240 V AC

+40 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 24.99^*

Pfannenberg Enclosure thermostat FLZ 542 THERMOSTAT O/O 0..60C 240 V AC 2 breakers (L x W x H) 38 x 59 x 80.5 mm Piece 1 pc(s)

Item no:2181593

Dispatches on Fri 13 Nov

Conrad Electronic

15 A

240 V AC

Screw terminal

2 breakers

Enclosure thermostat

240 V AC

+60 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 43.99^*

Pfannenberg Enclosure thermostat FLZ 543 THERMOSTAT S/S 0..60°C 240 V AC 2 makers (L x W x H) 38 x 59 x 80.5 mm 1 pc(s)

Item no:2181594

Available soon

Conrad Electronic

15 A

240 V AC

Screw terminal

2 makers

Enclosure thermostat

240 V AC

+60 °C

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 42.99^*

Documents & Downloads

Datasheet

Datasheet 2181587 Pfannenberg Enclosure thermostat FLZ 520 THERMOSTAT -20..+40°C 240 V AC 1 breaker (L x W x H) 36 x 40 x 72 mm 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2181587 Pfannenberg Enclosure thermostat FLZ 520 THERMOSTAT -20..+40°C 240 V AC 1 breaker (L x W x H) 36 x 40 x 72 mm 1 pc(s)

Description

The series of FLZ thermostats consists of three variants. They are designed as NC, NO and CO contacts. In combination with switch cabinet heaters, they are used for temperature control in the control cabinet. In combination with filter fans the additional energy, material and time saving and thus a better environmental balance. In sum, more safety is created in the production process, reduced energy consumption through demand-oriented use and an improvement in the efficiency of the controlled heaters and filter fans.
