Phoenix Contact 1405837 Network cable CAT 5e SF/UTP 4 x 0.14 mm² Blue 1 pc(s)
EAN:
Part number:
Item no:
Product type
Network cable
Specification
CAT 5e
Shielding
SF/UTP
No. of leads
4 x
Cross section (each core)
0.14 mm²
Datasheet (PDF)
Number
Total (1 m = € 26.05)
€ 52.09
plus VAT.
Highlights & Details
Network cable VS-M12FSEC-OE-93E-LI/2,0
Technical specifications
- Product type
Network cable
CAT 5e
SF/UTP
- No. of leads
4 x
- Cross section (each core)
0.14 mm²
- Cross section
4 x 0.14 mm²
- Cable features
Flexible
Simplex
Flame-retardant
Halogen-free
Oil-resistant
Common shield
- Outside Ø
6.40 mm
- Factory colour
Blue
- Max. frequency
100 MHz
- Content
1 pc(s)
- AWG max.
26
- Packaged
Yes
- Sold per metre
No
- Manufacturer part #
1405837
- Type
VS-M12FSEC-OE-93E-LI/2,0
- Insulation material
Polyethylene (PE)
- Min. temperature range (flexible installation)
-20 °C
- Max. temperature range (flexible installation)
+80 °C
- Min. temperature range (fixed installation)
-40 °C
- Max. temperature range (fixed installation)
+80 °C
Front mounting
48 V
2 m
Other
85-85 °C
-25-85 °C
V0
Other
Other
100
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 788024 Phoenix Contact 1405837 Network cable CAT 5e SF/UTP 4 x 0.14 mm² Blue 1 pc(s)
User & Safety Instructions
User & Safety Instructions 788024 Phoenix Contact 1405837 Network cable CAT 5e SF/UTP 4 x 0.14 mm² Blue 1 pc(s)

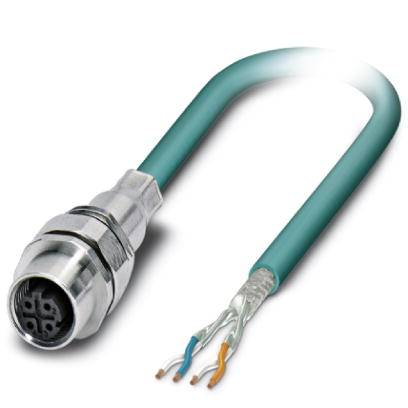

Description
Assembled Ethernet cable, CAT5e, shielded, 2-pair, AWG 26 stranded (7-wire), RAL 5021 (water blue), M12 flush-type socket, front/screw mounting with M16 thread on free conductor end, line, length 2 m
Hints
Special order, no right of withdrawal.
