Buy Phoenix Contact 1405866 Network cable CAT 5e SF/UTP 4 x 0.14 mm² Blue 1 pc(s) | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

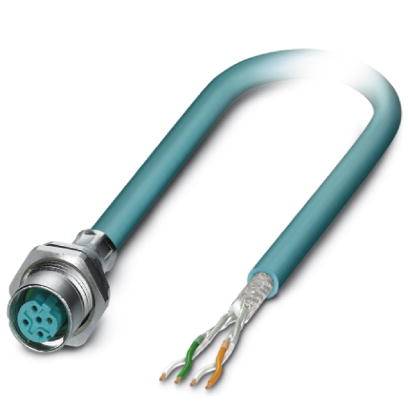

A M12 connector plug with stripped, multi-coloured wires. Suitable for industrial automation and sensor technology.

A M12 connector plug with stripped, multi-coloured wires. Suitable for industrial automation and sensor technology.

Phoenix Contact

Product type

Network cable

Specification

CAT 5e

Shielding

SF/UTP

No. of leads

4 x

Cross section (each core)

0.14 mm²

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 6 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 46.99 / piece)

€ 46.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Network cable VS-M12FSBP-OE-93E-LI/2,0

Technical specifications

Product type: Network cable

: CAT 5e

: SF/UTP

No. of leads: 4 x

Cross section (each core): 0.14 mm²

Cross section: 4 x 0.14 mm²

Cable features: Flexible
Simplex
Flame-retardant
Halogen-free
Oil-resistant
Common shield

Outside Ø: 6.40 mm

Factory colour: Blue

Max. frequency: 100 MHz

Content: 1 pc(s)

AWG max.: 26

Packaged: Yes

Sold per metre: No

Manufacturer part #: 1405866

Type: VS-M12FSBP-OE-93E-LI/2,0

Insulation material: Polyethylene (PE)

Min. temperature range (flexible installation): -20 °C

Max. temperature range (flexible installation): +80 °C

Min. temperature range (fixed installation): -40 °C

Max. temperature range (fixed installation): +80 °C

: SF/FTP

: 2 m

: Other

: IP67

: FALSE

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 788176 Phoenix Contact 1405866 Network cable CAT 5e SF/UTP 4 x 0.14 mm² Blue 1 pc(s)

User & Safety Instructions

User & Safety Instructions 788176 Phoenix Contact 1405866 Network cable CAT 5e SF/UTP 4 x 0.14 mm² Blue 1 pc(s)

Description

Assembled Ethernet cable, CAT5e, shielded, 2-pair, AWG 26 stranded (7-wire), RAL 5021 (water blue), M12 flush-type socket, rear/screw mounting with M16 thread on free conductor end, line, length 2 m

Description

Assembled Ethernet cable, CAT5e, shielded, 2-pair, AWG 26 stranded (7-wire), RAL 5021 (water blue), M12 flush-type socket, rear/screw mounting with M16 thread on free conductor end, line, length 2 m
